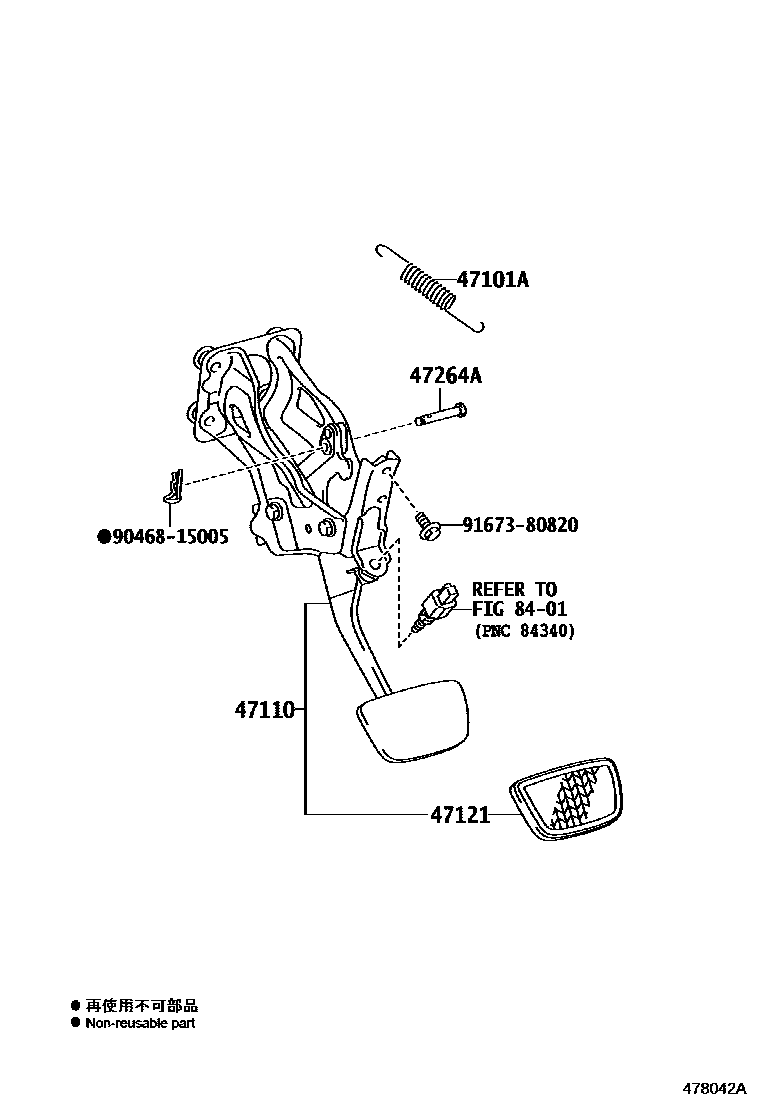

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iAWS21#,GWS214201212-201804

main90507-13009iARS210,GRS21#201509-201804

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24100iARS210,GRS21#201509-201804

main47110-24110iARS210..ATHS201708-201804

main47110-24110iARS210..ATHS201708-201804

main47110-24120iAWS21#,GWS214201509-201804

sub47110-24330

main47110-24130iAWS210,211..ATHS201708-201804

main47110-24130iAWS210,211..ATHS201708-201804

main47110-30560iGRS21#201212-201509

sub47110-24100

main47110-30600iAWS21#,GWS214201301-201509

sub47110-24120

47121PAD, BRAKE PEDAL

main47121-30080iAWS21#,GRS21#,GWS214201212-201804

main47121-30090iARS210,AWS210,211..ATHS201708-201804

main47121-30090iARS210,AWS210,211..ATHS201708-201804

47264APIN(FOR PUSH ROD)

main90249-06180iARS210,GRS21#201212-201804

main90249-10199iAWS21#,GWS214201301-201804

8401

9046815005

main90468-15005

9167380820

main91673-80820

7 parts on this diagram · 2 diagrams in section
