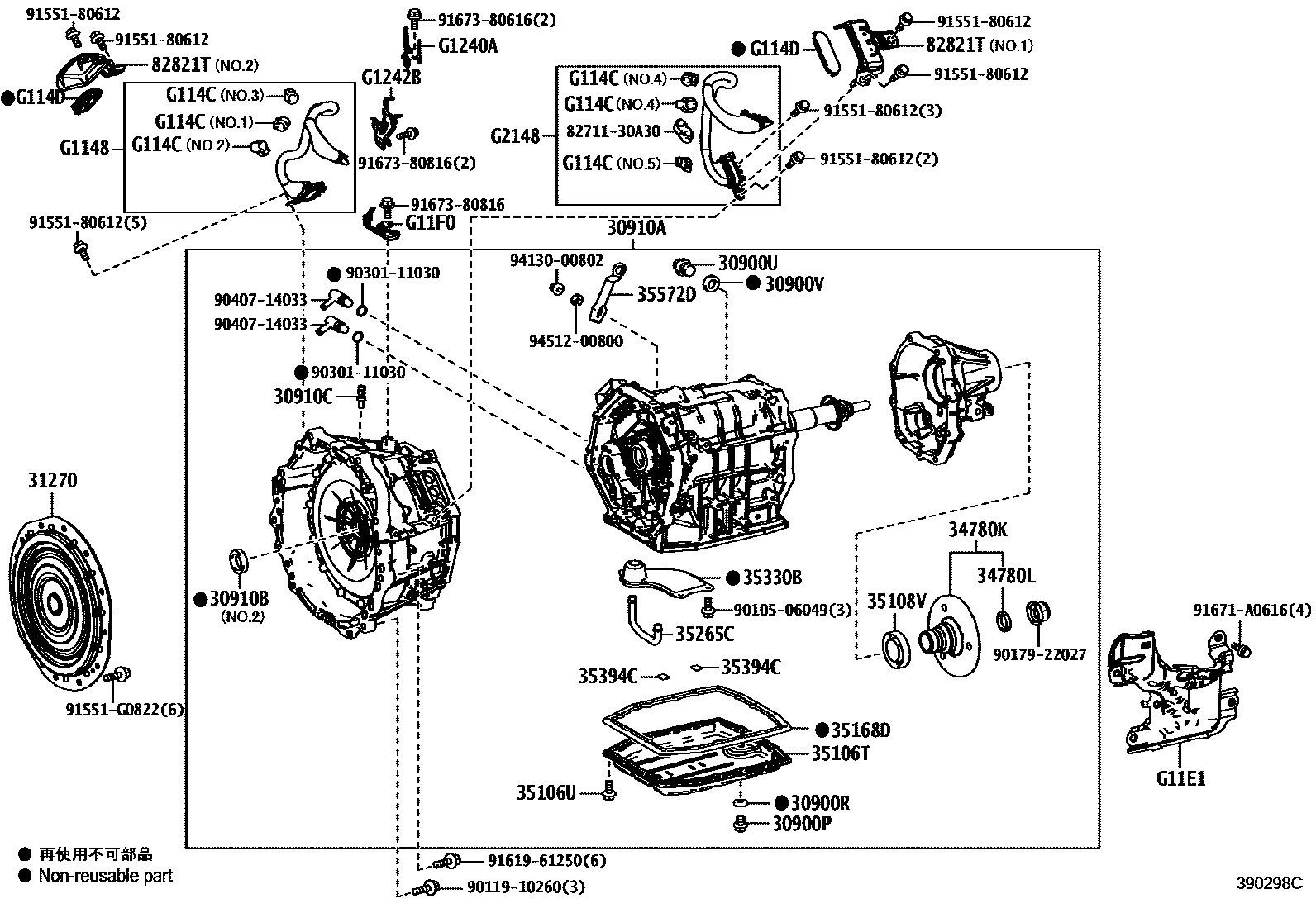

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900PPLUG, DRAIN(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900UPLUG, REFILL(HEV)
30900VGASKET, REFILL PLUG(HEV)
30910ATRANSMISSION ASSY, HYBRID VEHICLE
30910BSEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSMISSION ASSY)
30910CPLUG SUB-ASSY, BREATHER(FOR TRANSMISSION)
31270DAMPER ASSY, TRANSMISSION INPUT
34780KYOKE ASSY, FLANGE
34780LSEAL, TYPE V OIL (FOR FRANGE YOKE)
35106TPAN SUB-ASSY, TRANSMISSION OIL
35106UBOLT (FOR TRANSMISSION OIL PAN)
35108VSEAL, TYPE T OIL (FOR EXTENSION HOUSING)
35168DGASKET, TRANSMISSION OIL PAN
35265CTUBE, OIL COOLER RETURN
35330BSTRAINER ASSY, OIL
35394CMAGNET, OIL CLEANER
35572DLEVER, TRANSMISSION CONTROL SHAFT
82821TCOVER, CONNECTOR
G114CPROTECTOR, MOTOR CABLE
G114DCAP, MOTOR CABLE TERMINAL
G11E1INSULATOR, MOTOR HEAT
G11F0COVER ASSY, TRANSAXLE UPPER
G1240BRACKET ASSY, INVERTER MOTOR CABLE
G1240ABRACKET ASSY, INVERTER MOTOR CABLE
G1242BRACKET, ENGINE MOTOR CABLE CLAMP
G1242BBRACKET, ENGINE MOTOR CABLE CLAMP
8271130A30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9010506049
9011910260
9017922027
9030111030
9040714033
9155180612
91551G0822
9161961250
91671A0616
9167380616
9167380816
9413000802
9451200800
43 parts on this diagram · 6 diagrams in section
