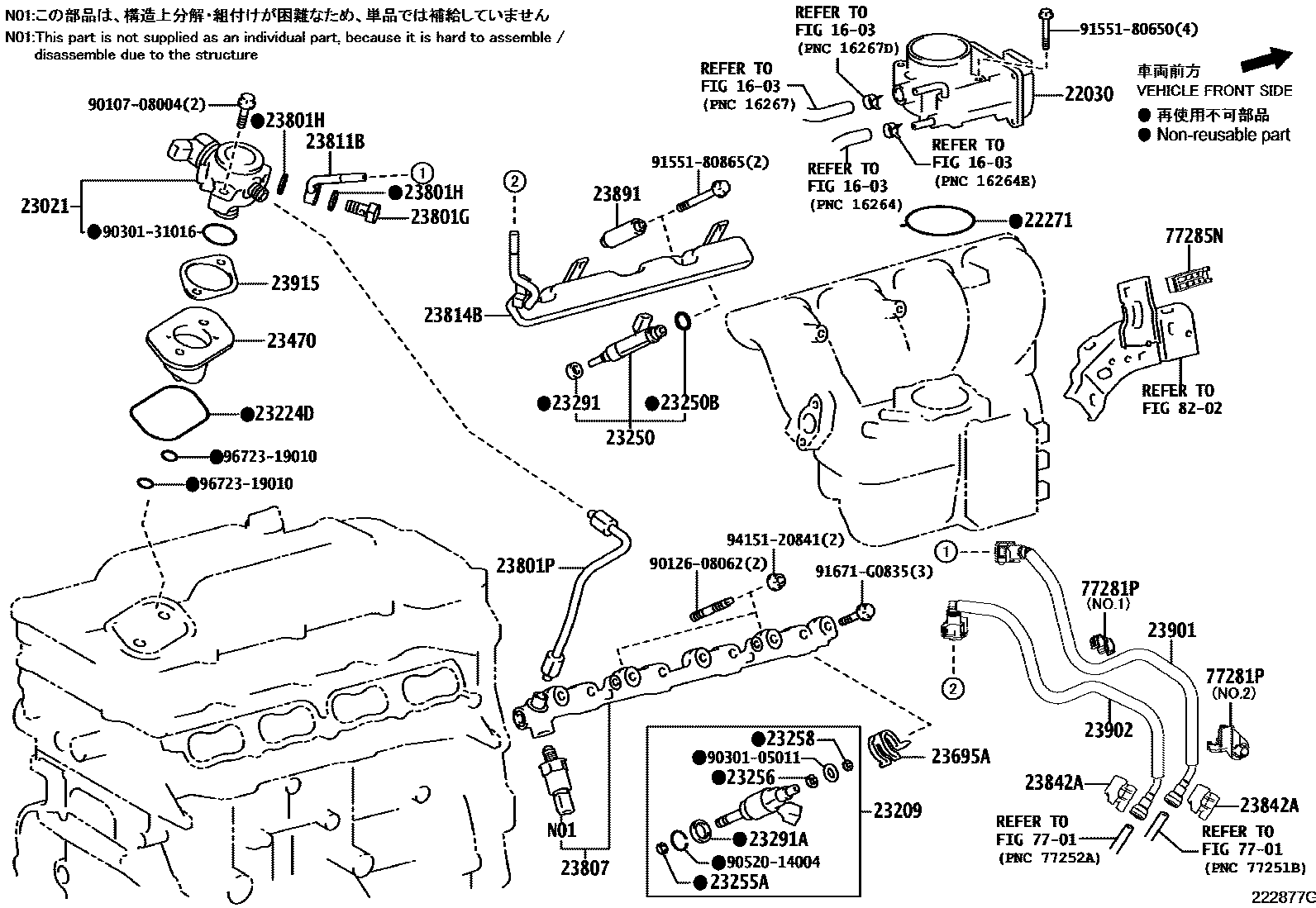

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i4GRFSE..GRS210,211201212-201509

main22030-31040i2GRFSE..GRS214201509-201804

main22030-31070i2GRFXE..GWS214201309-201509

main22030-36030i2ARFSE..AWS21#201301-201509

main22030-36050i8ARFTS..ARS210201509-201804

22271GASKET, THROTTLE BODY

main22271-31020i2GR#..GRS214,GWS214201212-201509

main22271-31030i4GRFSE..GRS210,211201212-201509

main22271-36030i2ARFSE..AWS21#201301-201509

main22271-36040i8ARFTS..ARS210201509-201804

23021PUMP SUB-ASSY, FUEL W/SEAL

main23021-36010i2ARFSE..AWS21#201301-201509

main23021-36050i2ARFSE..AWS21#201709-201804

sub23021-38020

23209INJECTOR SET, FUEL

main23209-31150-01×4i2ARFSE..AWS21#201301-201509

main23209-31150-02×4i2ARFSE..AWS21#201509-201804

main23209-31150-03×4i2ARFSE..AWS21#201301-201509

23224GASKET, FUEL PUMP SPACER, RH

main23224-31010i2GRFXE..GWS214201509-201804

23224DGASKET, FUEL PUMP SPACER

main23224-36010i2ARFSE..AWS21#201301-201509

main23224-36020i8ARFTS..ARS210201509-201804

23250INJECTOR ASSY, FUEL

main23209-31070×6i2GRFSE..GRS214201212-201509

main23209-39057-A0×6i4GRFSE..GRS210,211201509-201804

MARK BLACK

main23209-39057-B0×6i4GRFSE..GRS210,211201212-201509

MARK BROWN

main23209-39155-A0×6i2GRFSE..GRS214201212-201509

main23209-39155-B0×6i2GRFSE..GRS214201212-201509

main23209-39155-C0×6i2GRFSE..GRS214201212-201509

main23209-39155-D0×6i2GRFSE..GRS214201509-201804

main23209-39275×4i2ARFSE..AWS21#201301-201509

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×6i2GRFXE..GWS214201509-201804

main90301-06017×6i2GRFSE..GRS214201212-201509

main90301-06018×6i4GRFSE..GRS210,211201509-201804

main90301-07037×4i2ARFSE..AWS21#201301-201509

23255ASEAL, FUEL INJECTOR

main23255-31010×12i2GRFSE,4GRFSE..GRS21#201212-201509

main23255-31020×6i2GRFXE..GWS214201309-201509

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-31010×6i2GRFXE..GWS214201509-201804

main23256-74010×6i2GRFSE,4GRFSE..GRS21#201509-201804

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011×6i2GRFSE,4GRFSE..GRS21#201212-201509

main23258-31010×4i2GRFXE..GWS214201509-201804

main23258-36010×4i8ARFTS..ARS210201509-201804

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFXE..GWS214201309-201509

main23291-28020×4i2ARFSE,8ARFTS..ARS210,AWS21#201509-201804

main23291-31011×6i2GRFSE,4GRFSE..GRS21#201509-201804

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i2GRFXE..GWS214201509-201804

23470LIFTER ASSY, FUEL PUMP

main23460-36010i2ARFSE..AWS21#201301-201509

main23470-25010i2ARFSE..AWS21#201711-201804

main23470-31010i2GRFXE..GWS214201309-201509

main23470-36020i8ARFTS..ARS210201509-201804

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i2GRFSE,4GRFSE..GRS21#201212-201509

main23695-31020×6i2GRFXE..GWS214201509-201804

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12041i2ARFSE..AWS210201301-201312

23801HGASKET(FOR FUEL PIPE)

main23232-41081i2ARFSE..AWS21#201312-201409

main90430-12026i2ARFSE..AWS21#201410-201509

main90430-13006×2i2ARFSE..AWS210201301-201312

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31200i2GRFXE..GWS214201509-201804

main23801-36020i2ARFSE..AWS21#201301-201509

main23801-36031i8ARFTS..ARS210201509-201804

23807PIPE SUB-ASSY, FUEL DELIVERY

main23800-36010i2ARFSE..AWS210201301-201311

main23800-36011i2ARFSE..AWS21#201509-201804

main23800-36050i8ARFTS..ARS210201509-201804

sub23800-36020

sub23801-36110

main23807-31062i2GRFSE..GRS214201212-201411

sub23807-31190

main23807-31140i2GRFXE..GWS214201309-201509

main23807-31150i2GRFSE..GRS214201411-201509

23811BPIPE, FUEL, NO.1

main23811-31080i2GRFXE..GWS214201509-201804

main23811-36020i2ARFSE..AWS210201301-201304

main23811-36030i2ARFSE..AWS210201304-201312

main23811-36040i2ARFSE..AWS21#201312-201506

main23811-36041i2ARFSE..AWS21#201509-201804

23814BPIPE, FUEL DELIVERY

main23800-36040i8ARFTS..ARS210201509-201804

main23814-36060i2ARFSE..AWS21#201301-201509

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020×2i2ARFSE..AWS21#201509-201804

main23842-28010×2i8ARFTS..ARS210201509-201804

main23842-38010i2GRFXE..GWS214201309-201509

23891SPACER, FUEL DELIVERY

main23891-36020×2i2ARFSE..AWS21#201301-201509

main23891-36030×2i8ARFTS..ARS210201509-201804

23901TUBE SUB-ASSY, FUEL

main23901-31011i2GRFSE,4GRFSE..GRS21#201212-201411

main23901-31270i2GRFXE..GWS214201309-201509

main23901-31310i2GRFSE,4GRFSE..GRS21#201411-201509

main23901-36090i2ARFSE..AWS210201301-201312

main23901-36091i2ARFSE..AWS21#201312-201509

main23901-36190i8ARFTS..ARS210201509-201804

23902TUBE SUB-ASSY, FUEL

main23902-31012i2GRFSE..GRS214201509-201804

main23902-31040i2GRFXE..GWS214201309-201509

main23902-36010i2ARFSE..AWS21#201301-201509

main23902-36070i8ARFTS..ARS210201509-201804

23915INSULATOR, FUEL PUMP

main23915-31010i2ARFSE..AWS21#201301-201509

main23915-46011i2GRFSE,4GRFSE..GRS21#201212-201509

7701

77281PCLAMP, FUEL HOSE

main77281-30120×2iGWS214201309-201509

main77281-30150iAWS21#201301-201509

main77281-50040iAWS21#201509-201804

main77281-78020iARS210201509-201804

77285NCLAMP, FUEL TUBE, NO.1

main77285-30340iAWS21#201301-201509

main77285-30380iARS210,AWS21#201509-201804

8202

9010708004

main90107-08004

9012608062

main90126-08062

9030105011

main90301-05011

9030131016

main90301-31016

9052014004

main90520-14004

9155180650

main91551-80650

9155180865

main91551-80865

91671G0835

main91671-G0835

9415120841

main94151-20841

9672319010

main96723-19010

41 parts on this diagram · 7 diagrams in section
