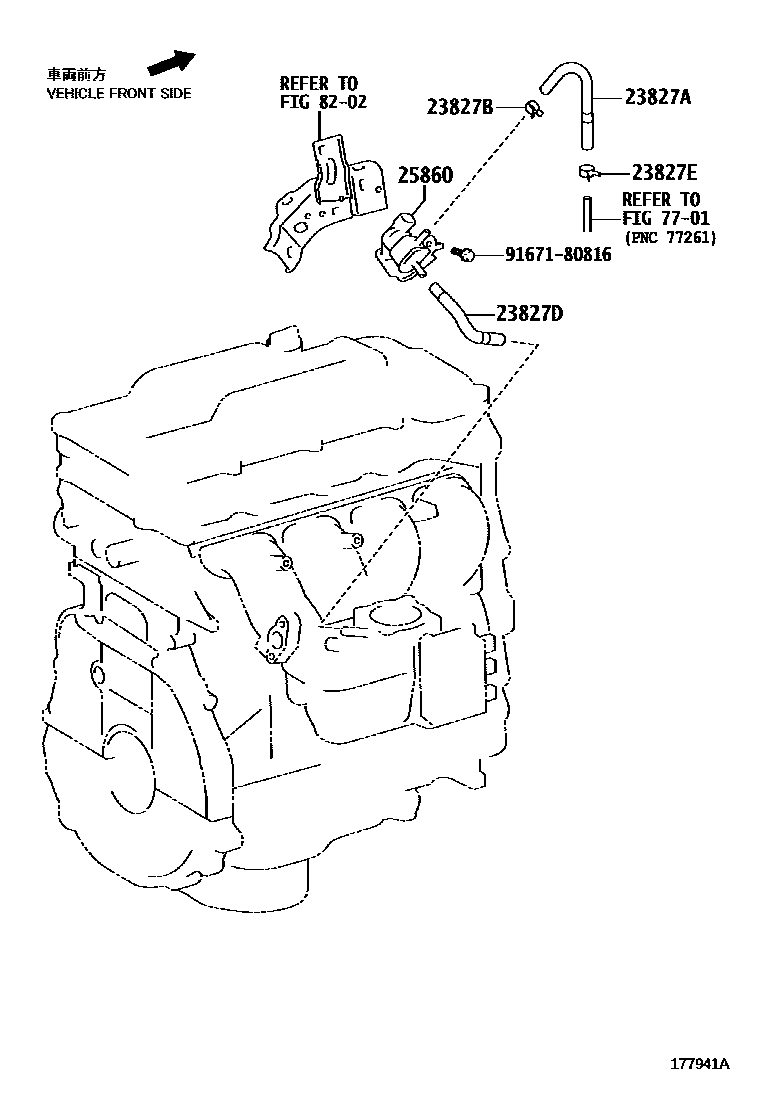

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31150i2GRFSE,4GRFSE..GRS21#201509-201804

main23827-31160i2GRFXE..GWS214201309-201509

main23827-36110i2ARFSE..AWS21#201301-201509

main23827-36150i8ARFTS..ARS210201509-201804

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2GRFXE..GWS214201309-201509

main96132-41500i2GRFSE,4GRFSE..GRS21#201212-201509

main96132-51300i2ARFSE..AWS21#201509-201804

main96136-42201i8ARFTS..ARS210201509-201804

23827DHOSE, FUEL VAPOR FEED, NO.2

main23827-36120i2ARFSE..AWS21#201301-201509

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2ARFSE..AWS21#201301-201509

main96132-51300i2GR#,4GRFSE..GRS21#,GWS214201212-201509

main96137-41901i8ARFTS..ARS210201509-201804

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i2GRFSE,4GRFSE..GRS21#201212-201509

main25860-31090i2GRFXE..GWS214201309-201509

main25860-36080i2ARFSE..AWS21#201509-201804

7701

8202

9167180816

main91671-80816

8 parts on this diagram · 4 diagrams in section
