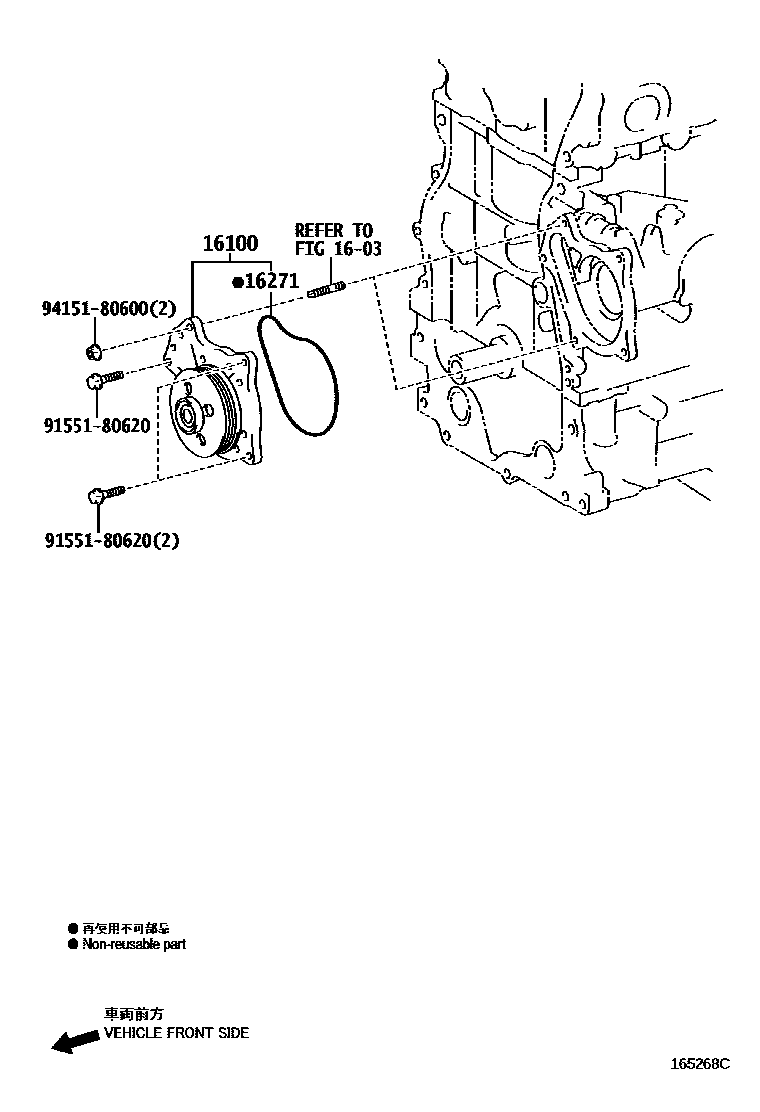

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GR#,4GRFSE..GRS21#,GWS214201212-201804

main16100-39575i2ARFSE..AWS21#201301-201804

main16100-39595i8ARFTS..ARS210201509-201804

16271GASKET, WATER PUMP

main16271-31020i2GR#,4GRFSE..GRS21#,GWS214201212-201804

main16271-36030i2ARFSE..AWS21#201301-201804

main16271-36040i8ARFTS..ARS210201509-201804

9155180620

main91551-80620

9415180600

main94151-80600

5 parts on this diagram · 4 diagrams in section
