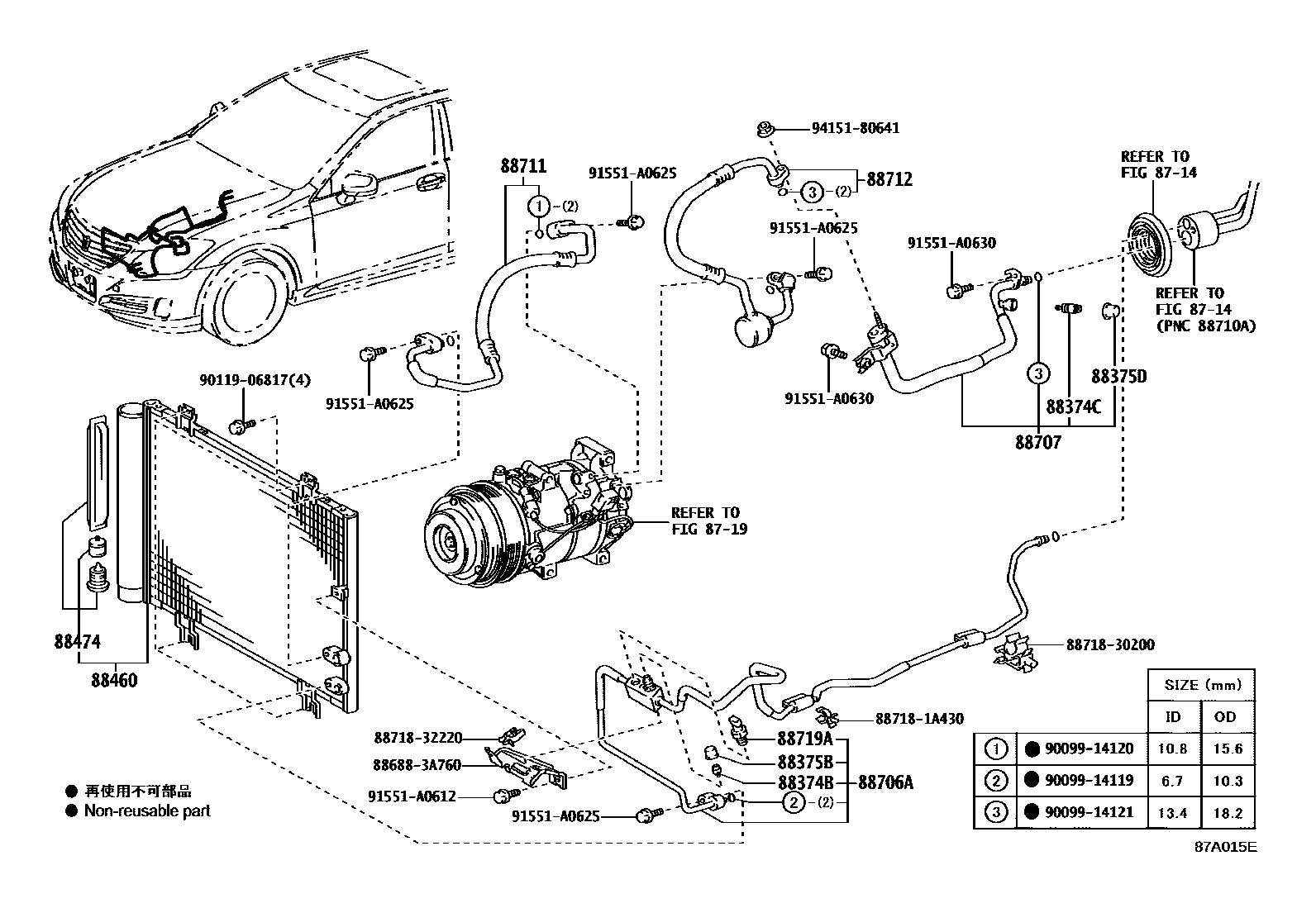

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1����---��������� 0002 1����---��������� 0003 1����---��������� 0004 1����---��������� 0005 1����---��������� 0006 1�� 0007 1��

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGRS20#,GWS204..CBU201002-201212

88374CVALVE, SERVICE, NO.2

main88374-30010iGRS20#..CBU201002-201212

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGRS20#,GWS204200802-201002

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGRS20#..CBU201002-201212

88460CONDENSER ASSY, COOLER

main88460-30A80iGRS20#200802-201002

main88460-30B00iGWS204200805-201002

88474DRYER, COOLER

main88474-17010iGRS20#..CBU201002-201212

main88474-47020iGWS204201002-201212

88706ATUBE SUB-ASSY, LIQUID, A

main88706-3A490iGRS20#..ATH,ROY200802-201002

main88706-3A500iGRS202..ROYG200802-201002

main88706-3A520supersedes 88706-3A530iGWS204201002-201212

main88706-3A540iGRS201,203..ROY200802-201002

88707PIPE SUB-ASSY, SUCTION

main88707-30840iGRS20#..ATH,ROY200802-201002

main88707-30850iGRS202..ROYG200802-201002

main88707-30860iGRS201,203..ROY..CBU201002-201212

main88707-30870supersedes 88707-30880iGWS204201002-201212

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-3A630iGWS204200805-201002

main88711-3A650iGRS20#200802-201002

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-30220iGWS204200805-201002

main88712-30240iGRS20#..CBU201002-201212

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGRS20#,GWS204..CBU201002-201212

886883A760BRACKET, COOLER DIAPHRAGM

main88688-3A760

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

8871830200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30200

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

25 parts on this diagram · 7 diagrams in section
