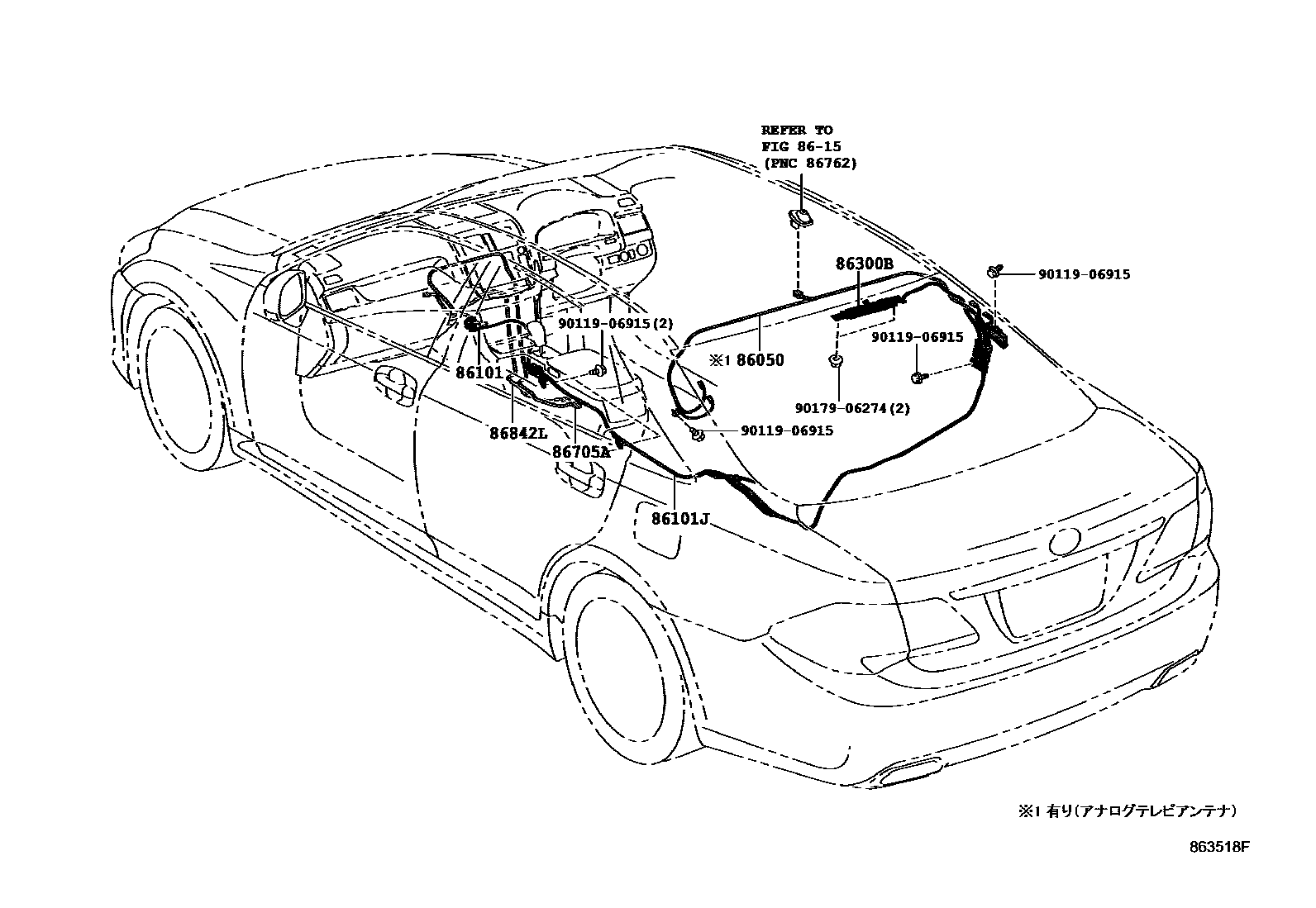

ANTENNA

0001 1 0002 1�������������� 0003 1

86050ANTENNA ASSY, TELEVISION

main86050-30170iGRS200,201200802-200904

86101CORD SUB-ASSY, ANTENNA

main86101-30C50iGRS200,201200802-200904

main86101-30C61iGRS200..ROY200904-201002

main86101-30F90iGRS202,203,204,GWS204..CBU201002-201212

main86101-30C60iGRS200,201200802-200904

sub86101-30C61

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-30C30iGRS200,201200904-201002

main86101-30F70iGRS202,203,204,GWS204..CBU201002-201212

8615

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-30B30iGRS200..ROY200904-201002

main86300-30B80iGRS202,203,204,GWS204..CBU201002-201212

86705ACORD SUB-ASSY, TELEPHONE ANTENNA

main86705-30200iGRS200,201200904-201002

main86705-30200iGRS202,GWS204..HBD,ROYG200810-201002

main86705-30230iGRS200,201200802-200809

sub86705-30200

86842LWIRE, NAVIGATION, NO.1

main86842-30230iGRS202,203,204,GWS204200802-201002

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 3 diagrams in section
