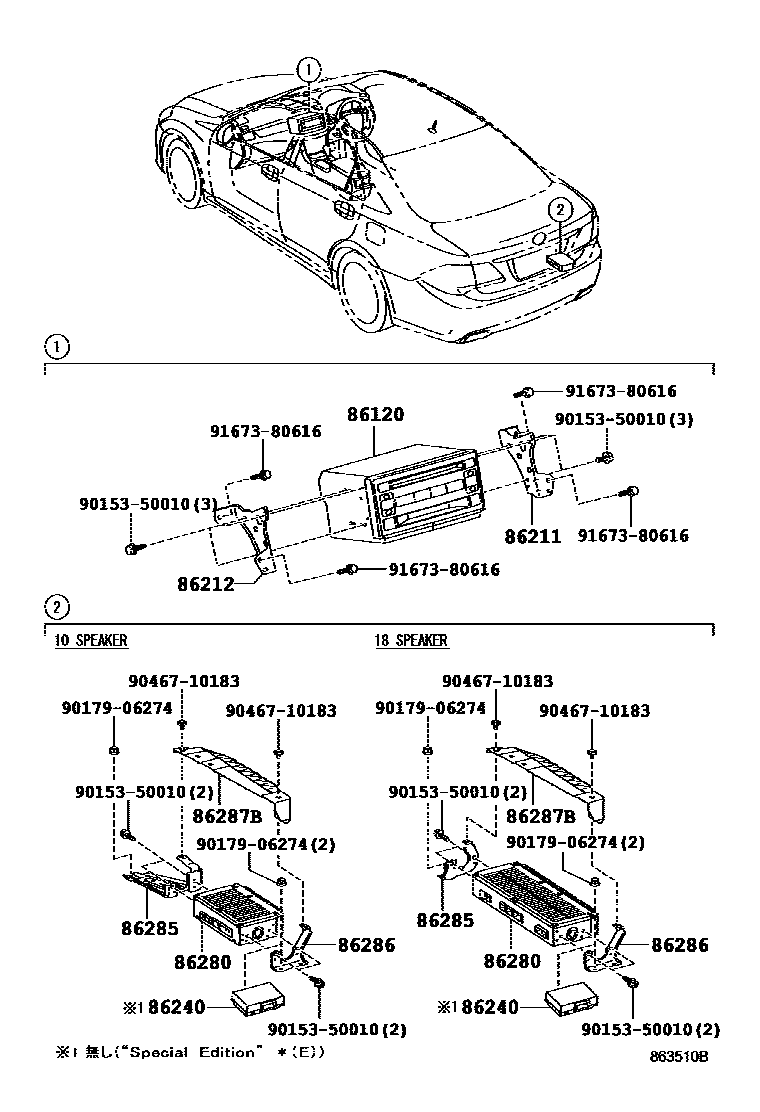

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1������

86120RECEIVER ASSY, RADIO

main86120-30F30iGRS200,201..CBU201002-201212

main86120-30F44supersedes 86120-30F44iGRS202,203200904-200908

sub86120-30F45

main86120-30J24supersedes 86120-30J24iGRS204200904-200908

sub86120-30J25

86211BRACKET, RADIO, NO.1

main86211-30340supersedes 86211-30330iGRS202,203,204,GWS204..CBU201002-201212

86212BRACKET, RADIO, NO.2

main86212-30310supersedes 86212-30300iGRS202,203,204,GWS204200802-201002

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-30030supersedes 86240-30020iGWS204201002-201212

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-30560iGRS202,203,204200802-201002

main86280-30570iGRS202,203,204200802-200904

main86280-30571iGRS20#200905-201002

sub86280-30641

sub86012-30110

main86280-30590supersedes 86280-30580iGWS204200805-201002

sub86280-30661

sub86012-30110

main86280-30640supersedes 86280-30630iGRS202,203,204,GWS204..CBU201002-201212

sub86280-30641

sub86012-30110

main86280-30650supersedes 86280-30580iGWS204201002-201212

main86280-30660supersedes 86280-30580iGWS204201002-201212

sub86280-30661

sub86012-30110

86285BRACKET, AMPLIFIER, NO.1

main86285-30340supersedes 86285-30330iGRS202,203,204,GWS204..CBU201002-201212

86286BRACKET, AMPLIFIER, NO.2

main86286-30090iGRS202,203,204,GWS204200802-201002

86287BCOVER, AMPLIFIER

main86287-30010iGRS202,203,204,GWS204200802-201002

9015350010

main90153-50010

9017906274

main90179-06274

9046710183

main90467-10183

9167380616

main91673-80616

12 parts on this diagram · 4 diagrams in section
