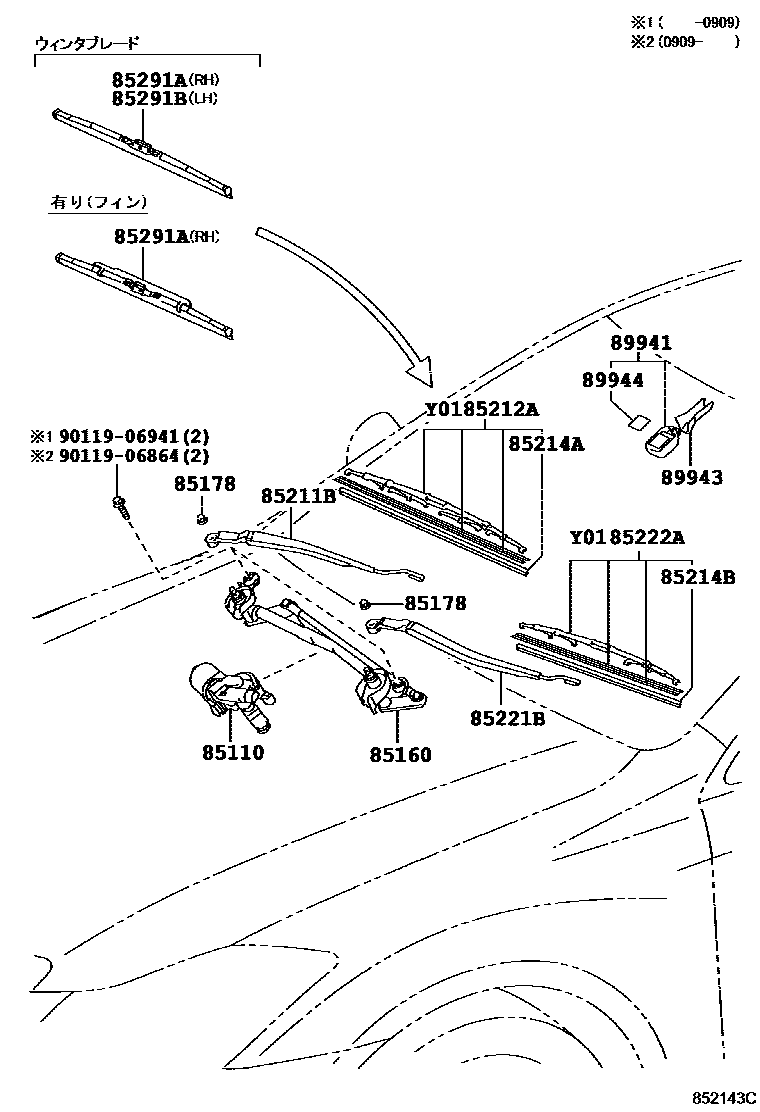

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30580iGRS20#,GWS204..CBU201002-201212

85160LINK ASSY, WINDSHIELD WIPER

main85150-30670iGRS20#,GWS204..CBU201002-201212

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iGRS20#,GWS204..CBU200802-201212

85211BARM, FRONT WIPER, RH

main85211-30750iGRS20#,GWS204200802-201002

85212ABLADE, FR WIPER, RH

main85212-33240iGRS20#,GWS204..CBU200802-201212

85214ARUBBER, WIPER, RH

main85214-30380iGRS20#,GWS204..CBU200802-201212

85214BRUBBER, WIPER, LH

main85214-30400iGRS20#,GWS204..CBU201002-201212

sub85214-33180

main85214-33180iGRS20#,GWS204..CBU200802-201002

85221BARM, FRONT WIPER, LH

main85221-30650iGRS20#,GWS204200802-201002

85222ABLADE, FR WIPER, LH

main85222-30590iGRS20#,GWS204..CBU200802-201212

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-30060iGRS20#,GWS204200802-201002

main85291-50060iGRS20#,GWS204200802-201002

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-22080iGRS20#,GWS204..CBU201002-201212

main85291-33050iGRS20#,GWS204200802-201002

89941SENSOR, RAIN

main89941-30020iGRS202,203,204,GWS204200802-201002

main89941-30020iGWS204201002-201212

89943COVER, RAIN SENSOR

main89943-22030iGRS202,203,204,GWS204200802-201002

main89943-22030iGWS204201002-201212

89944TAPE, RAIN SENSOR

main89944-42010iGRS202,203,204,GWS204200802-201002

main89944-42010iGWS204201002-201212

9011906864

main90119-06864

9011906941

main90119-06941

16 parts on this diagram · 1 diagram in section
