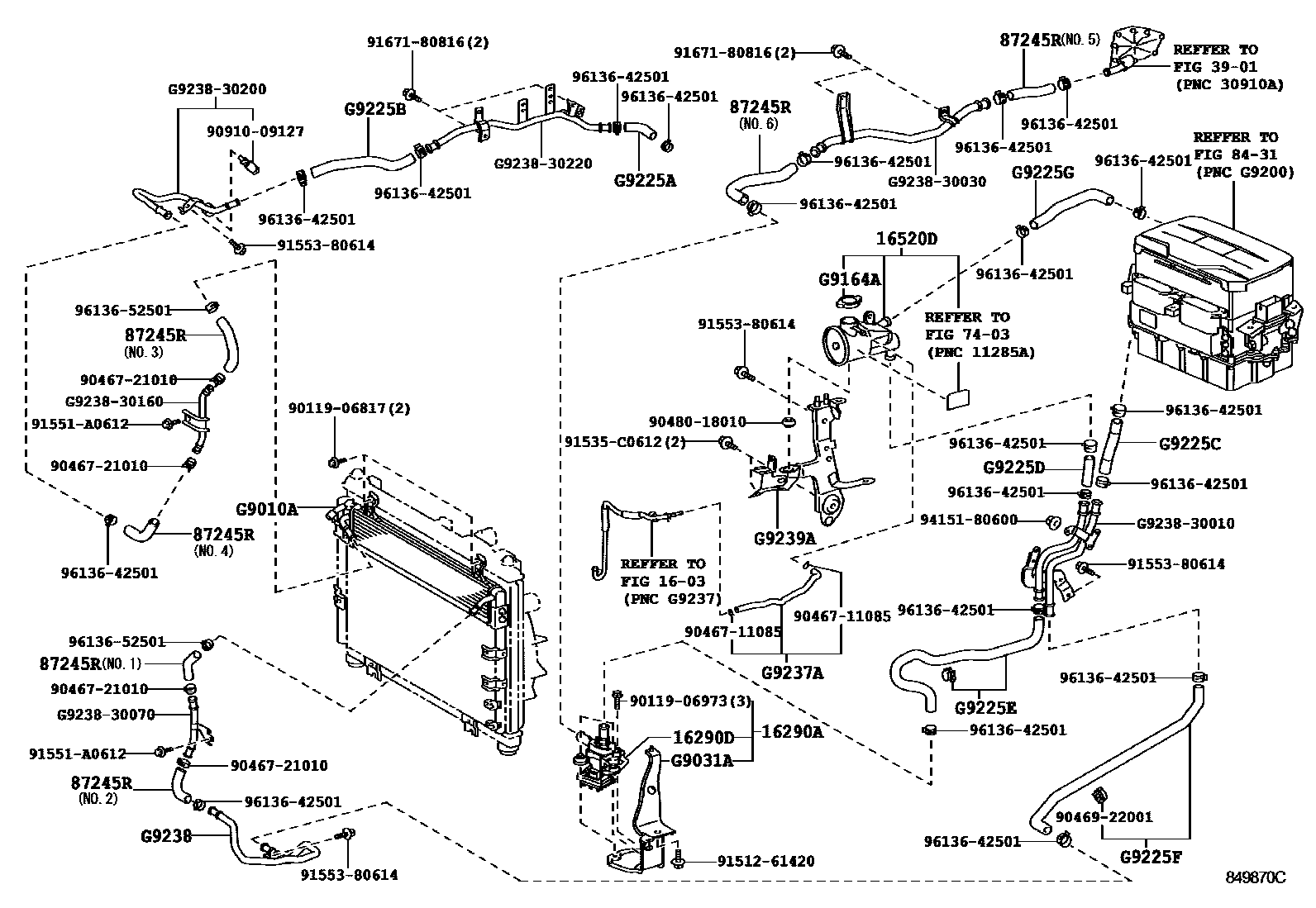

INVERTER COOLING
16290APUMP ASSY, WATER W/MOTOR & BRACKET
16290DPUMP ASSY, WATER W/MOTOR
16520DFILLER ASSY, WATER
87245RHOSE, WATER
G9010ARADIATOR ASSY
G9031ABRACKET SUB-ASSY, HV WATER PUMP
G9164ACAP, INVERTER RADIATOR
G9225AHOSE, INVERTER COOLING, NO.7
G9225BHOSE, INVERTER COOLING, NO.8
G9225CHOSE, INVERTER COOLING, NO.9
G9225DHOSE, INVERTER COOLING, NO.10
G9225EHOSE, INVERTER COOLING, NO.11
G9225FHOSE, INVERTER COOLING, NO.12
G9225GHOSE, INVERTER COOLING, NO.13
G9237AHOSE, INVERTER DRAIN
G9238PIPE, INVERTER COOLING
G9239ABRACKET, INVERTER COOLING PIPE
9011906817
main90119-06817
9011906973
main90119-06973
9046711085
main90467-11085
9046721010
main90467-21010
9046922001
main90469-22001
9048018010
main90480-18010
9091009127
main90910-09127
9151261420
main91512-61420
91535C0612
main91535-C0612
91551A0612
main91551-A0612
9155380614
main91553-80614
9167180816
main91671-80816
9415180600
main94151-80600
9613642501
main96136-42501
9613652501
main96136-52501
G923830010PIPE, INVERTER COOLING
mainG9238-30010
G923830030PIPE, INVERTER COOLING
mainG9238-30030
G923830070PIPE, INVERTER COOLING
mainG9238-30070
G923830160PIPE, INVERTER COOLING
mainG9238-30160
G923830200PIPE, INVERTER COOLING
mainG9238-30200
G923830220PIPE, INVERTER COOLING
mainG9238-30220
38 parts on this diagram · 1 diagram in section
