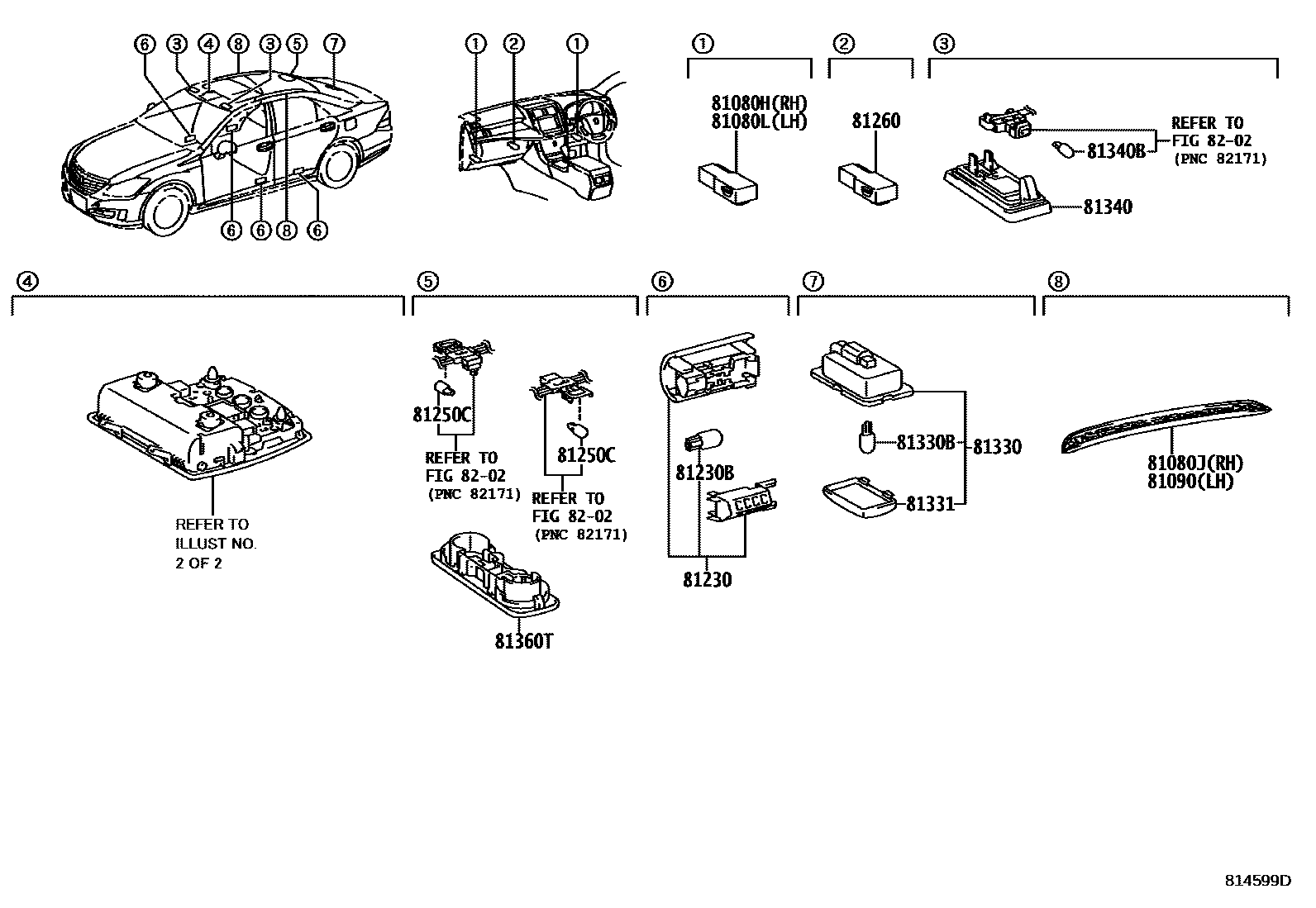

INTERIOR LAMP

0001 1 0002 1 0003 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iGRS20#,GWS204..CBU201002-201212

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-30070-A0iGRS200,201..ROY..CBU201002-201212

main81080-30070-B0iGRS200,201..ROY..CBU201002-201212

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iGRS20#,GWS204200802-201002

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-30010-A0iGRS200,201..ROY..CBU201002-201212

main81090-30010-B0iGRS200,201..ROY..CBU201002-201212

81230LAMP ASSY, COURTESY

main81230-47010×4iGRS20#,GWS204..CBU201002-201212

sub81230-30200

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iGRS20#,GWS204200802-201002

81250CBULB, SPOT LAMP

main90981-11062×2iGRS20#,GWS204200802-201002

81260LAMP ASSY, GLOVE BOX

main81080-48010iGRS20#,GWS204200802-201002

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-50021iGRS20#,GWS204200802-201002

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iGRS20#,GWS204200802-201002

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-50010iGRS20#,GWS204200802-201002

81340LAMP ASSY, VANITY

main81340-30100-A3×2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201208

SHELL,TRIM0#

main81340-30100-B1×2iGRS200,201,204,GWS204..ATH,HBD201002-201208

GRAY,TRIM1#

main81340-30110×2iGRS20#,GWS204..CBU201208-201212

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iGRS20#,GWS204200802-201002

81360TLAMP ASSY, SPOT

main81360-30040-A1iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-200901

SHELL,TRIM0#

main81360-30040-B1iGRS200,201,204,GWS204..ATH,HBD200802-200901

GRAY,TRIM1#

main81360-30050-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main81360-30050-B0iGRS200,201,204,GWS204..ATH,HBD201002-201212

GRAY,TRIM1#

8202

15 parts on this diagram · 3 diagrams in section
