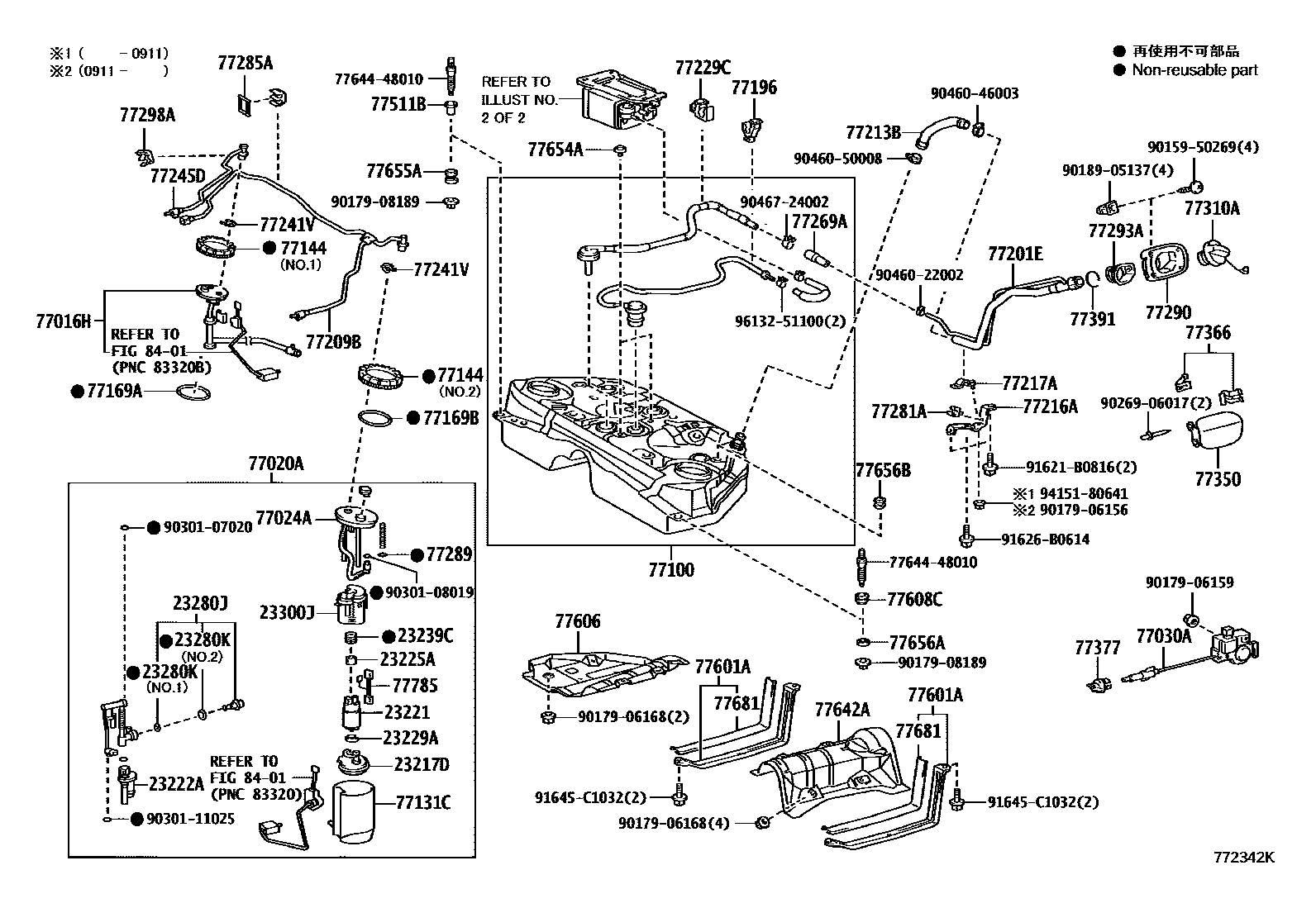

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ��� 0005 1����� ����� 0006 1����� ����� 0007 1����� �����

23217DFILTER, FUEL PUMP

main23217-31100i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

23221PUMP, FUEL

main23221-31020i3GRFSE,4GRFSE..GRS200,201,202,203200802-200911

main23221-31090i2GRFSE..GRS204,GWS204200802-200911

main23221-31340i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200911-201002

sub23220-31340

23222ATUBE, FUEL RETURN JET

main23222-31020i2GRFSE..GWS204200805-201002

23225ASPACER, FUEL PUMP

main23225-21010i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201212

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201212

23239CSEAL, FUEL PUMP FILTER

main23239-21010i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-31020i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

main90301-15024i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

23300JFILTER ASSY, FUEL

main23300-31140i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU200802-201002

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-30080iGRS20#200802-201002

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-30291iGRS204200802-200910

main77020-30292iGRS20#200911-201002

main77020-30331iGRS200,201,202,203200802-200911

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-22030iGWS204200805-201002

sub77024-22031

main77024-30110iGRS20#200802-201002

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-30170iGRS20#,GWS204200802-201002

77100TANK ASSY, FUEL

main77001-30561iGRS20#200802-201002

main77001-30600iGWS204200805-200809

main77001-30601iGWS204201002-201212

77131CSUB-TANK, FUEL, NO.1

main77131-30071iGRS20#..CBU201002-201212

main77131-30080iGWS204200805-201002

77144RETAINER, FUEL PUMP GAUGE

main77144-30020iGRS20#..CBU201002-201212

main77144-47020iGRS20#200802-201002

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30010iGRS20#200802-201002

main77169-52010iGWS204200805-201002

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030iGRS20#200802-201002

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30050iGRS20#200802-201002

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-30490iGRS20#200802-201002

main77201-30500iGWS204200805-201002

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-30170iGWS204200805-201002

main77209-30180iGRS200,201,202,203..CBU201002-201212

main77209-30220iGRS204200802-201002

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22100iGWS204200805-201002

main77213-30191iGRS20#200802-201002

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30050iGRS20#,GWS204..CBU201002-201202

main77216-30051iGRS20#,GWS204..CBU201203-201212

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30130iGRS20#,GWS204200802-201002

main77217-30131iGRS20#,GWS204..CBU201203-201212

77229CCLAMP, BREATHER TUBE

main77229-30050iGRS20#200802-201002

77241VCLIP, TUBE JOINT

main77241-33011×2iGRS20#,GWS204..CBU201002-201212

main77241-60320×2iGRS20#,GWS204200802-201001

77245DTUBE, FUEL TANK RETURN VENT

main77245-30170iGRS20#200802-201002

main77245-30200iGWS204200805-201002

77269AHOSE, FUEL TANK BREATHER

main77269-22010iGWS204201002-201212

main77269-30060iGRS204200802-201002

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iGRS20#,GWS204200802-201002

77285ASUPPORT, FUEL RETURN AND MAIN TUBE

main77285-30230iGRS20#200802-201002

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGRS20#200802-201002

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-30130iGRS20#,GWS204200802-201002

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-30090iGRS20#,GWS204200802-201002

77298ACLAMP, FUEL TUBE, NO.4

main77298-30180iGRS20#200802-201002

77310ACAP ASSY, FUEL TANK

main77300-52030iGRS20#,GWS204200802-201002

77350LID ASSY, FUEL FILLER OPENING

main77350-30390iGRS20#,GWS204200802-201002

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iGRS20#,GWS204200802-201002

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iGRS20#,GWS204200802-201002

77391RING, FUEL INLET BOX

main77391-12020iGRS20#,GWS204200802-201002

77511BBRACKET, FUEL TANK

main77511-48030iGRS20#200802-201002

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-22110iGWS204200805-201002

main77601-30170×2iGRS20#200802-200910

main77601-30171×2iGRS20#..CBU201002-201212

main77601-53020iGWS204200805-201002

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30190iGRS20#200802-201002

main77606-53030iGWS204200805-201002

main77606-53031iGWS204201207-201212

77608CCUSHION SET, FUEL TANK

main77608-48010iGRS20#200802-201002

77642APROTECTOR, FUEL TANK, NO.2

main77642-30030iGRS20#200802-201002

77654CUSHION, FUEL TANK, NO.2

main77652-30090iGRS20#200911-201002

77654ACUSHION, FUEL TANK, NO.4

main77654-30020×2iGRS20#200802-201002

77655ACUSHION, FUEL TANK, NO.5

main77655-30080iGRS20#200802-201002

77656ACUSHION, FUEL TANK, NO.4

main77655-48010iGRS20#200802-201002

77656BCUSHION, FUEL TANK, NO.6

main77656-30030×4iGRS20#200802-201002

77681SEAT, FUEL TANK BAND, RH

main77681-22020×2iGWS204201002-201212

main77681-30010×2iGRS20#..CBU201002-201212

77785HARNESS, FUEL PUMP

main77785-30040iGRS204,GWS204200802-201002

main77785-30041iGRS200,201,202,203..CBU200802-200911

8401

7764448010BOLT, FUEL TANK

main77644-48010

9015950269

main90159-50269

9017906156

main90179-06156

9017906159

main90179-06159

9017906168

main90179-06168

9017908189

main90179-08189

9018905137

main90189-05137

9026906017

main90269-06017

9030107020

main90301-07020

9030108019

main90301-08019

9030111025

main90301-11025

9046022002

main90460-22002

9046046003

main90460-46003

9046050008

main90460-50008

9046724002

main90467-24002

91621B0816

main91621-B0816

91626B0614

main91626-B0614

91645C1032

main91645-C1032

9415180641

main94151-80641

9613251100

main96132-51100

72 parts on this diagram · 7 diagrams in section
