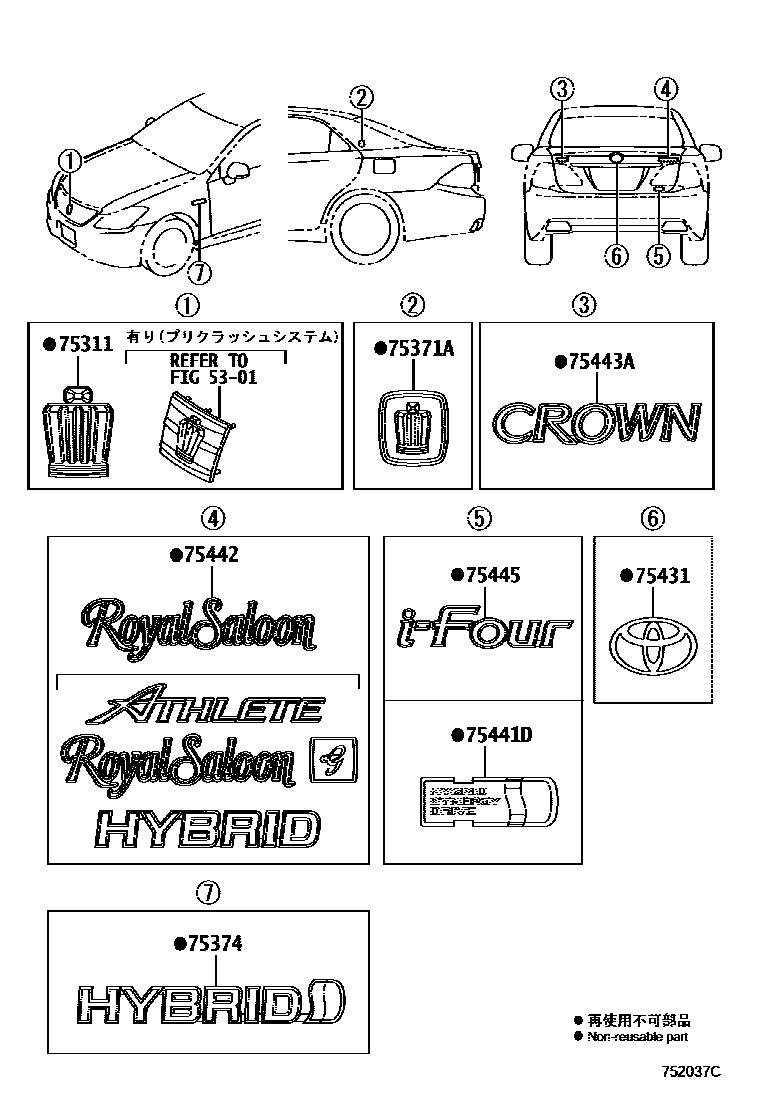

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-30450iGRS20#..CBU201002-201212

main75311-30460iGRS200,201,204..ATH200802-201002

main00000-00000iGRS202,203,204..CBU201002-201212

main75311-30480iGRS200,201,204..ATH200904-201002

main75311-30490iGRS200,201..ROY..CBU201111-201203

main75311-30500iGRS200,201..ATH201012-201203

75371AEMBLEM, QUARTER PANEL

main75371-30210×2iGRS20#,GWS204200802-201002

75374EMBLEM, SIDE PANEL

main75374-30050iGWS204200805-201001

main75374-30060iGWS204200805-201001

main75374-33010iGWS204201001-201002

main75374-33011iGWS204201003-201212

sub75374-33090

main75374-33020iGWS204201002-201003

main75374-33021iGWS204201003-201212

sub75374-33100

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-75010iGWS204201002-201212

main90975-02063iGRS20#..CBU201002-201212

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75443-30530iGWS204200805-201002

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75443-30510iGRS200,201,202,203..ROY..CBU201002-201212

main75443-30520iGRS200,201,204..ATH201002-201212

main75443-30550iGRS202..ROYG200802-201002

main75443-30560iGWS204200805-201002

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75442-30210iGRS20#,GWS204200802-201002

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75445-30110iGRS201,203200802-201002

9 parts on this diagram · 1 diagram in section
