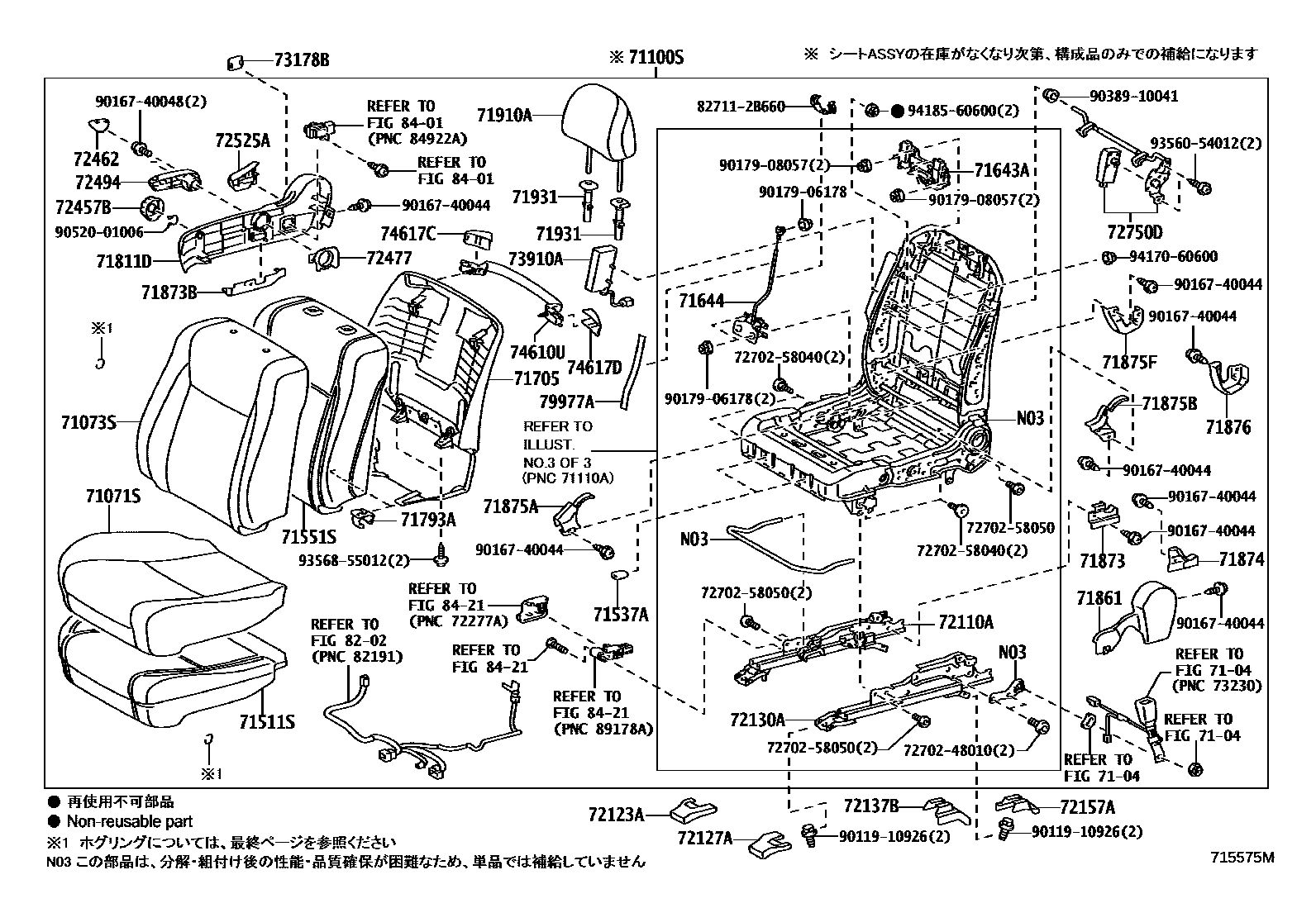

FRONT SEAT & SEAT TRACK

0001 1������(��������) 0004 1������:��(������� & �������� 0005 1������:��(�������) 0006 1�������(��������) 0009 1�������:��(������� & ��������0010 1�������:��(�������) 0011 1����(������) 0012 1����(�������) 0013 1�������:��(������� & �����) 0014 1�������:��(������� & �����) 0015 1����(�������:��(������� & ���0016 1�������

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-30C30-A2iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

SHELL,TRIM0#

sub71071-30C31

main71071-30C30-B1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

GRAY,TRIM1#

sub71071-30C31

main71071-30C40-E0iGWS204200805-201002

DK.BROWN,TRIM4#

sub71071-30C40

main71071-30C60-B1iGRS200,201,204..ATH200802-201002

GRAY,TRIM1#

sub71071-30C61

main71071-30C60-E1iGRS200,201,204..ATH200802-201002

DK.BROWN,TRIM4#

sub71071-30C61

main71071-30E70-A0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-A0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-A0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-A0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-A0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-A0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-A0iGRS200..ROY..CBU201002-201212

SHELL,TRIM0#

sub71071-30E71

main71071-30E70-A0iGRS200..ROY..CBU201002-201212

sub71071-30E71

main71071-30E70-A0iGRS200..ROY..CBU201002-201212

sub71071-30E71

main71071-30E70-A0iGRS200..ROY..CBU201002-201212

sub71071-30E71

main71071-30E70-B0iGWS204201002-201212

sub71071-30E71

main71071-30E70-B0iGRS202,203..CBU201002-201212

GRAY,TRIM1#

sub71071-30E71

main71071-30E70-B0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-B0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-B0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-B0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-B0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E70-B0iGRS202,203..CBU201002-201212

sub71071-30E71

main71071-30E80-B0iGRS204201002-201212

GRAY,TRIM1#

sub71071-30E81

main71071-30E80-B0iGRS204201002-201212

sub71071-30E81

main71071-30E80-E0iGRS204201002-201212

DK. BROWN,TRIM4#

sub71071-30E81

main71071-30E80-E0iGRS204201002-201212

sub71071-30E81

main71071-30E90-A0iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub71071-30E91

main71071-30E90-B0iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

GRAY,TRIM1#

sub71071-30E91

main71071-30F00-B0iGRS200,201..ATH201002-201212

GRAY,TRIM1#

sub71071-30F01

main71071-30F00-E0iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub71071-30F01

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-30B90-A2iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

SHELL,TRIM0#

sub71073-30B91

main71073-30B90-B0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

GRAY,TRIM1#

sub71073-30B91

main71073-30C10-E2iGWS204200805-201002

DK.BROWN,TRIM4#

sub71073-30C10

main71073-30C30-B0iGRS200,201,204..ATH200802-201002

GRAY,TRIM1#

sub71073-30C31

main71073-30C30-E0iGRS200,201,204..ATH200802-201002

DK.BROWN,TRIM4#

sub71073-30C31

main71073-30F30-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

sub71073-30F31

main71073-30F30-B0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

GRAY,TRIM1#

sub71073-30F31

main71073-30F40-B0iGRS200,201,204..ATH201002-201212

GRAY,TRIM1#

sub71073-30F41

main71073-30F40-E0iGRS200,201,204..ATH201002-201212

DK. BROWN,TRIM4#

sub71073-30F41

71100SSEAT ASSY, FRONT RH

main71100-30G71-A4iGRS200,202..ROY..CBU200802-201002

SHELL,TRIM0#

sub71100-30G72

main71100-30G71-B4iGRS200,202..ROY..CBU200802-201002

GRAY,TRIM1#

sub71100-30G72

main71100-30G81-A4iGRS201,203..ROY..CBU200802-201002

SHELL,TRIM0#

sub71100-30G82

main71100-30G81-B4iGRS201,203..ROY..CBU200802-201002

GRAY,TRIM1#

sub71100-30G82

main71100-30J11-A4iGRS202..ROY..CBU200802-201002

SHELL,TRIM0#

sub71100-30J12

main71100-30J11-A4iGRS202..ROY..CBU200802-201002

sub71100-30J12

main71100-30J11-B4iGRS202..ROYG200802-201002

sub71100-30J12

main71100-30J11-B4iGRS202..ROY..CBU200802-201002

GRAY,TRIM1#

sub71100-30J12

main71100-30J61-E4iGWS204200805-201002

DK.BROWN,TRIM4#

sub71100-30J61

main71100-30K11-B5iGRS200,204..ATH200802-201002

GRAY,TRIM1#

sub71100-30K12

main71100-30K11-E5iGRS200,204..ATH200802-201002

DK.BROWN,TRIM4#

sub71100-30K12

main71100-30K21-B5iGRS201..ATH200802-201002

GRAY,TRIM1#

sub71100-30K22

main71100-30K21-E5iGRS201..ATH200802-201002

DK.BROWN,TRIM4#

sub71100-30K22

main71100-30R40-A0iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub71100-30R41

main71100-30R40-B0iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

GRAY,TRIM1#

sub71100-30R41

main71100-30T20-A0iGRS202..ROY..CBU201002-201212

sub71100-30T21

main71100-30T20-A0iGRS202..ROY..CBU201002-201212

sub71100-30T21

main71100-30T20-A0iGRS202..ROY..CBU201002-201212

sub71100-30T21

main71100-30T20-A0iGRS202..ROY..CBU201002-201212

sub71100-30T21

main71100-30T20-A0iGRS200..ROY..CBU201002-201212

SHELL,TRIM0#

sub71100-30T21

main71100-30T20-B0iGWS204201002-201212

sub71100-30T21

main71100-30T20-B0iGRS202..ROY..CBU201002-201212

GRAY,TRIM1#

sub71100-30T21

main71100-30T20-B0iGRS202..ROY..CBU201002-201212

sub71100-30T21

main71100-30T20-B0iGRS202..ROY..CBU201002-201212

sub71100-30T21

main71100-30T30-A0iGRS202..ROYG201002-201212

sub71100-30T31

main71100-30T30-A0iGRS202..ROYG201002-201212

sub71100-30T31

main71100-30T30-A0iGRS202..ROYG201002-201212

sub71100-30T31

main71100-30T30-A0iGRS200..ROY..CBU201002-201212

SHELL,TRIM0#

sub71100-30T31

main71100-30T30-B0iGRS202..ROYG201002-201212

GRAY,TRIM1#

sub71100-30T31

main71100-30T30-B0iGRS202..ROYG201002-201212

sub71100-30T31

main71100-30T30-B0iGRS202..ROYG201002-201212

sub71100-30T31

main71100-30T30-B0iGRS200..ROY..CBU201002-201212

sub71100-30T31

main71100-30T50-A0iGRS203..CBU201002-201212

sub71100-30T51

main71100-30T50-A0iGRS201..ROY201002-201212

SHELL,TRIM0#

sub71100-30T51

main71100-30T50-B0iGRS201..ROY201002-201212

GRAY,TRIM1#

sub71100-30T51

main71100-30T50-B0iGRS203..CBU201002-201212

sub71100-30T51

main71100-30U20-B0iGRS200,201..ATH201002-201212

GRAY,TRIM1#

sub71100-30U21

main71100-30U20-E0iGRS200,201..ATH201002-201212

DK.BROWN,TRIM4#

sub71100-30U21

main71100-30U40-B0iGRS200..ATH201002-201212

sub71100-30U41

main71100-30U40-B0iGRS204201002-201212

GRAY,TRIM1#

sub71100-30U41

main71100-30U40-E0iGRS200..ATH201002-201212

sub71100-30U41

main71100-30U40-E0iGRS204201002-201212

DK.BROWN,TRIM4#

sub71100-30U41

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-30A90iGWS204200805-201002

main71511-30B00iGRS200,201..ROY..CBU201002-201212

main71511-30B00iGRS20#..CBU200802-201002

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B00iGRS202,203,204..CBU201002-201212

main71511-30B10iGRS200,201,GWS204..CBU201002-201212

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010iGRS201..ROY201002-201212

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-30A80iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201212

main71551-30B00iGWS204200805-201002

main71551-30B20iGRS200,201,204..ATH200802-201212

71643AUNIT, ACTIVE HEADREST, UPR

main71643-12011iGRS20#,GWS204..CBU200802-201212

main71643-12011iGRS20#,GWS204..CBU200802-201212

main71643-12011iGRS20#,GWS204..CBU200802-201212

main71643-12011iGRS200,202,203..ROY..CBU201002-201212

71644UNIT, ACTIVE HEADREST, LWR

main71644-12030iGRS20#,GWS204..CBU200802-201212

main71644-12030iGRS20#,GWS204..CBU201002-201212

main71644-12030iGRS20#,GWS204..CBU200802-201212

main71644-12030iGRS20#,GWS204..CBU200802-201212

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-30800-A1iGWS204201002-201212

main71705-30800-A1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

main71705-30800-A1iGRS200..ROY..CBU201002-201212

main71705-30800-A1iGRS200..ROY..CBU201002-201212

main71705-30800-A1iGRS200..ROY..CBU201002-201212

main71705-30800-A1iGRS200..ROY..CBU201002-201212

main71705-30800-A1iGRS200..ROY..CBU201002-201212

main71705-30800-A1iGRS200..ROY..CBU201002-201212

main71705-30800-A1iGRS200..ROY..CBU201002-201212

main71705-30800-A1iGRS200..ROY..CBU201002-201212

main71705-30800-B1iGWS204201002-201212

main71705-30800-B1iGWS204201002-201212

main71705-30800-B1iGWS204201002-201212

main71705-30800-B1iGWS204201002-201212

main71705-30800-B1iGWS204201002-201212

main71705-30800-B1iGWS204201002-201212

main71705-30800-B1iGWS204201002-201212

main71705-30800-B1iGRS200,201..ATH200802-201212

GRAY,TRIM1#

main71705-30800-B1iGRS200,201..ATH201002-201212

main71705-30800-E1iGRS204201002-201212

main71705-30800-E1iGRS200,201,204..ATH200802-201212

DK. BROWN,TRIM4#

main71705-30820-E1iGWS204200805-201002

DK. BROWN,TRIM4#

main71705-30860-A0iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main71705-30860-B0iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

main71705-30860-E0iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

71793ACLIP, FRONT SEATBACK POCKET

main71793-58010iGRS200,202,203..ROY..CBU200802-201212

main71793-58010iGRS200,202,203..ROY..CBU200802-201212

main71793-58010iGRS200,202,203..ROY..CBU200802-201212

main71793-58010iGRS200,202,203..ROY..CBU201002-201212

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-30450-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

sub71811-30450

main71811-30450-A1iGWS204201002-201212

sub71811-30450

main71811-30450-A1iGWS204201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-A1iGRS202,203..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS200,201..ATH200802-201212

GRAY,TRIM1#

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-B1iGRS202,203,204..CBU201002-201212

sub71811-30450

main71811-30450-E0iGRS204200802-201212

DK. BROWN,TRIM4#

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30450-E0iGWS204201002-201212

sub71811-30450

main71811-30460-A1iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub71811-30460

main71811-30460-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

sub71811-30460

main71811-30460-E0iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub71811-30460

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-30100-A1iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub71861-30100

main71861-30100-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

sub71861-30100

main71861-30100-E1iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub71861-30100

main71861-60110-A2iGRS202,203..CBU200802-201212

SHELL,TRIM0#

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-A2iGRS202,203..CBU201002-201212

sub71861-60110

main71861-60110-B5iGWS204201002-201212

sub71861-60110

main71861-60110-B5iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-B5iGRS202,203,204..CBU201002-201212

sub71861-60110

main71861-60110-E4iGRS200,201,204,GWS204..ATH,HBD200802-201212

DK. BROWN,TRIM4#

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

main71861-60110-E4iGRS204201002-201212

sub71861-60110

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-30090iGRS20#,GWS204..CBU200802-201002

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-30090iGRS202,203,204..CBU201002-201212

main71873-48010iGRS200,201,GWS204..CBU201002-201212

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-30050iGRS200,201,GWS204..CBU201002-201212

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS202,203,204..CBU201002-201212

sub71874-75020

main71874-12040iGRS20#,GWS204..CBU200802-201002

sub71874-75020

main71874-48010iGRS200,201,GWS204..CBU201002-201212

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-30150-A1iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub71875-30150

main71875-30150-B2iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

sub71875-30150

main71875-30150-E1iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub71875-30150

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-30160-A1iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub71875-30160

main71875-30160-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

sub71875-30160

main71875-30160-E1iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub71875-30160

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-A2iGRS202,203..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200,201..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200..ROY..CBU200802-201212

GRAY,TRIM1#

sub71875-60150

main71875-60150-B5iGRS200..ROY..CBU201002-201212

sub71875-60150

main71875-60150-B5iGRS200..ROY..CBU201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204201002-201212

sub71875-60150

main71875-60150-E6iGWS204200802-201212

DK. BROWN,TRIM4#

sub71875-60150

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-58050iGRS20#,GWS204..CBU200802-201002

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58050iGRS202,203,204..CBU201002-201212

main71875-58060iGRS200,201,GWS204..CBU201002-201212

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-58050iGRS200,201..ATH201002-201212

main71876-58050iGRS20#,GWS204..CBU200802-201002

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58050iGRS202,203,204..CBU201002-201212

main71876-58060iGRS200,201,GWS204..CBU201002-201212

71910AHEADREST ASSY, FRONT SEAT

main71910-30B60-A2iGRS200,202,203..ROY..CBU200802-201002

sub71910-30B61

sub71910-30B60

main71910-30B60-A2iGRS200,202,203..ROY..CBU200802-201002

sub71910-30B61

sub71910-30B60

main71910-30B60-A2iGRS200,202,203..ROY..CBU200802-201002

SHELL,TRIM0#

sub71910-30B61

sub71910-30B60

main71910-30B60-A2iGRS200..ROY..CBU200802-201002

sub71910-30B61

sub71910-30B60

main71910-30B60-B1iGRS200,202,203..ROY..CBU200802-201002

sub71910-30B61

sub71910-30B60

main71910-30B60-B1iGRS200,202,203..ROY..CBU200802-201002

sub71910-30B61

sub71910-30B60

main71910-30B60-B1iGRS200,202,203..ROY..CBU200802-201002

sub71910-30B61

sub71910-30B60

main71910-30B60-B1iGRS200,202,203..ROY..CBU200802-201002

GRAY,TRIM1#

sub71910-30B61

sub71910-30B60

main71910-30B80-E0iGWS204200805-201002

DK.BROWN,TRIM4#

sub71910-30B80

main71910-30C00-B1iGRS200,201,204..ATH200802-201002

GRAY,TRIM1#

sub71910-30C01

main71910-30C00-E1iGRS200,201,204..ATH200802-201002

DK.BROWN,TRIM4#

sub71910-30C01

main71910-30E60-A0iGRS200..ROY..CBU201002-201212

sub71910-30E61

main71910-30E60-A0iGRS200,202,203..ROY..CBU201002-201212

sub71910-30E61

main71910-30E60-A0iGRS200,202,203..ROY..CBU201002-201212

sub71910-30E61

main71910-30E60-A0iGRS200,202,203..ROY..CBU201002-201212

sub71910-30E61

main71910-30E60-A0iGRS200,202,203..ROY..CBU201002-201212

SHELL,TRIM0#

sub71910-30E61

main71910-30E60-B0iGRS200..ROY..CBU201002-201212

sub71910-30E61

main71910-30E60-B0iGRS200..ROY..CBU201002-201212

sub71910-30E61

main71910-30E60-B0iGRS200..ROY..CBU201002-201212

GRAY,TRIM1#

sub71910-30E61

main71910-30E70-B0iGRS200,201,204..ATH201002-201212

GRAY,TRIM1#

sub71910-30E71

main71910-30E70-E0iGRS200,201,204..ATH201002-201212

DK.BROWN,TRIM4#

sub71910-30E71

71931SUPPORT, FRONT SEAT HEADREST

main71930-52030-A2iGRS200,202,203..ROY..CBU200802-201212

sub71930-52030

main71930-52030-A2iGRS200,202,203..ROY..CBU200802-201212

sub71930-52030

main71930-52030-A2iGRS200,202,203..ROY..CBU200802-201002

sub71930-52030

main71930-52030-A2iGRS200,202,203..ROY..CBU200802-201212

sub71930-52030

main71930-52030-A2iGRS200,202,203..ROY..CBU201002-201212

sub71930-52030

main71930-52030-A2iGRS200,202,203..ROY..CBU201002-201212

sub71930-52030

main71930-52030-B1iGRS20#,GWS204..CBU200802-201212

sub71930-52030

main71930-52030-B1iGRS202..ROYG200802-201002

sub71930-52030

main71930-52030-B1iGRS20#..CBU200802-201002

sub71930-52030

main71930-52030-B1iGRS20#..CBU200802-201212

sub71930-52030

main71930-52030-B1iGRS200..ROY..CBU201002-201212

sub71930-52030

main71930-52030-E5iGWS204201002-201212

sub71930-52030

main71930-52030-E5iGRS200,201,204,GWS204..ATH,HBD200802-201212

sub71930-52030

main71930-52030-E5iGWS204201002-201212

sub71930-52030

main71930-52030-E5iGWS204201002-201212

sub71930-52030

main71931-42020-A5iGRS200,202,203..ROY..CBU200802-201212

sub71931-42020

main71931-42020-A5iGRS200..ROY..CBU200802-201212

sub71931-42020

main71931-42020-A5iGRS200..ROY..CBU201002-201212

sub71931-42020

main71931-42020-A5iGRS200..ROY..CBU201002-201212

sub71931-42020

main71931-42020-A5iGRS200..ROY..CBU200802-201212

sub71931-42020

main71931-42020-B7iGRS200,202,203..ROY..CBU200802-201002

sub71931-42020

main71931-42020-B7iGRS202..ROYG201002-201212

sub71931-42020

main71931-42020-B7iGRS200,202,203..ROY..CBU200802-201212

sub71931-42020

main71931-42020-B7iGRS200,202,203..ROY..CBU200802-201212

sub71931-42020

main71931-42020-E9iGRS200,201,204..ATH201002-201212

sub71931-42020

main71931-42020-E9iGRS200,201,204..ATH200802-201212

sub71931-42020

main71931-42020-E9iGRS200,201,204..ATH201002-201212

sub71931-42020

main71931-42020-E9iGRS200,201,204..ATH201002-201212

sub71931-42020

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-30700iGRS200,201,GWS204..CBU201002-201212

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-30090-A1iGWS204201002-201212

sub72123-30090

main72123-30090-A1iGWS204201002-201212

sub72123-30090

main72123-30090-A1iGWS204201002-201212

sub72123-30090

main72123-30090-A1iGWS204200802-201212

SHELL,TRIM0#

sub72123-30090

main72123-30090-A1iGWS204201002-201212

sub72123-30090

main72123-30090-A1iGWS204201002-201212

sub72123-30090

main72123-30090-A1iGWS204201002-201212

sub72123-30090

main72123-30090-B1iGRS200,201..ROY..CBU201002-201212

sub72123-30090

main72123-30090-B1iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

sub72123-30090

main72123-30090-B1iGWS204201002-201212

sub72123-30090

main72123-30090-B1iGWS204201002-201212

sub72123-30090

main72123-30090-B1iGRS200..ROY..CBU201002-201212

sub72123-30090

main72123-30090-B1iGRS200..ROY..CBU201002-201212

sub72123-30090

main72123-30090-E0iGRS200,201..ATH200802-201212

DK. BROWN,TRIM4#

sub72123-30090

main72123-30090-E0iGRS200,201..ATH201002-201212

sub72123-30090

main72123-30090-E0iGRS200,201..ATH201002-201212

sub72123-30090

main72123-30090-E0iGRS200,201..ATH201002-201212

sub72123-30090

main72123-30100-A2iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main72123-30100-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

main72123-30100-E1iGRS200,201,GWS204..ATH,HBD201002-201212

DK. BROWN,TRIM4#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-30090-A1iGRS200..ROY..CBU201002-201212

sub72123-30090

main72123-30090-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

sub72123-30090

main72123-30090-A1iGRS202,203..CBU201002-201212

sub72123-30090

main72123-30090-A1iGRS202,203..CBU201002-201212

sub72123-30090

main72123-30090-A1iGRS202,203..CBU201002-201212

sub72123-30090

main72123-30090-A1iGRS202,203..CBU201002-201212

sub72123-30090

main72123-30090-A1iGRS202,203..CBU201002-201212

sub72123-30090

main72123-30090-B1iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

sub72123-30090

main72123-30090-B1iGWS204201002-201212

sub72123-30090

main72123-30090-B1iGRS200..ROY..CBU201002-201212

sub72123-30090

main72123-30090-B1iGRS200..ROY..CBU201002-201212

sub72123-30090

main72123-30090-B1iGRS200..ROY..CBU201002-201212

sub72123-30090

main72123-30090-B1iGRS200..ROY..CBU201002-201212

sub72123-30090

main72123-30090-E0iGRS204200802-201212

DK. BROWN,TRIM4#

sub72123-30090

main72123-30090-E0iGWS204201002-201212

sub72123-30090

main72123-30090-E0iGWS204201002-201212

sub72123-30090

main72123-30090-E0iGWS204201002-201212

sub72123-30090

main72127-30080-A2iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main72127-30080-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

main72127-30080-E1iGRS200,201,GWS204..ATH,HBD201002-201212

DK. BROWN,TRIM4#

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-30180iGRS200,201,GWS204..CBU201002-201212

72137BCOVER, SEAT TRACK, RH

main72137-30190-A1iGRS200,201..ROY..CBU201002-201212

sub72137-30190

main72137-30190-A1iGRS200,201..ROY..CBU201002-201212

sub72137-30190

main72137-30190-A1iGRS200,201..ROY..CBU200802-201212

SHELL,TRIM0#

sub72137-30190

main72137-30190-A1iGRS200..ROY..CBU201002-201212

sub72137-30190

main72137-30190-A1iGRS200..ROY..CBU201002-201212

sub72137-30190

main72137-30190-A1iGRS200..ROY..CBU201002-201212

sub72137-30190

main72137-30190-A1iGRS200..ROY..CBU201002-201212

sub72137-30190

main72137-30190-B1iGRS200,201..ROY..CBU201002-201212

sub72137-30190

main72137-30190-B1iGRS202,203,204..CBU200802-201212

GRAY,TRIM1#

sub72137-30190

main72137-30190-B1iGRS200,201..ATH201002-201212

sub72137-30190

main72137-30190-B1iGRS200,201..ATH201002-201212

sub72137-30190

main72137-30190-B1iGRS200,201..ATH201002-201212

sub72137-30190

main72137-30190-B1iGRS200,201..ATH201002-201212

sub72137-30190

main72137-30190-E0iGWS204201002-201212

sub72137-30190

main72137-30190-E0iGRS200,201,204,GWS204..ATH,HBD200802-201212

DK. BROWN,TRIM4#

sub72137-30190

main72137-30190-E0iGWS204201002-201212

sub72137-30190

main72137-30190-E0iGWS204201002-201212

sub72137-30190

main72137-30200-A2iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main72137-30200-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

main72137-30200-E1iGRS200,201,GWS204..ATH,HBD201002-201212

DK. BROWN,TRIM4#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-30090-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

main72157-30090-A1iGRS202,203..CBU201002-201212

main72157-30090-A1iGRS202,203..CBU201002-201212

main72157-30090-A1iGRS202,203..CBU201002-201212

main72157-30090-A1iGRS202,203..CBU201002-201212

main72157-30090-A1iGRS202,203..CBU201002-201212

main72157-30090-A1iGRS202,203..CBU201002-201212

main72157-30090-B1iGRS200,201..ATH201002-201212

main72157-30090-B1iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

main72157-30090-B1iGRS202,203,204..CBU201002-201212

main72157-30090-B1iGRS202,203,204..CBU201002-201212

main72157-30090-B1iGRS202,203,204..CBU201002-201212

main72157-30090-B1iGRS202,203,204..CBU201002-201212

main72157-30090-E0iGRS200,201,204,GWS204..ATH,HBD200802-201212

DK. BROWN,TRIM4#

main72157-30090-E0iGRS204201002-201212

main72157-30090-E0iGRS204201002-201212

main72157-30090-E0iGRS204201002-201212

main72157-30100-A2iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main72157-30100-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

main72157-30100-E1iGRS200,201,GWS204..ATH,HBD201002-201212

DK. BROWN,TRIM4#

72457BKNOB, VERTICAL SEAT ADJUSTER, RH

main72457-32010-A2iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub72457-32010

main72457-32010-B6iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

sub72457-32010

main72457-32010-E1iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub72457-32010

72462COVER, VERTICAL ADJUSTER RH

main72462-58010-A4iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub72462-58010

main72462-58010-B5iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

sub72462-58010

main72462-58010-E4iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub72462-58010

72477SPACER, VERTICAL ADJUSTER

main72477-52010iGWS204201002-201212

main72477-52010-C0iGRS200,201..ROY..CBU201002-201212

BLACK,TRIM0#,1#

sub72477-52010

main72477-52010-E5iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub72477-52010

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-52010-A4iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub72494-52010

sub72494-60020

sub72462-60010

main72494-52010-B4iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

sub72494-52010

sub72494-60020

sub72462-60010

main72494-52010-E4iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub72494-52010

sub72494-60020

sub72462-60010

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-30090-A1iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

sub72525-30090

main72525-30090-B2iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

sub72525-30090

main72525-30090-E1iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

sub72525-30090

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30260iGRS20#,GWS204..CBU200802-201212

73178BCAP, SEAT BELT ANCHOR COVER

main73178-30030-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

sub73178-30030

main73178-30030-A1iGRS200,202,203..ROY..CBU200802-201212

SHELL,TRIM0#

sub73178-30030

main73178-30030-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

sub73178-30030

main73178-30030-B1iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

sub73178-30030

main73178-30030-E0iGRS200,201,204,GWS204..ATH,HBD200802-201212

DK. BROWN,TRIM4#

sub73178-30030

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-30070iGRS20#,GWS204..CBU200802-201212

74610UGRIP ASSY, ASSIST

main71025-30020-A1iGRS200..ROY..CBU201002-201212

main71025-30020-A1iGRS200,202,203..ROY..CBU200802-201212

main71025-30020-A1iGRS200,202,203..ROY..CBU200802-201212

SHELL,TRIM0#

main71025-30020-B1iGRS200,202,203..ROY..CBU200802-201212

NEW GRAY,TRIM1#

main71025-30020-B1iGRS20#,GWS204..CBU200802-201002

main71025-30020-E1iGRS200,201,204,GWS204..ATH,HBD200802-201212

DK.BROWN,TRIM4#

74617CPLUG, ASSIST GRIP

main74617-30070-A2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

main74617-30070-A2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

main74617-30070-A2iGRS200..ROY..CBU201002-201212

main74617-30070-B2iGRS20#,GWS204..CBU200802-201002

main74617-30070-B2iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

main74617-30070-E2iGRS200,201,204,GWS204..ATH,HBD200802-201212

DK. BROWN,TRIM4#

74617DPLUG, ASSIST GRIP

main74618-30020-A2iGRS200..ROY..CBU200802-201212

SHELL,TRIM0#

main74618-30020-A2iGRS200,202,203..ROY..CBU200802-201212

main74618-30020-A2iGRS200,202,203..ROY..CBU201002-201212

main74618-30020-B2iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

main74618-30020-B2iGRS200,202,203..ROY..CBU200802-201002

main74618-30020-E2iGRS200,201,204,GWS204..ATH,HBD200802-201212

DK. BROWN,TRIM4#

79977AFELT, SEATBACK

main79977-48010iGWS204201002-201212

main79977-48010iGWS204201002-201212

main79977-48010iGWS204201002-201212

main79977-48010iGWS204201002-201212

main79977-48010iGWS204201002-201212

main79977-48010iGWS204201002-201212

main79977-48010iGWS204200802-201212

main79977-48010iGWS204201002-201212

main79977-48010iGWS204200802-201212

main79977-48010iGWS204201002-201212

main79977-48010iGWS204201002-201212

main79977-48010iGWS204201002-201212

main79977-48010iGRS202,203,204..(ATH,ROY)..CBU200802-201002

main79977-48010iGRS202,203,204..(ATH,ROY)..CBU200802-201002

main79977-48010iGWS204200805-201002

8202

8401

8421

7270248010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-48010

7270258040BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-58040

7270258050BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-58050

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

9011910926

main90119-10926

9016740044

main90167-40044

9016740048

main90167-40048

9017906178

main90179-06178

9017908057

main90179-08057

9038910041

main90389-10041

9052001006

main90520-01006

9356054012

main93560-54012

9356855012

main93568-55012

9417060600

main94170-60600

9418560600

main94185-60600

58 parts on this diagram · 12 diagrams in section
