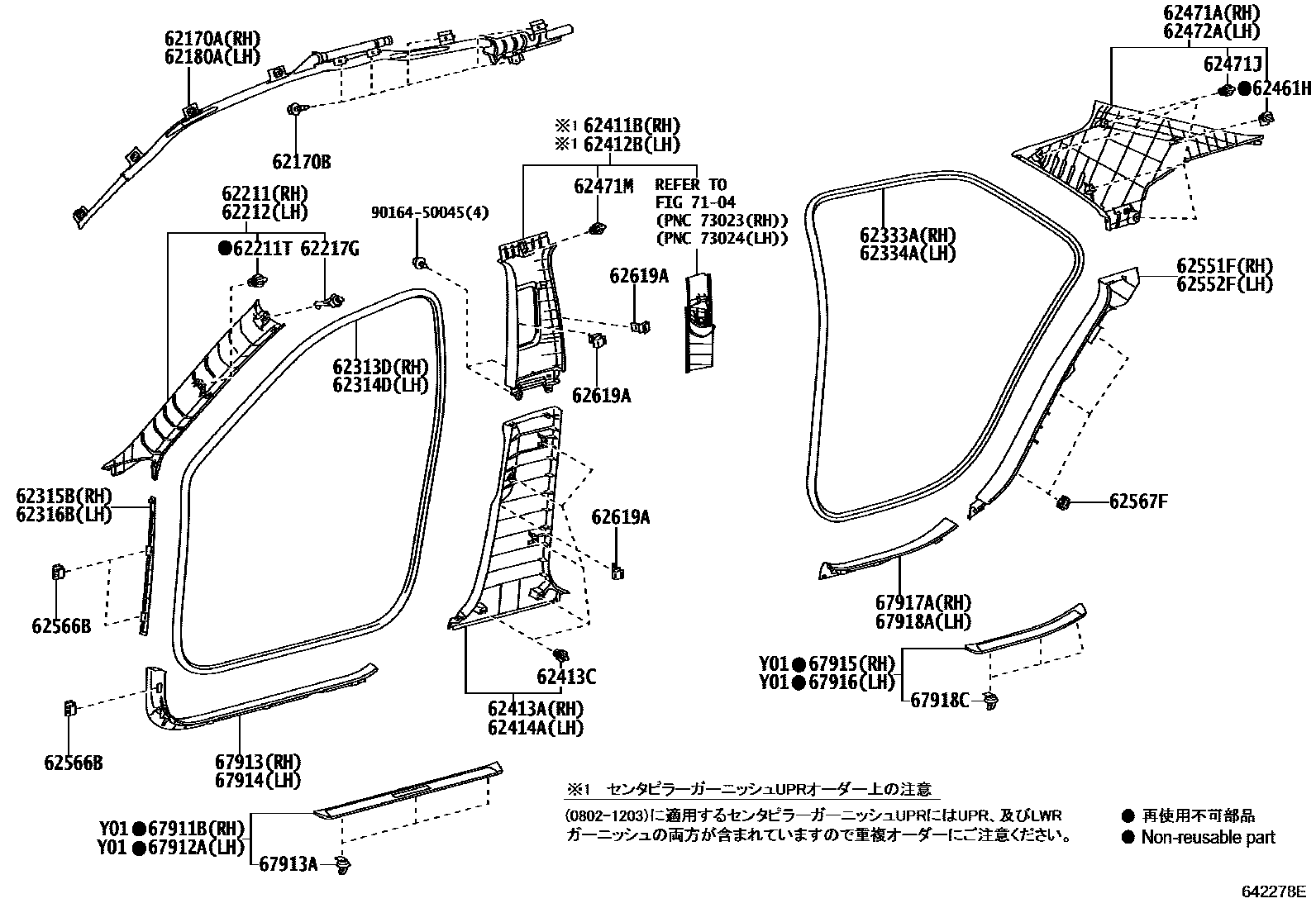

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-30110iGRS20#,GWS204200802-201002

62170BBOLT, W/WASHER

main90119-06869×10iGRS20#,GWS204200802-201002

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-30110iGRS20#,GWS204..CBU201002-201212

62211GARNISH, FRONT PILLAR, RH

main62211-30510-A1iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main62211-30510-B1iGRS200,201,202,203..ROY,ROYG200802-201002

GRAY,TRIM1#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2iGRS20#,GWS204200802-201002

62212GARNISH, FRONT PILLAR, LH

main62212-30520-A1iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main62212-30520-B1iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201212

GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33031×2iGRS20#,GWS204200802-201002

62313DTRIM, FRONT DOOR OPENING, RH

main62313-30270iGRS20#,GWS204200802-201002

main62313-30271iGRS20#,GWS204..CBU201111-201212

sub62313-30272

62314DTRIM, FRONT DOOR OPENING, LH

main62314-30190iGRS20#,GWS204200802-201002

main62314-30191iGRS20#,GWS204..CBU201111-201212

sub62314-30192

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-30110-A0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main62315-30110-B0iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main62315-30110-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK. BROWN,TRIM4#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-30100-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main62316-30100-B0iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main62316-30100-E0iGRS200,201,204,GWS204..ATH,HBD201002-201212

DK. BROWN,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-30240iGRS20#,GWS204200802-201002

main62333-30241iGRS20#,GWS204..CBU201111-201212

sub62333-30242

62334ATRIM, REAR DOOR OPENING, LH

main62334-30180iGRS20#,GWS204..CBU201002-201110

main62334-30181iGRS20#,GWS204..CBU201111-201212

sub62334-30182

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30440-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201203

sub62411-30H01

main62411-30440-B0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201203

sub62411-30H01

main62411-30441-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201204-201212

main62411-30441-B0iGRS200,201,202,203..(ROY,ROYG)..CBU201204-201212

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30440-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201203

sub62412-30H01

main62412-30440-B0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

sub62412-30H01

main62412-30441-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201204-201212

main62412-30441-B0iGRS200,201,202,203..(ROY,ROYG)..CBU201204-201212

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-30230-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201203

SHELL,TRIM0#

main62413-30230-B0iGRS20#,GWS204..CBU201002-201203

GRAY,TRIM1#

main62413-30230-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK. BROWN,TRIM4#

main62413-30231-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201204-201212

SHELL,TRIM0#

main62413-30231-B0iGRS20#,GWS204..CBU201204-201212

GRAY,TRIM1#

main62413-30231-E0iGRS200,201,204,GWS204..ATH,HBD201204-201212

DK. BROWN,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×10iGRS20#,GWS204..CBU201002-201212

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-30160-A0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main62414-30160-B0iGRS20#,GWS204200802-201002

GRAY,TRIM1#

main62414-30160-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK. BROWN,TRIM4#

main62414-30161-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201204-201212

SHELL,TRIM0#

main62414-30161-B0iGRS20#,GWS204..CBU201204-201212

GRAY,TRIM1#

main62414-30161-E0iGRS200,201,204,GWS204..ATH,HBD201204-201212

DK. BROWN,TRIM4#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-11089-A0×2iGRS20#,GWS204200802-201002

IVORY

62471AGARNISH, ROOF SIDE, INNER RH

main62471-30520-A1iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main62471-30520-B1iGRS200,201,202,203..ROY,ROYG200802-201002

GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188×8iGRS20#,GWS204200802-201002

62471MCLIP

main90467-10167×2iGRS20#,GWS204200802-201002

62472AGARNISH, ROOF SIDE, INNER LH

main62472-30490-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main62472-30490-B1iGRS200,201,202,203..ROY,ROYG200802-201002

GRAY,TRIM1#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-30290-A0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main62551-30290-B0iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main62551-30290-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK. BROWN,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-30270-A0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main62552-30270-B0iGRS20#,GWS204200802-201002

GRAY,TRIM1#

main62552-30270-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK. BROWN,TRIM4#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010×6iGRS20#,GWS204..CBU201002-201212

62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010×6iGRS20#,GWS204200802-201002

62619APLATE, SIDE TRIM SET

main62619-30030×6iGRS20#,GWS204200802-201002

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-30220iGRS20#,GWS204200802-201002

main67911-30240iGRS20#..ATH,ROY200904-201002

main67911-30250iGRS200,201,202,203..ROY..CBU201111-201203

main67911-30260iGWS204201012-201212

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-30230iGRS20#,GWS204..CBU201002-201212

main67912-30250iGRS200,201..ATH201012-201203

main67912-30260iGRS200,201,202,203..ROY..CBU201111-201203

main67912-30270iGWS204201012-201212

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30280-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201006

SHELL,TRIM0#

main67913-30280-B0iGRS20#,GWS204200802-201002

GRAY,TRIM1#

main67913-30280-E0iGRS200,201,204,GWS204..ATH,HBD200802-201002

DK. BROWN,TRIM4#

main67913-30281-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201007-201212

SHELL,TRIM0#

main67913-30281-B0iGRS20#,GWS204..CBU201007-201212

GRAY,TRIM1#

main67913-30281-E0iGRS200,201,204,GWS204..ATH,HBD201007-201212

DK. BROWN,TRIM4#

67913ACLIP(FOR SCUFF PLATE)

main90467-09212×6iGRS20#,GWS204200802-201002

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30280-A0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main67914-30280-B0iGRS20#,GWS204200802-201002

GRAY,TRIM1#

main67914-30280-E0iGRS200,201,204,GWS204..ATH,HBD201002-201212

DK. BROWN,TRIM4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-30130iGRS20#,GWS204..CBU201002-201212

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-30140iGRS20#,GWS204..CBU201002-201212

67917APLATE, REAR DOOR SCUFF, RH

main67917-30230-A0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main67917-30230-B0iGRS20#,GWS204..CBU201002-201212

GRAY,TRIM1#

main67917-30230-E0iGRS200,201,204,GWS204..ATH,HBD201002-201212

DK. BROWN,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-30210-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main67918-30210-B0iGRS20#,GWS204200802-201002

GRAY,TRIM1#

main67918-30210-E0iGRS200,201,204,GWS204..ATH,HBD201002-201212

DK. BROWN,TRIM4#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-09212×6iGRS20#,GWS204..CBU201002-201212

7104

9016450045

main90164-50045

40 parts on this diagram · 1 diagram in section
