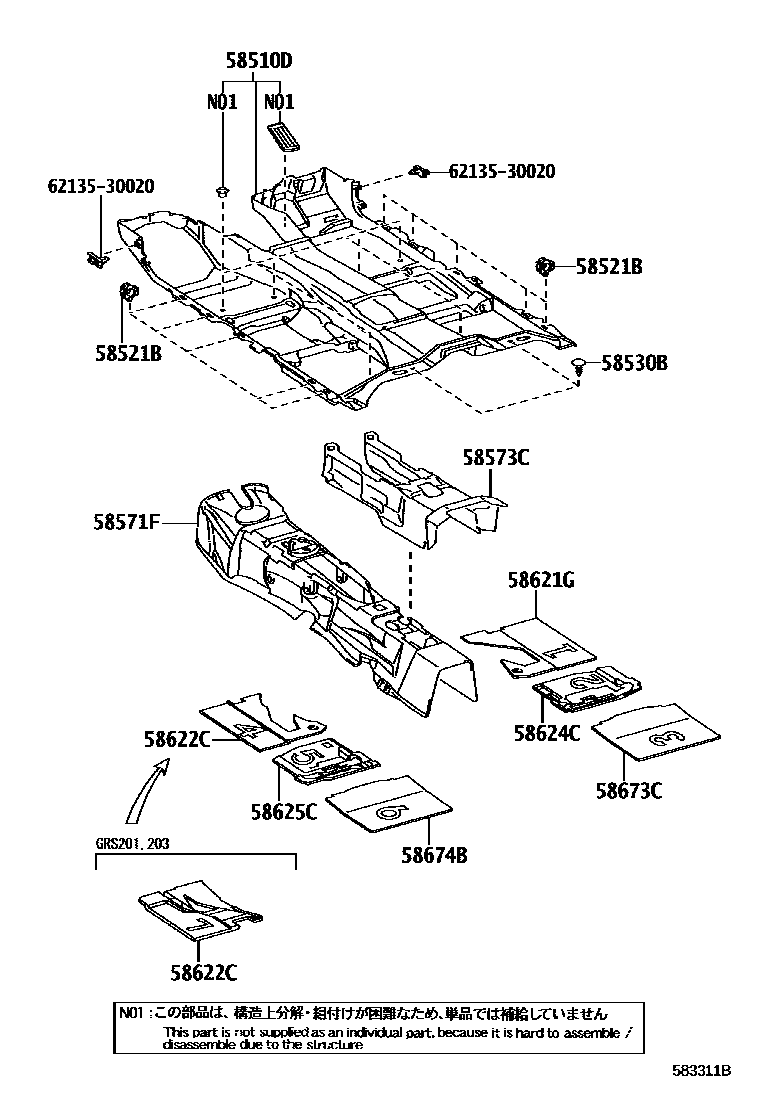

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-30A70-A0iGRS200,202,GWS204..HBD,ROY,ROYG200802-201002

SHELL,TRIM0#

main58510-30A70-A1iGRS200,202,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main58510-30A70-B0iGRS200,202,204,GWS204200802-201002

GRAY,TRIM1#

main58510-30A70-B1iGRS200,202,204,GWS204..CBU201002-201212

GRAY,TRIM1#

main58510-30A70-E0iGRS200,204,GWS204..ATH,HBD200802-201002

DK.BROWN,TRIM4#

main58510-30A70-E1iGRS200,204,GWS204..ATH,HBD201002-201212

DK.BROWN,TRIM4#

main58510-30A80-A0iGRS201,203..ROY200802-201002

SHELL,TRIM0#

main58510-30A80-A1iGRS201,203..ROY..CBU201002-201212

SHELL,TRIM0#

main58510-30A80-B0iGRS201,203200802-201002

GRAY,TRIM1#

main58510-30A80-B1iGRS201,203..CBU201002-201212

GRAY,TRIM1#

main58510-30A80-E0iGRS201..ATH200802-201002

DK.BROWN,TRIM4#

main58510-30A80-E1iGRS201..ATH201002-201212

DK.BROWN,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-30140×12iGRS20#,GWS204..CBU201002-201212

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B8×2iGRS20#,GWS204200802-201002

LT.GRAY

58571FPAD, FRONT FLOOR, FRONT

main58571-30040iGRS200,202,204,GWS204..CBU201002-201212

main58571-30140iGRS201,203200810-201002

main58571-30150iGRS201,203200802-200809

58573CPAD, FRONT FLOOR CENTER

main58573-30090iGRS20#,GWS204200802-201002

sub58573-30091

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30150iGRS20#,GWS204200802-201002

sub58621-30151

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30160iGRS200,202,204,GWS204200802-201002

sub58622-30161

main58622-30170iGRS201,203..CBU201002-201212

sub58622-30171

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30130iGRS20#,GWS204200802-201002

sub58624-30131

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30080iGRS20#,GWS204200802-201002

sub58625-30081

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-30020iGRS20#,GWS204200802-201002

sub58673-30021

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30020iGRS20#,GWS204200802-201002

sub58674-30021

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

12 parts on this diagram · 1 diagram in section
