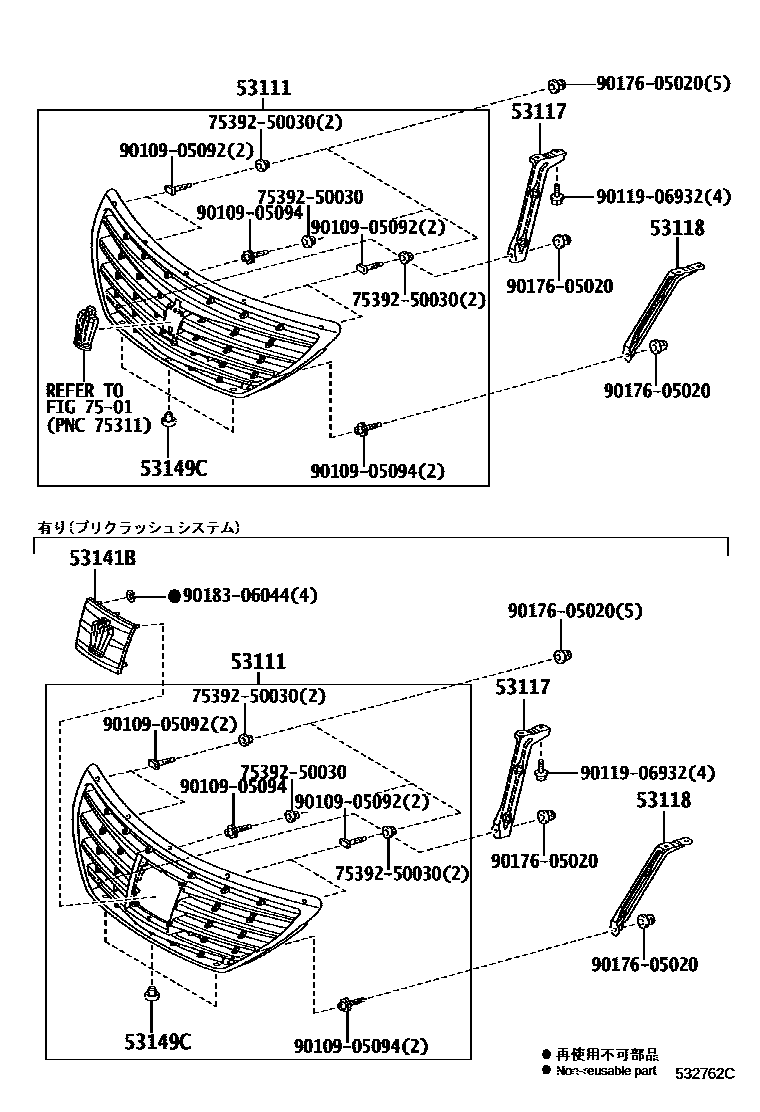

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

53111GRILLE, RADIATOR

main53100-30360iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200907

main53100-30361iGRS200,201,202,203..(ROY,ROYG)..CBU200908-201002

sub53100-30362

main53100-30390-B1iGRS200,201,204..ATH200802-200907

PREMIUM SILVER PEARL,1F3

main53100-30390-D0iGRS200,201,204..ATH200802-200907

BLACKISH RED MC.,3R0

main53100-30390-G0iGRS200,201,204..ATH200802-200907

DK.GREEN MC.,6V4

main53100-30390-J0iGRS200,201,204..ATH200802-200907

DK.BLUE MC.,8S6

main53100-30391-B1iGRS200,201,204..ATH200908-201002

PREMIUM SILVER PEARL,1F3

sub53100-30392

main53100-30391-D0iGRS200,201,204..ATH200908-201002

BLACKISH RED MC.,3R0

sub53100-30392

main53100-30391-G0iGRS200,201,204..ATH200908-201002

DK.GREEN MC.,6V4

sub53100-30392

main53100-30391-J0iGRS200,201,204..ATH200908-201002

DK.BLUE MC.,8S6

sub53100-30392

main53100-30470iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201109

main53100-30471iGRS200,201,202,203..(ROY,ROYG)..CBU201110-201212

sub53101-30551

sub75311-30450

main53100-30490-B0iGRS200,201,204..ATH201002-201109

PREMIUM SILVER PEARL,1F3

main53100-30490-D0iGRS200,201,204..ATH201002-201109

BLACKISH RED MC.,3R0

main53100-30490-F0iGRS200,201,204..ATH201002-201109

SILKY GOLD M.M.,5A4

main53100-30490-J0iGRS200,201,204..ATH201002-201109

DK.BLUE MC.,8S6

main53100-30491-B0iGRS200,201,204..ATH201110-201212

PREMIUM SILVER PEARL,1F3

sub53100-30918

sub75311-30450

main53100-30491-D0iGRS200,201,204..ATH201110-201212

BLACKISH RED MC.,3R0

sub53100-30918

sub75311-30450

main53100-30491-F0iGRS200,201,204..ATH201110-201212

SILKY GOLD M.M.,5A4

sub53100-30918

sub75311-30450

main53100-30491-J0iGRS200,201,204..ATH201110-201212

DK.BLUE MC.,8S6

sub53100-30918

sub75311-30450

main53100-30510iGWS204201002-201109

main53100-30511iGWS204201110-201212

main53100-30905iGWS204200805-200907

main53100-30910iGWS204200908-201002

sub53100-30913

main53100-30450-A0iGRS200,201,204..ATH200904-200907

main53100-30450-B1iGRS200,201,204..ATH200904-200907

main53100-30450-B2iGRS200,201,204..ATH200904-200907

main53100-30450-C0iGRS200,201,204..ATH200904-200907

main53100-30451-A0supersedes 53100-30491-A0iGRS200,201,204..ATH200908-201002

sub53100-30452

main53100-30451-B1supersedes 53100-30491-B1iGRS200,201,204..ATH200908-201002

sub53100-30452

main53100-30451-B2iGRS200,201,204..ATH200908-201002

sub53100-30452

main53100-30451-C0supersedes 53100-30491-C0iGRS200,201,204..ATH200908-201002

sub53100-30452

main53100-30480iGRS202,203..CBU201002-201109

main53100-30481iGRS202,203..CBU201110-201212

main53100-30500-A0iGRS204201002-201109

main53100-30500-B0iGRS204201002-201109

main53100-30500-B1iGRS204201002-201109

main53100-30500-C0iGRS204201002-201109

main53100-30500-D0iGRS204201002-201109

main53100-30500-F0iGRS204201002-201109

main53100-30500-J0iGRS204201002-201109

main53100-30501-A0iGRS204201110-201212

main53100-30501-B0iGRS204201110-201212

main53100-30501-B1iGRS204201110-201212

main53100-30501-C0iGRS204201110-201212

main53100-30501-D0iGRS204201110-201212

main53100-30501-F0iGRS204201110-201212

main53100-30501-J0iGRS204201110-201212

main53100-30610iGRS200,201..ROY..CBU201012-201109

main53100-30611iGRS200,201..ROY..CBU201110-201203

sub53100-30921

sub75311-30490

main53100-30620-A0iGRS200,201..ATH201012-201109

main53100-30620-B0iGRS200,201..ATH201012-201109

main53100-30620-B1iGRS200,201..ATH201012-201109

main53100-30620-C0iGRS200,201..ATH201012-201109

main53100-30621-A0iGRS200,201..ATH201110-201203

sub53100-30917

sub75311-30500

main53100-30621-B0iGRS200,201..ATH201110-201203

sub53100-30917

sub75311-30500

main53100-30621-B1iGRS200,201..ATH201111-201203

sub53100-30917

sub75311-30500

main53100-30621-C0iGRS200,201..ATH201111-201203

sub53100-30917

sub75311-30500

main53100-30630iGRS200,201..ROY..CBU201203-201212

sub53100-30921

sub75311-30450

main53100-30640-A0iGRS200,201..ATH201203-201212

sub53100-30917

sub75311-30450

main53100-30640-B0iGRS200,201..ATH201203-201212

sub53100-30917

sub75311-30450

main53100-30640-B1iGRS200,201..ATH201203-201212

sub53100-30917

sub75311-30450

main53100-30640-C0iGRS200,201..ATH201203-201212

sub53100-30917

sub75311-30450

main53100-30903iGRS202,203..CBU200802-200907

main53100-30904-A0iGRS204200802-200907

main53100-30904-B0iGRS204200802-200907

main53100-30904-B1iGRS204200802-200907

main53100-30904-C0iGRS204200802-200907

main53100-30904-D0iGRS204200802-200907

main53100-30904-G0iGRS204200802-200907

main53100-30904-J0iGRS204200802-200907

main53100-30908iGRS200,201..ROY..CBU200908-201002

sub53100-30912

main53100-30909-A0iGRS204200908-201002

sub53100-30914

main53100-30909-B0iGRS204200908-201002

sub53100-30914

main53100-30909-B1iGRS204200908-201002

sub53100-30914

main53100-30909-C0iGRS204200908-201002

sub53100-30914

main53100-30909-D0iGRS204200908-201002

sub53100-30914

main53100-30909-G0iGRS204200908-201002

sub53100-30914

main53100-30909-J0iGRS204200908-201002

sub53100-30914

53117BRACKET, RADIATOR GRILLE SUPPORT, RH

main53117-30070iGRS200,201,204..ATH201002-201212

main53117-30080iGRS200,201,204,GWS204..ATH,HBD200802-201002

main53117-30160iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

53118BRACKET, RADIATOR GRILLE SUPPORT, LH

main53118-30060iGRS200,201,204..ATH201002-201212

main53118-30070iGRS200,201,204,GWS204..ATH,HBD200802-201002

main53118-30150iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

53141BGARNISH, RADIATOR GRILLE, NO.1

main53141-30110iGWS204200805-201002

main53141-30070iGRS204200802-201002

main53141-30080iGRS202,203200802-201002

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-30030×3iGRS20#,GWS204..CBU201002-201212

main53149-30040×3iGRS20#,GWS204200802-201002

7501

7539250030RETAINER, OUTSIDE MOULDING

main75392-50030

9010905092

main90109-05092

9010905094

main90109-05094

9011906932

main90119-06932

9017605020

main90176-05020

9018306044

main90183-06044

12 parts on this diagram · 6 diagrams in section
