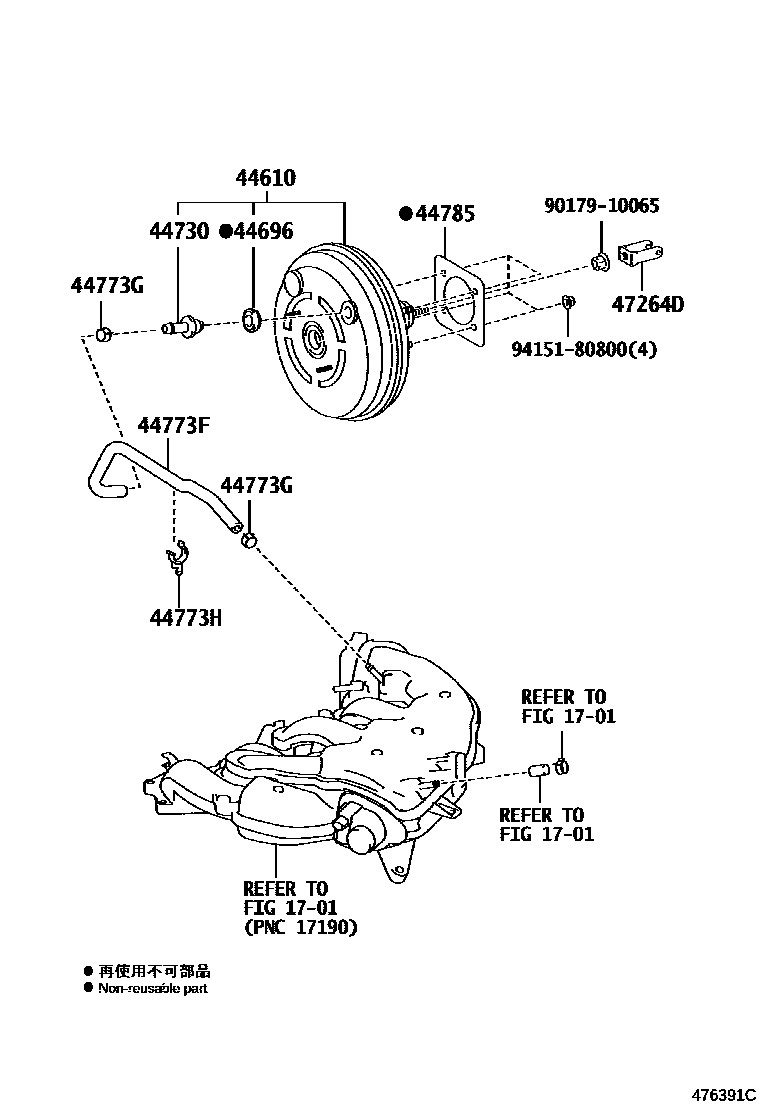

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-30B20iGRS200,201,202,203200802-200803

main44610-30B21iGRS200,201,202,203..CBU200803-201212

main44610-30B30iGRS204200802-200803

main44610-30B31iGRS204200803-201212

44696GROMMET, CHECK VALVE

main90480-24439iGRS20#200802-201212

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGRS20#..CBU200802-201212

44773FHOSE, UNION TO CHECK VALVE

main44773-22540iGRS200,201,202,203..CBU200802-201212

main44773-22550iGRS204200910-201212

main44773-30580iGRS204200802-201212

main44773-30600iGRS204200802-200910

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGRS200,201,202,203200802-201212

44773HCLAMP(FOR UNION TO CHECK VALVE HOSE)

main90469-17003iGRS200,201,202,203200802-201212

44785GASKET, BRAKE BOOSTER

main44785-47010iGRS20#200802-201212

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGRS20#200802-201212

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
