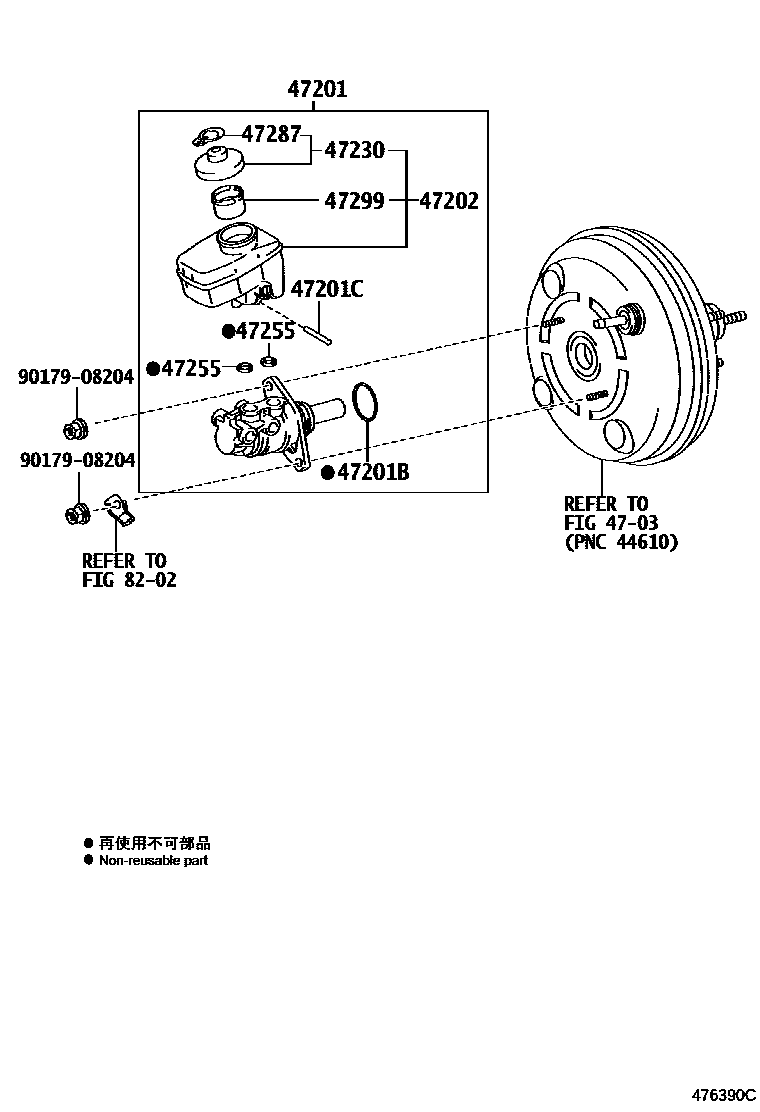

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30790iGRS20#200802-201202

sub47201-30791

main47201-30791iGRS20#..CBU201203-201204

sub47201-30792

main47201-30792iGRS20#..CBU201205-201212

main47201-30800iGWS204200805-201212

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGRS20#..CBU200802-201212

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRS20#200802-201212

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30190iGWS204200805-201212

main47220-30210iGRS20#..CBU200802-201212

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGRS20#,GWS204200802-201212

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGWS204200805-201212

main90029-48001iGRS20#..CBU200802-201212

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRS20#,GWS204200802-201212

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRS20#..CBU200802-201212

main47299-30190iGWS204200805-201212

8202

9017908204

main90179-08204
