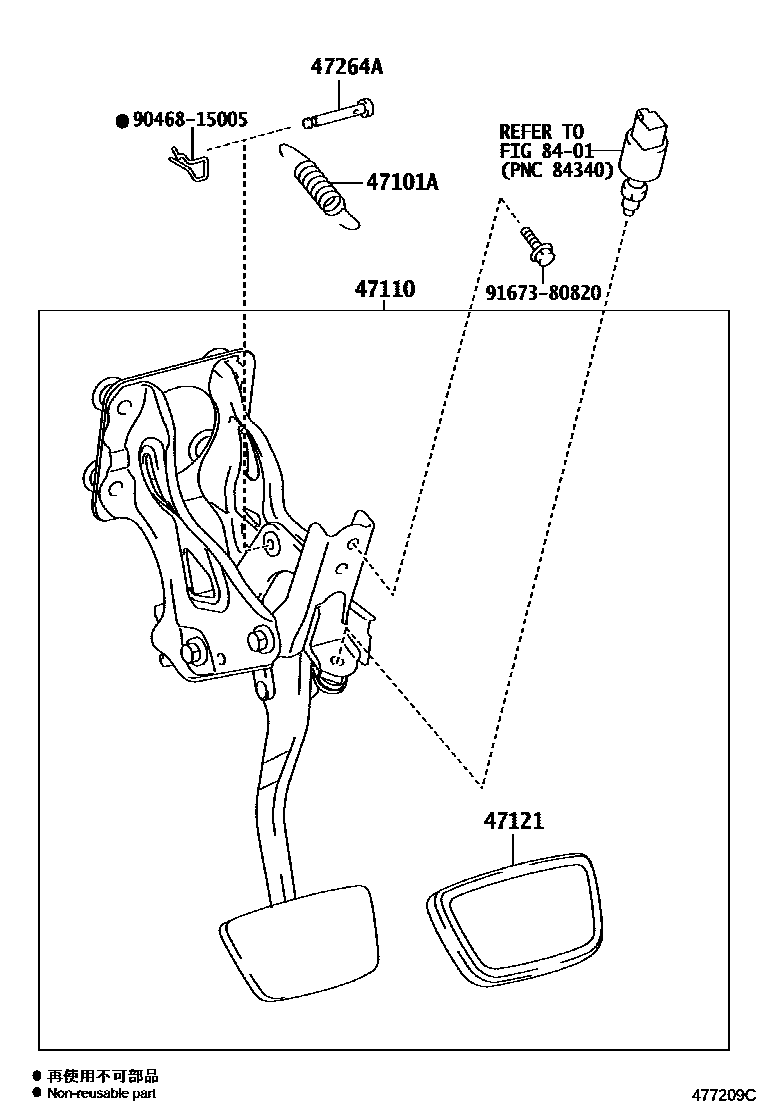

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iGWS204200805-201002

main90507-13009iGRS20#..CBU201002-201212

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30450iGRS20#200802-200810

main47110-30451iGRS20#200811-200909

main47110-30452iGRS20#..CBU201002-201212

sub47110-30453

main47110-30460iGWS204200805-200810

main47110-30461iGWS204200811-200909

main47110-30462iGWS204200910-201002

47121PAD, BRAKE PEDAL

main47121-50020iGRS20#,GWS204200802-201002

47264APIN(FOR PUSH ROD)

main90249-06180iGRS20#200802-201002

main90249-10199iGWS204200805-201002

8401

9046815005

main90468-15005

9167380820

main91673-80820

7 parts on this diagram · 2 diagrams in section
