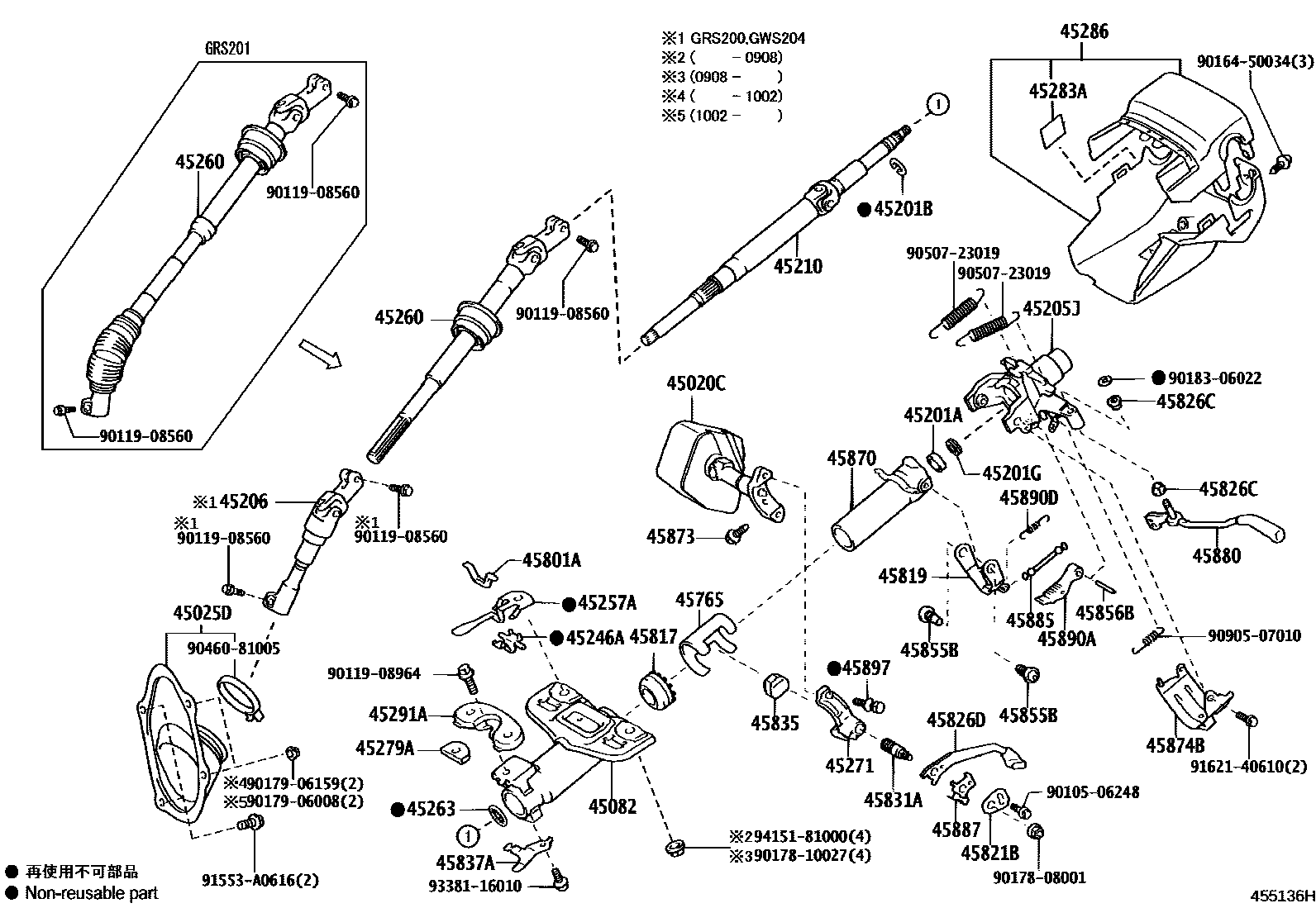

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45210SHAFT ASSY, STEERING MAIN
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45263RING, STEERING COLUMN, NO.1
45271CLAMP, STEERING COLUMN, UPPER
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
BLACK,TRIM1#
BLACK,TRIM1#,4#
DK. BROWN,TRIM0#
45291ASUPPORT, STEERING COLUMN TUBE
45765GUIDE, TELESCOPIC STEERING
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45817STOPPER, STEERING SHAFT THRUST
45819RETAINER, TILT LEVER
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826CBUSH(FOR STEERING TILT LEVER)
45826DLEVER, STEERING TELESCOPIC
45831ABOLT, TELESCOPE LEVER LOCK
45835WEDGE, LOCK
45837ABRACKET, STEERLNG LOWER TUBE, NO.1
45855BSHAFT, T1LT STEERING, NO.1
45856BSHAFT, T1LT STEERING, NO.2
45870TUBE ASSY, STEERING COLUMN
45873STOPPER, STEERING COLUMN TUBE
45874BPROTECTOR, STEERING COLUMN, NO.1
45880LEVER ASSY, STEERING TILT
45885LINK, TILT LEVER
45887CLIP, STEERING TELESCOPIC LEVER
45890APAWL ASSY, TILT STEERING
45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)
45897BOLT, STEERING LOCK SET
9010506248
main90105-06248
9011908560
main90119-08560
9011908964
main90119-08964
9016450034
main90164-50034
9017808001
main90178-08001
9017810027
main90178-10027
9017906008
main90179-06008
9017906159
main90179-06159
9018306022
main90183-06022
9046081005
main90460-81005
9050723019
main90507-23019
9090507010
main90905-07010
91553A0616
main91553-A0616
9162140610
main91621-40610
9338116010
main93381-16010
9415181000
main94151-81000
55 parts on this diagram · 7 diagrams in section
