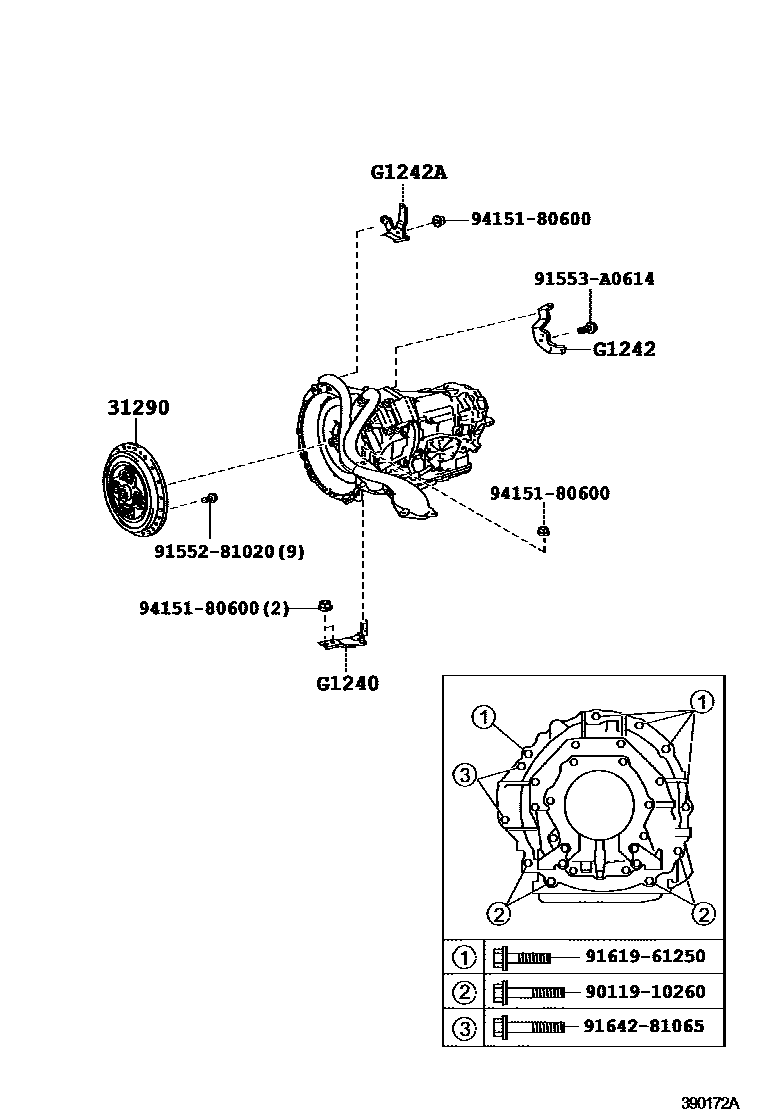

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1TRANSMISSION LH SIDE 0003 1TRANSMISSION RH SIDE

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGWS204200805-201212

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124030010iGWS204200805-201212

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124230010iGWS204200805-201212

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124230020iGWS204200805-201212

9011910260

main90119-10260

9155281020

main91552-81020

91553A0614

main91553-A0614

9161961250

main91619-61250

9164281065

main91642-81065

9415180600

main94151-80600

10 parts on this diagram · 3 diagrams in section
