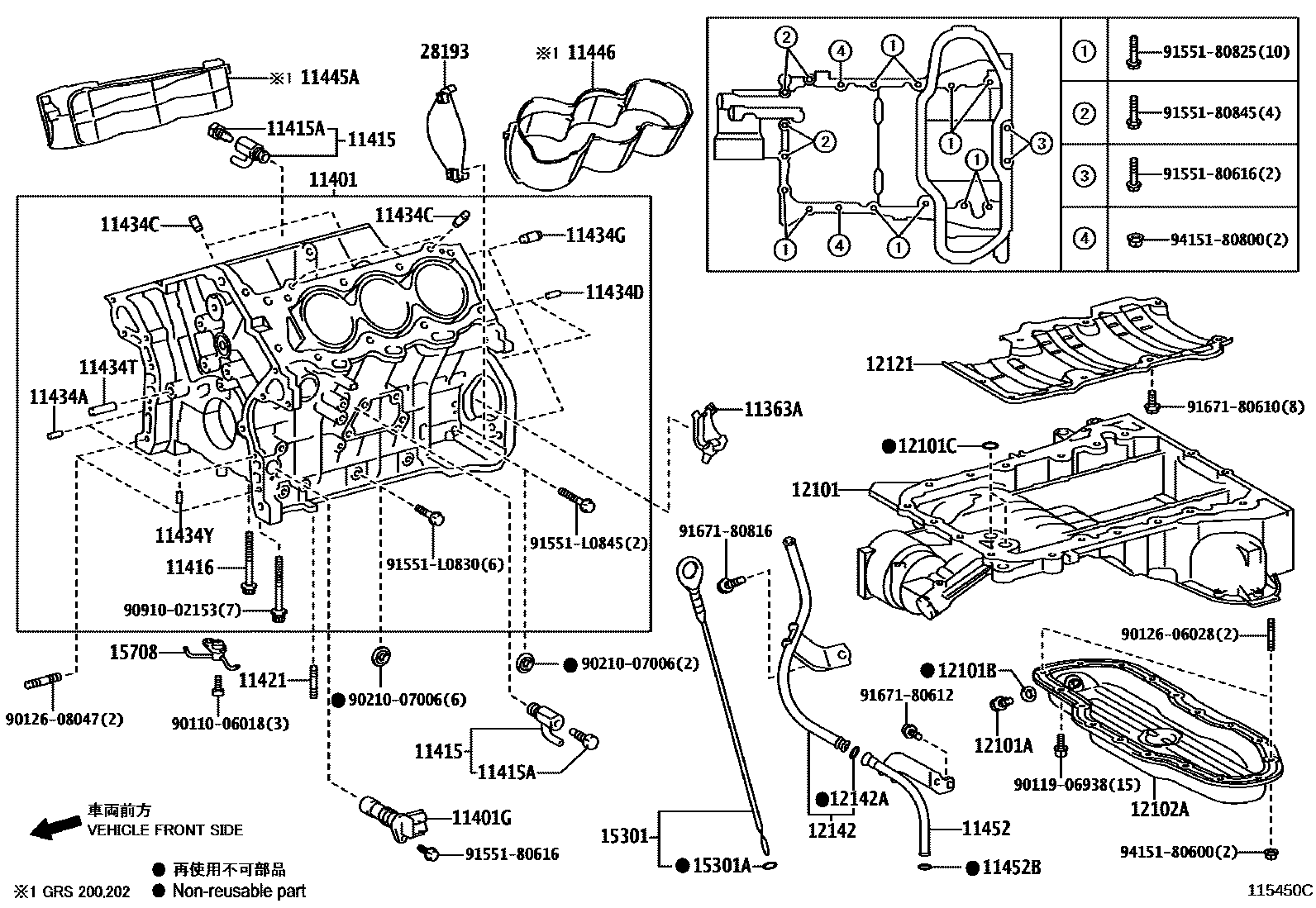

CYLINDER BLOCK

0001 1 0002 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31010i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

sub11363-31030

11401BLOCK SUB-ASSY, CYLINDER

main11401-39775i2GRFSE..GRS204,GWS204201002-201212

sub11401-39776

main11401-80755i3GRFSE..GRS202,203200802-201002

sub11401-80816

main11401-80758i4GRFSE..GRS200,201200802-201002

main11401-80810i4GRFSE..GRS200,201..CBU201211-201212

sub11401-80817

11401GSENSOR, CRANK POSITION

main90919-05057i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09129×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154×9i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11421BOLT, STUD(FOR OIL PAN)

main90126-08051×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

main90126-08052×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201005-201212

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-04097×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

11445ASPACER, CYLINDER BLOCK WATER JACKET, RH

main11445-31010i3GRFSE..GRS202,203200802-201002

main11445-31020i4GRFSE..GRS200,201..CBU201002-201212

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-31010i3GRFSE..GRS202,203..CBU201002-201212

main11446-31020i4GRFSE..GRS200,201..CBU201002-201212

11452GUIDE, OIL LEVEL GAGE

main11452-31040i2GRFSE,3GRFSE,4GRFSE..GRS200,202,204,GWS204..CBU201002-201212

main11452-31050i3GRFSE,4GRFSE..GRS201,203200802-201002

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

12101PAN SUB-ASSY, OIL

main12101-31101i2GRFSE,3GRFSE,4GRFSE..GRS200,202,204,GWS204200802-201002

main12101-31110i3GRFSE,4GRFSE..GRS201,203..CBU201002-201212

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201212

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201212

12101CRING, O(FOR OIL PAN)

main12151-31010×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201212

12102APAN SUB-ASSY, OIL, NO.2

main12102-31030i2GRFSE,3GRFSE,4GRFSE..GRS200,202,204,GWS204..CBU201002-201212

main12102-31040i3GRFSE,4GRFSE..GRS201,203200802-201002

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31060i4GRFSE..GRS200,201200811-201002

main12121-31080i2GRFSE,3GRFSE..GRS202,203,204,GWS204..CBU201002-201212

12142GUIDE, OIL LEVEL GAGE, NO.2

main12142-31010i2GRFSE,3GRFSE,4GRFSE..GRS200,202,204,GWS204200802-201002

main12142-31020i3GRFSE,4GRFSE..GRS201,203200802-201002

12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)

main96721-19010i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31070i3GRFSE,4GRFSE..GRS201,203200802-201002

main15301-31080i2GRFSE,3GRFSE,4GRFSE..GRS200,202,204,GWS204..CBU201002-201212

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201212

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31010×3i3GRFSE,4GRFSE..GRS200,201,202,203..CBU201002-201212

main15708-31030×3i2GRFSE..GRS204,GWS204201003-201212

main15708-31040×3i2GRFSE..GRS204,GWS204201002-201003

28193INSULATOR, STARTER HOLE

main28193-31010i2GRFSE..GWS204200805-201002

9011006018

main90110-06018

9011906938

main90119-06938

9012606028

main90126-06028

9012608047

main90126-08047

9021007006

main90210-07006

9091002153

main90910-02153

9155180616

main91551-80616

9155180825

main91551-80825

9155180845

main91551-80845

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167180610

main91671-80610

9167180612

main91671-80612

9167180816

main91671-80816

9415180600

main94151-80600

9415180800

main94151-80800

45 parts on this diagram · 2 diagrams in section
