STANDARD TOOL

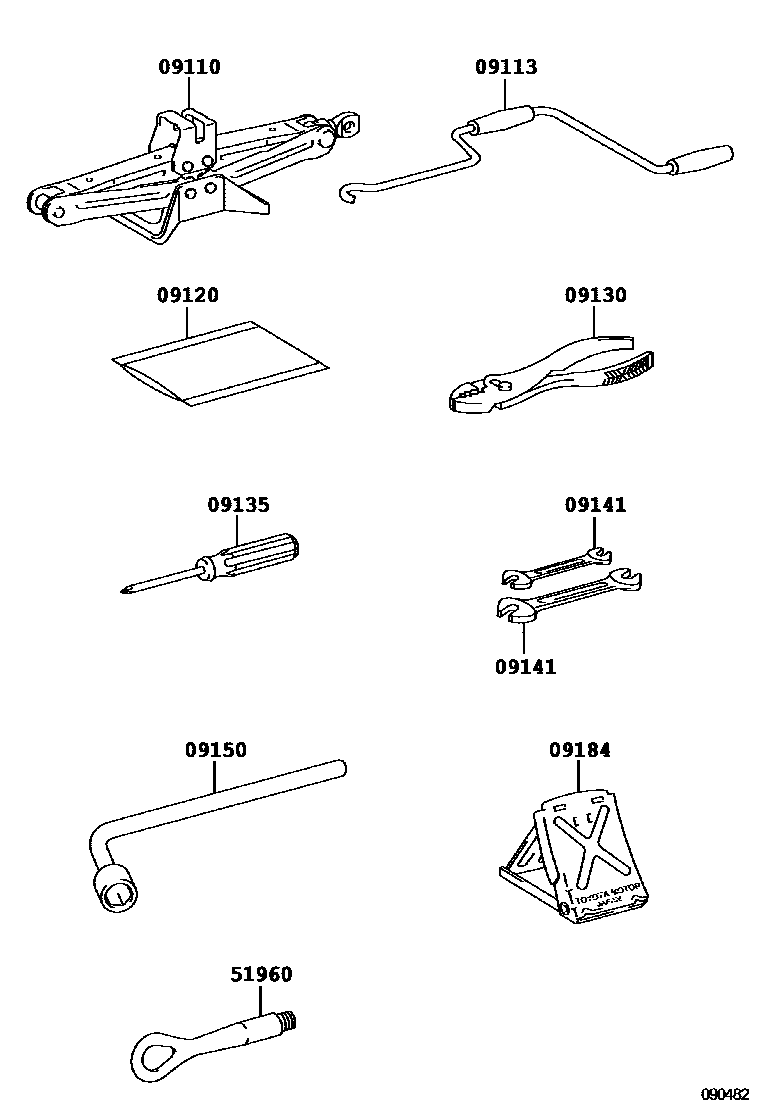

Parts diagram

09110JACK ASSY

main09111-33030i201010-201212

main09111-50051i200802-201009

09113HANDLE, JACK

main09113-22020i200802-201212

09120BAG, TOOL

main09120-28040i200802-201212

09130PLIERS

main99913-11500i200802-201212

09135DRIVER, SCREW

main99915-10700i200802-201212

09141SPANNER

main99914-10810i200802-201212

main99914-11214i200802-201212

09150WRENCH, HUB NUT BOX

main09150-26010i200908-201212

main09150-40010i200802-201212

main09150-40010i200802-200907

09184STOPPER, WHEEL

main09184-00010i200802-201212

51960HOOK ASSY, FRONT

main51961-30020i200802-201212

9 parts on this diagram · 1 diagram in section
