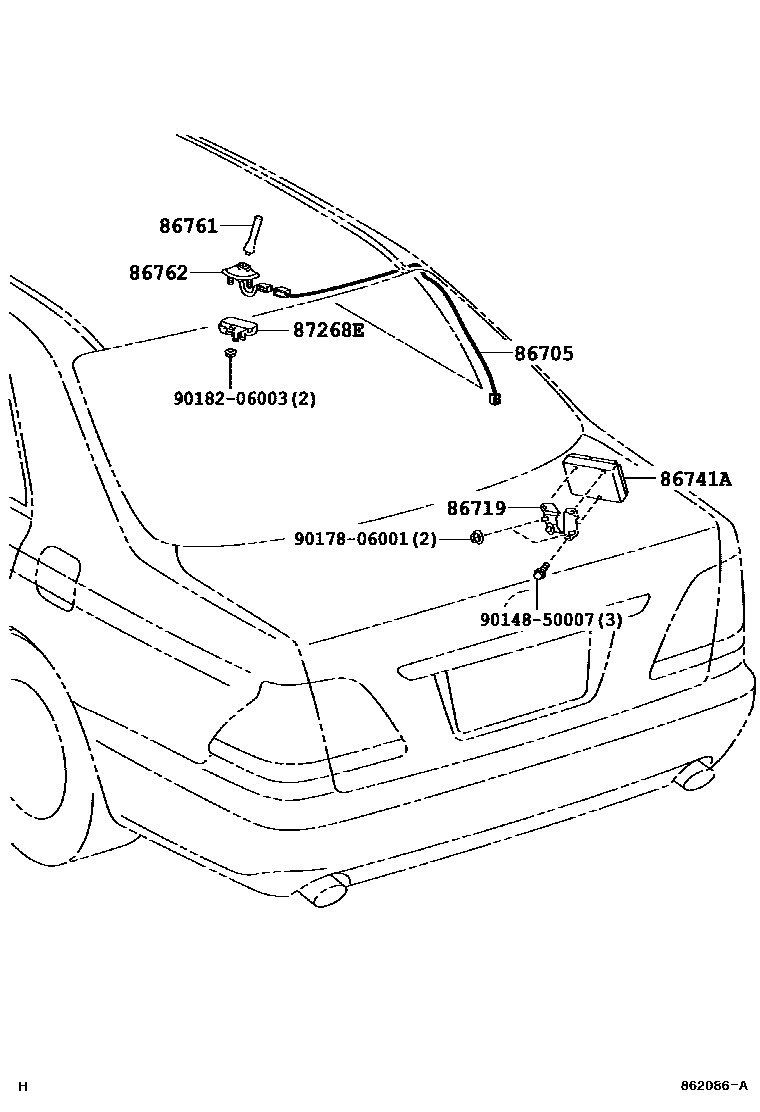

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-30090iGRS181;GRS180,182,183..ATH,ROY200312-200509

main86705-30090iGRS181;GRS180,182,183,184..ATH,ROY200509-200802

main86705-30110iUZS18#200406-200606

main86705-30160iGRS180..ROYEX200402-200408

86719BRACKET, TELEPHONE

main86719-30220iGRS181;GRS180,182,183..ATH,ROY200312-200509

main86719-30230iUZS18#200406-200606

86741ATRANSCEIVER, TELEMATICS

main86741-30010iGRS181;GRS180,182,183,184..ATH,ROY200509-200511

sub86741-30011

main86741-30011iGRS181;GRS180,182,183,184..ATH,ROY200512-200802

sub86741-53010

main86741-30011iUZS18#200606

sub86741-53010

main86741-46010iGRS181;GRS180,182,183..ATH,ROY200312-200509

sub86741-24010

main86741-46010iUZS18#200312-200606

sub86741-24010

86761ROD, TELEPHONE ANTENNA

main86761-50041iGRS182,UZS18#..A,C,ROYG200312-200606

main86761-50041iGRS181;GRS180,182,183,184..ATH,ROY200509-200802

86762BASE, TELEPHONE ANTENNA

main86762-30010iUZS18#200509-200606

main86762-30010iGRS181;GRS180,182,183,184..ATH,ROY200509-200802

main86762-50042iGRS182,UZS18#..A,C,ROYG200312-200508

87268EPROTECTOR, TELEPHONE ANTENNA

main87268-50011iGRS182,UZS18#..A,C,ROYG200312-200606

main87268-50011iGRS181;GRS180,182,183,184..ATH,ROY200509-200802

9014850007

main90148-50007

9017806001

main90178-06001

9018206003

main90182-06003

9 parts on this diagram · 3 diagrams in section
