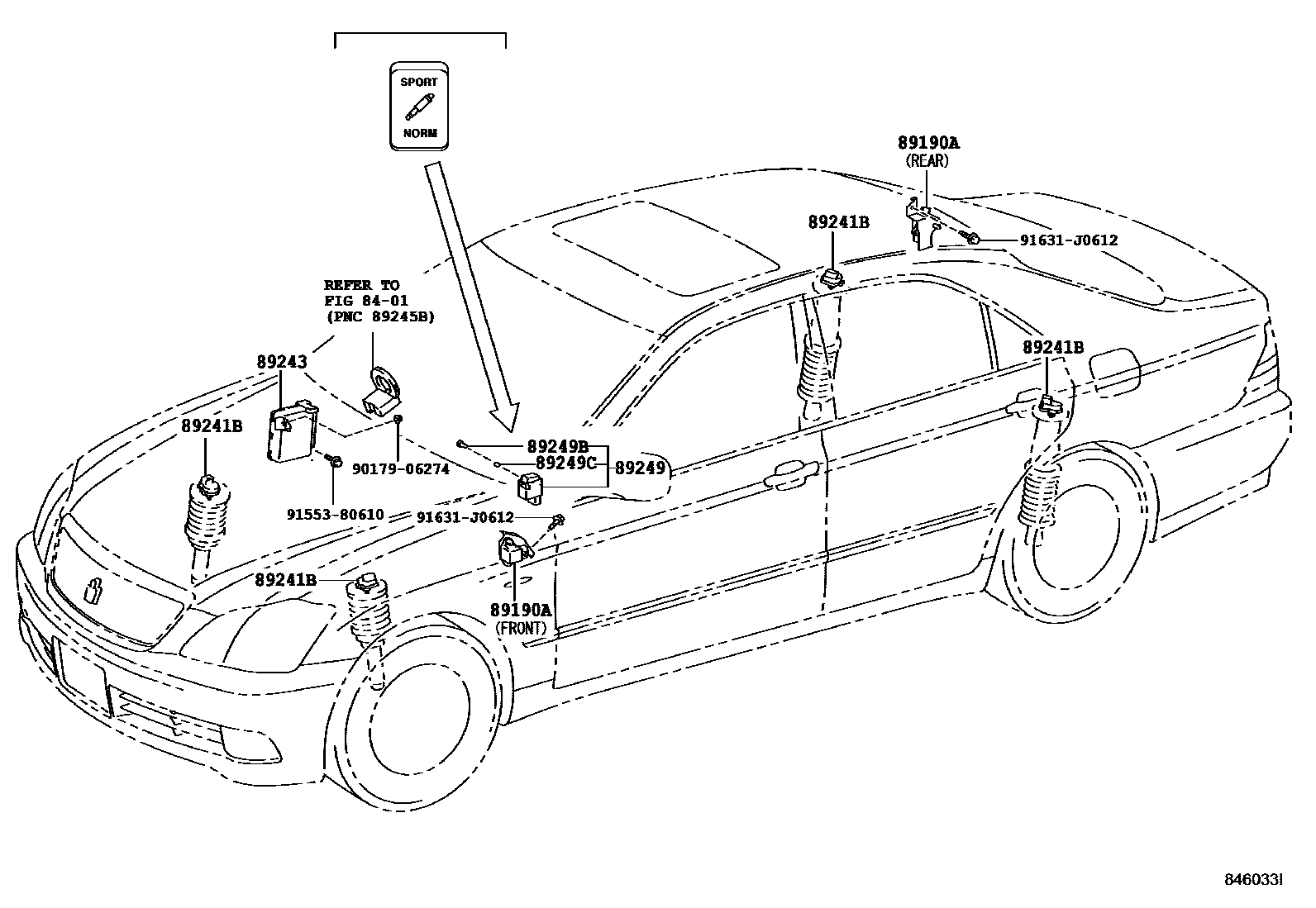

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

8401

89190ASENSOR ASSY, ACCELERATION

main89190-30010iUZS18#200312-200802

main89190-30020iGRS180,182..ATH200312-200802

sub89190-30021

main89191-50020iUZS18#200406-200606

89241BACTUATOR, ABSORBER CONTROL

main89241-30040iUZS18#200312-200812

sub89241-30041

89243COMPUTER, ABSORBER CONTROL

main89243-30080iGRS180,182..ATH200312-200401

sub89243-30081

main89243-30081iGRS180,182..ATH200402-200509

sub89243-30082

main89243-30082iGRS180,184..ATH200509-200608

sub89243-30083

main89243-30083iGRS180,184..ATH200609-200802

89249SWITCH, ABSORBER CONTROL

main89249-30060iGRS180..5FC..ATH;GRS182,UZS18#..A,ATH,C200312-200812

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10820iGRS180,182..ATH200312-200802

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10670iUZS18#200312-200802

9017906274

main90179-06274

9155380610

main91553-80610

91631J0612

main91631-J0612

10 parts on this diagram · 2 diagrams in section
