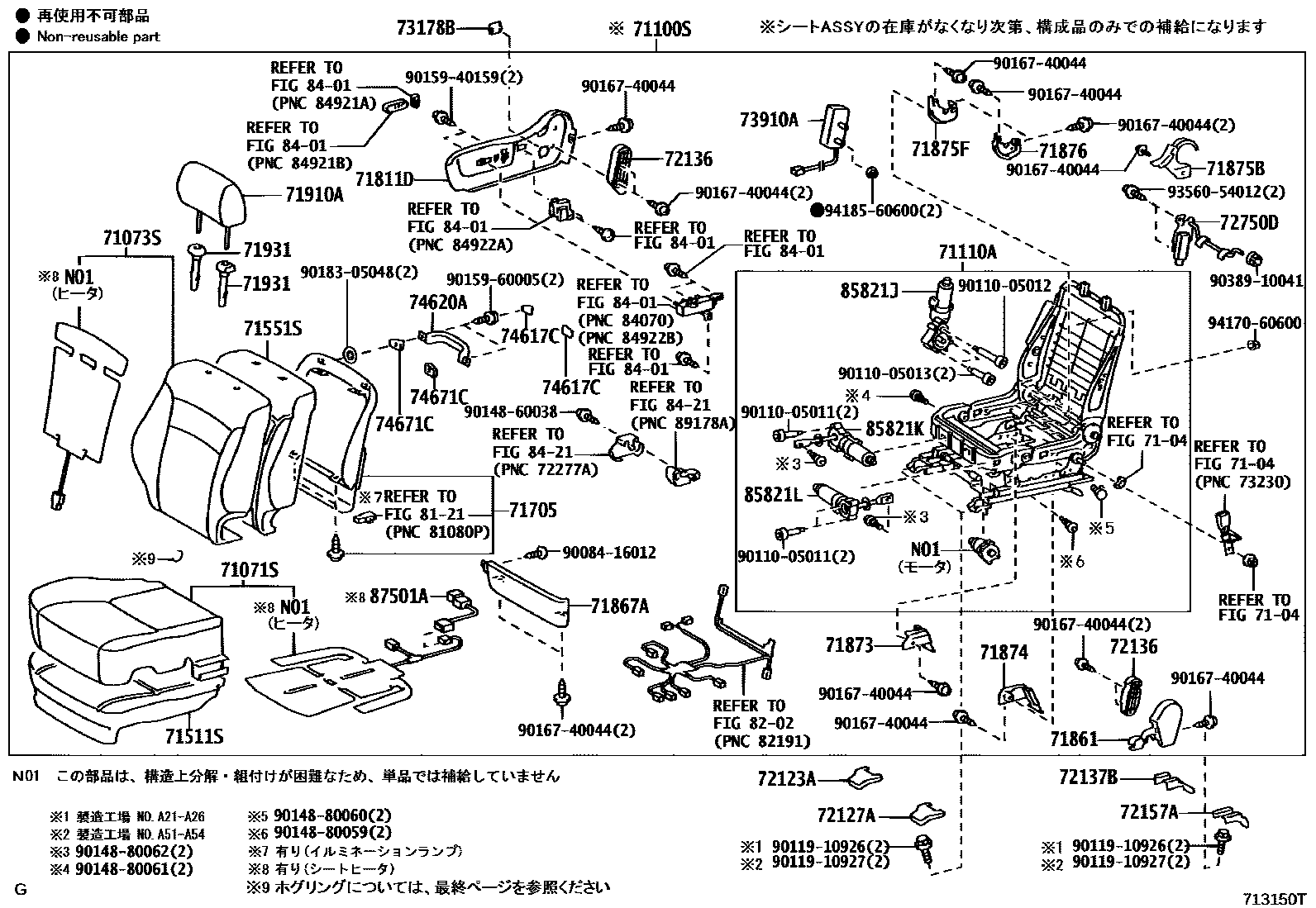

FRONT SEAT & SEAT TRACK

0001 1������-��(SRS����������� & ��0002 1������-��(���-�-�) 0003 1������-��(SRS�����������) 0004 1������ 0005 1�������-��(SRS�����������&���0006 1�������-��(���-�-�) 0007 1�������-��(SRS�����������) 0008 1������� 0009 1�������-��(����� & �������) 0010 1�������-��(�����) 0011 1�������-��(�����) 0012 1�������

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-30A00-A1iUZS18#200406-200606

IVORY,TRIM0#

sub71071-30A01

main71071-30A00-E2iUZS18#200406-200606

MAHOGANY BROWN,TRIM2#

sub71071-30A01

main71071-30A20-A4iGRS180..ROY200509-200802

sub71071-30A21

main71071-30A20-A4iGRS180..ROY200312-200802

IVORY,TRIM0#

sub71071-30A21

main71071-30A20-A4iGRS180,181..ROYEX200509-200802

sub71071-30A21

main71071-30A20-A4iGRS180,181..ROYEX200509-200802

sub71071-30A21

main71071-30A20-A4iGRS180,181..ROYEX200509-200802

sub71071-30A21

main71071-30A20-A4iGRS182,183..ROY,ROYG200312-200509

sub71071-30A21

main71071-30A20-A4iGRS182,183..ROY,ROYG200312-200509

sub71071-30A21

main71071-30A20-A4iGRS182,183..ROY,ROYG200312-200509

sub71071-30A21

main71071-30A20-A4iGRS180..ROY200312-200509

sub71071-30A21

main71071-30A20-B1iGRS180,181..ROYEX200312-200509

sub71071-30A21

main71071-30A20-B1iGRS182,183..ROY,ROYG200312-200509

GRAY,TRIM1#

sub71071-30A21

main71071-30A20-B1iGRS182,183..ROY,ROYG200312-200509

sub71071-30A21

main71071-30A20-B1iGRS182,183..ROY,ROYG200312-200509

sub71071-30A21

main71071-30A20-B1iGRS182,183..ROY,ROYG200312-200509

sub71071-30A21

main71071-30A20-B2iGRS180..ROY200509-200802

sub71071-30A21

main71071-30A20-B2iGRS180,181..ROYEX200509-200802

sub71071-30A21

main71071-30A20-B2iGRS180..ROY200509-200802

GRAY,TRIM1#

sub71071-30A21

main71071-30A20-B2iGRS180..ROY200509-200802

sub71071-30A21

main71071-30A20-B2iGRS180..ROY200509-200802

sub71071-30A21

main71071-30A30-B1iGRS180,181..ATH200312-200509

GRAY,TRIM1#

sub71071-30A31

main71071-30A30-B1iGRS182..ATH200312-200509

sub71071-30A31

main71071-30A30-C1iGRS180,181..ATH200312-200509

BLACK,TRIM2#

sub71071-30A31

main71071-30A30-C1iGRS180,181..ATH200312-200509

sub71071-30A31

main71071-30A50-A1iGRS183200312-200802

IVORY,TRIM0#

sub71071-30A20

main71071-30A50-A1iGRS180,181..ROYEX200509-200802

sub71071-30A20

main71071-30A50-A1iGRS180,181..ROYEX200312-200802

sub71071-30A20

main71071-30A50-A1iGRS183200312-200509

sub71071-30A20

main71071-30A50-B1iGRS183200312-200509

sub71071-30A20

main71071-30A50-B1iGRS183200312-200509

sub71071-30A20

main71071-30A50-B1iGRS183200312-200509

GRAY,TRIM1#

sub71071-30A20

main71071-30A50-B2iGRS180..ROY200509-200802

sub71071-30A20

main71071-30A50-B2iGRS180..ROY200509-200802

GRAY,TRIM1#

sub71071-30A20

main71071-30A50-B2iGRS183200509-200802

sub71071-30A20

main71071-30A60-B1iGRS180,181..ATH200312-200509

GRAY,TRIM1#

sub71071-30A30

main71071-30A60-C1iGRS180,181..ATH200312-200509

BLACK,TRIM2#

sub71071-30A30

main71071-30A70-A1iGRS180..ROYEX200312-200509

IVORY,TRIM01

sub71071-30A71

main71071-30A70-A1iGRS180..ROYEX200312-200509

sub71071-30A71

main71071-30A70-A1iGRS181..ROYEX200408-200802

IVORY,TRIM0#

sub71071-30A71

main71071-30A70-A1iGRS180,181..ROYEX200509-200802

sub71071-30A71

main71071-30A70-B1iGRS180..ROYEX200312-200509

GRAY,TRIM12

sub71071-30A71

main71071-30A70-B1iGRS180..ROYEX200312-200509

sub71071-30A71

main71071-30A70-B1iGRS181..ROYEX200408-200509

GRAY,TRIM1#

sub71071-30A71

main71071-30A70-B2iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

sub71071-30A71

main71071-30A70-B2iGRS180,181..ROYEX200509-200802

sub71071-30A71

main71071-30B50-B0iGRS184200509-200802

GRAY,TRIM1#

sub71071-30B51

main71071-30B50-B0iGRS184200509-200802

sub71071-30B51

main71071-30B50-C1iGRS184200509-200802

BLACK,TRIM2#

sub71071-30B51

main71071-30B50-C1iGRS184200509-200802

sub71071-30B51

main71071-30B60-B0iGRS180,181..ATH200509-200802

GRAY,TRIM1#

sub71071-30B50

main71071-30B60-C1iGRS180,181..ATH200509-200802

BLACK,TRIM2#

sub71071-30B50

main71071-30B70-A0iUZS18#200606

IVORY,TRIM0#

sub71071-30B71

main71071-30B70-E0iUZS18#200606

MAHOGANY BROWN,TRIM2#

sub71071-30B71

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-30A00-A1iUZS18#200406-200606

IVORY,TRIM0#

sub71073-30A01

main71073-30A00-E2iUZS18#200406-200606

MAHOGANY BROWN,TRIM2#

sub71073-30A01

main71073-30A20-A1iGRS183200312-200802

IVORY,TRIM0#

sub71073-30A21

main71073-30A20-A1iGRS180..ROY200312-200802

sub71073-30A21

main71073-30A20-A1iGRS180..ROY200312-200509

sub71073-30A21

main71073-30A20-A1iGRS180..ROY200509-200802

sub71073-30A21

main71073-30A20-B1iGRS180..ROY200312-200509

sub71073-30A21

main71073-30A20-B1iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub71073-30A21

main71073-30A20-B1iGRS180,181..ROYEX200312-200509

sub71073-30A21

main71073-30A20-B2iGRS180..ROY200509-200802

sub71073-30A21

main71073-30A20-B2iGRS180,181..ROYEX200509-200802

sub71073-30A21

main71073-30A20-B2iGRS183200509-200802

GRAY,TRIM1#

sub71073-30A21

main71073-30A30-A3iGRS182,183200509-200802

sub71073-30A31

main71073-30A30-A3iGRS182,183..ROY,ROYG200312-200802

IVORY,TRIM0#

sub71073-30A31

main71073-30A30-A3iGRS182,183..ROY,ROYG200312-200509

sub71073-30A31

main71073-30A30-A3iGRS182,183..ROY,ROYG200312-200509

sub71073-30A31

main71073-30A30-A3iGRS182,183..ROY,ROYG200312-200509

sub71073-30A31

main71073-30A30-A3iGRS182,183..ROY,ROYG200312-200509

sub71073-30A31

main71073-30A30-A3iGRS180..ROY200509-200802

sub71073-30A31

main71073-30A30-A3iGRS180..ROY200509-200802

sub71073-30A31

main71073-30A30-A3iGRS180..ROY200509-200802

sub71073-30A31

main71073-30A30-B1iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub71073-30A31

main71073-30A30-B1iGRS180,181..ROYEX200312-200509

sub71073-30A31

main71073-30A30-B1iGRS180,181..ROYEX200312-200509

sub71073-30A31

main71073-30A30-B1iGRS180,181..ROYEX200312-200509

sub71073-30A31

main71073-30A30-B1iGRS180,181..ROYEX200312-200509

sub71073-30A31

main71073-30A30-B2iGRS180..ROY200509-200802

sub71073-30A31

main71073-30A30-B2iGRS182,183200509-200802

GRAY,TRIM1#

sub71073-30A31

main71073-30A30-B2iGRS182,183200509-200802

sub71073-30A31

main71073-30A30-B2iGRS182,183200509-200802

sub71073-30A31

main71073-30A30-B2iGRS182,183200509-200802

sub71073-30A31

main71073-30A40-B1iGRS180,181..ATH200312-200509

GRAY,TRIM1#

sub71073-30A41

main71073-30A40-C1iGRS180,181..ATH200312-200509

BLACK,TRIM2#

sub71073-30A41

main71073-30A50-B1iGRS180,181..ATH200312-200509

main71073-30A50-B1iGRS180,181..ATH200312-200509

GRAY,TRIM1#

main71073-30A50-C1iGRS182..ATH200312-200509

main71073-30A50-C1iGRS180,181..ATH200312-200509

BLACK,TRIM2#

main71073-30A60-A1iGRS180..ROYEX200312-200509

IVORY,TRIM01

sub71073-30A61

main71073-30A60-A1iGRS180..ROYEX200312-200509

sub71073-30A61

main71073-30A60-A1iGRS180,181..ROYEX200509-200802

sub71073-30A61

main71073-30A60-A1iGRS180,181..ROYEX200408-200802

IVORY,TRIM0#

sub71073-30A61

main71073-30A60-B1iGRS180..ROYEX200312-200509

GRAY,TRIM12

sub71073-30A61

main71073-30A60-B1iGRS181..ROYEX200408-200509

GRAY,TRIM1#

sub71073-30A61

main71073-30A60-B1iGRS180..ROYEX200312-200509

sub71073-30A61

main71073-30A60-B2iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

sub71073-30A61

main71073-30A60-B2iGRS180,181..ROYEX200509-200802

sub71073-30A61

main71073-30B50-B0iGRS180,181..ATH200509-200802

GRAY,TRIM1#

sub71073-30B51

main71073-30B50-C1iGRS180,181..ATH200509-200802

BLACK,TRIM2#

sub71073-30B51

main71073-30B60-B0iGRS184200509-200802

GRAY,TRIM1#

sub71073-30B61

main71073-30B60-B0iGRS184200509-200802

sub71073-30B61

main71073-30B60-C1iGRS180,181..ATH200509-200802

sub71073-30B61

main71073-30B60-C1iGRS184200509-200802

BLACK,TRIM2#

sub71073-30B61

main71073-30B70-A0iUZS18#200606

IVORY,TRIM0#

sub71073-30B71

main71073-30B70-E0iUZS18#200606

MAHOGANY BROWN,TRIM2#

sub71073-30B71

71100SSEAT ASSY, FRONT RH

main71010-3F880-A5iGRS180..ROY200312-200509

sub71010-3F881

sub71010-3F882

main71010-3F880-A5iGRS182..ROY200312-200703

IVORY,TRIM0#

sub71010-3F881

sub71010-3F882

main71010-3F880-A5iGRS182..ROY200312-200509

sub71010-3F881

sub71010-3F882

main71010-3F880-A5iGRS182..ROY200312-200509

sub71010-3F881

sub71010-3F882

main71010-3F880-A5iGRS182..ROY200509-200703

sub71010-3F881

sub71010-3F882

main71010-3F880-A5iGRS182..ROY200509-200703

sub71010-3F881

sub71010-3F882

main71010-3F880-A5iGRS182..ROY200509-200703

sub71010-3F881

sub71010-3F882

main71010-3F880-B2iGRS182..ROY200312-200509

GRAY,TRIM1#

sub71010-3F881

sub71010-3F882

main71010-3F880-B2iGRS180..ROYEX200312-200509

sub71010-3F881

sub71010-3F882

main71010-3F880-B2iGRS180..ROYEX200312-200509

sub71010-3F881

sub71010-3F882

main71010-3F880-B4iGRS182..ROY200509-200703

sub71010-3F881

sub71010-3F882

main71010-3F880-B4iGRS180..ROY200509-200703

sub71010-3F881

sub71010-3F882

main71010-3F880-B4iGRS180..ROY200509-200703

GRAY,TRIM1#

sub71010-3F881

sub71010-3F882

main71010-3F881-A0iGRS180..ROY200704-200802

sub71100-3FU40

main71010-3F881-A0iGRS180..ROY200704-200802

sub71100-3FU40

main71010-3F881-A0iGRS180..ROY200704-200802

IVORY,TRIM0#

sub71100-3FU40

main71010-3F881-A0iGRS180..ROYEX200704-200802

sub71100-3FU40

main71010-3F881-A0iGRS180..ROYEX200704-200802

sub71100-3FU40

main71010-3F881-B0iGRS180..ROYEX200704-200802

sub71100-3FU40

main71010-3F881-B0iGRS180..ROY200704-200802

sub71100-3FU40

main71010-3F881-B0iGRS182..ROY200704-200802

GRAY,TRIM1#

sub71100-3FU40

main71100-30A50-B3iGRS182..ATH200312-200509

GRAY,TRIM1#

sub71100-30A51

main71100-30A50-B3iGRS180..ATH200312-200509

sub71100-30A51

main71100-30A50-C3iGRS180..ATH200312-200509

sub71100-30A51

main71100-30A50-C3iGRS182..ATH200312-200509

BLACK,TRIM2#

sub71100-30A51

main71100-30A70-A2iGRS180..ROY200312-200509

IVORY,TRIM0#

sub71100-30A71

main71100-30A70-A2iGRS180..ROY200312-200509

sub71100-30A71

main71100-30A70-A2iGRS180..ROY200312-200509

sub71100-30A71

main71100-30A70-B2iGRS180..ROY200312-200509

GRAY,TRIM1#

sub71100-30A71

main71100-30A70-B2iGRS182..ROY200312-200509

sub71100-30A71

main71100-30A70-B2iGRS182..ROYG200312-200509

sub71100-30A71

main71100-30A80-A2iGRS181..ROYEX200312-200703

IVORY,TRIM0#

sub71100-30A81

sub71100-30A82

main71100-30A80-A2iGRS181..ROYEX200509-200703

sub71100-30A81

sub71100-30A82

main71100-30A80-B2iGRS183200312-200509

GRAY,TRIM1#

sub71100-30A81

sub71100-30A82

main71100-30A80-B4iGRS183200509-200703

GRAY,TRIM1#

sub71100-30A81

sub71100-30A82

main71100-30A80-B4iGRS181..ROYEX200509-200703

sub71100-30A81

sub71100-30A82

main71100-30A81-A0iGRS183200704-200802

sub71100-3FU50

main71100-30A81-A0iGRS183200704-200802

IVORY,TRIM0#

sub71100-3FU50

main71100-30A81-A0iGRS183200704-200802

sub71100-3FU50

main71100-30A81-B0iGRS181..ROYEX200704-200802

sub71100-3FU50

main71100-30A81-B0iGRS183200704-200802

GRAY,TRIM1#

sub71100-3FU50

main71100-30B10-A2iUZS18#200406-200606

IVORY,TRIM0#

sub71100-30B11

main71100-30B10-C3iUZS18#200406-200606

BLACK,TRIM2#

sub71100-30B11

main71100-30D20-A1iGRS182..ROYG200509-200703

sub71100-30D21

main71100-30D20-A1iGRS182..ROYG200509-200703

IVORY,TRIM0#

sub71100-30D21

main71100-30D20-A1iGRS182..ROY200509-200703

sub71100-30D21

main71100-30D20-B1iGRS182..ROY200509-200703

GRAY,TRIM1#

sub71100-30D21

main71100-30D20-B1iGRS182..ROY200509-200703

sub71100-30D21

main71100-30D20-B1iGRS182..ROYG200509-200703

sub71100-30D21

main71100-30D21-A0iGRS182..ROY200704-200802

sub71100-30D22

main71100-30D21-A0iGRS182..ROYG200704-200802

IVORY,TRIM0#

sub71100-30D22

main71100-30D21-A0iGRS182..ROYG200704-200802

sub71100-30D22

main71100-30D21-A0iGRS182..ROYG200704-200802

sub71100-30D22

main71100-30D21-B0iGRS180..ROY200704-200802

sub71100-30D22

main71100-30D21-B0iGRS182..ROY200704-200802

GRAY,TRIM1#

sub71100-30D22

main71100-30D21-B0iGRS182..ROYG200704-200802

sub71100-30D22

main71100-30F10-B1iGRS180..ATH200509-200703

sub71100-30F11

main71100-30F10-B1iGRS184200509-200703

GRAY,TRIM1#

sub71100-30F11

main71100-30F10-C2iGRS180..ATH200509-200703

sub71100-30F11

main71100-30F10-C2iGRS184200509-200703

BLACK,TRIM2#

sub71100-30F11

main71100-30F11-B0iGRS184200704-200802

GRAY,TRIM1#

sub71100-30F12

main71100-30F11-B0iGRS184200704-200802

sub71100-30F12

main71100-30F11-C0iGRS180..ATH200704-200802

sub71100-30F12

main71100-30F11-C0iGRS180..ATH200704-200802

sub71100-30F12

main71100-30F11-C0iGRS180..ATH200704-200802

BLACK,TRIM2#

sub71100-30F12

main71100-30F70-A1iUZS18#200606-200703

IVORY,TRIM0#

sub71100-30F71

main71100-30F70-C1iUZS18#200606-200703

BLACK,TRIM2#

sub71100-30F71

main71100-30F71-A0iUZS18#200704-200812

IVORY,TRIM0#

sub71100-30F72

main71100-30F71-C0iUZS18#200704-200812

BLACK,TRIM2#

sub71100-30F72

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-30080iGRS183200509-200802

main71110-30080iGRS180,181..ROYEX200312-200509

main71110-30080iGRS180,181..ROYEX200312-200509

main71110-30080iGRS180,181..ROYEX200509-200802

main71110-30090iGRS181,183..ATH,ROY200312-200509

main71110-30090iGRS181,183..ATH,ROY200509-200802

main71110-30090iGRS181..ROYEX200509-200802

main71110-30100iGRS180..ROYEX200509-200802

main71110-30100iGRS180..ROYEX200509-200802

main71110-30100iUZS18#200312-200812

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-30A00iUZS18#200312-200802

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-30A00iGRS183200312-200509

main71551-30A00iGRS180,181..ROY,ROYEX200312-200509

main71551-30A00iGRS180,181..ROY,ROYEX200509-200802

main71551-30A00iGRS180,181..ROY,ROYEX200509-200802

main71551-30A10iGRS180,181..ROY,ROYEX200509-200802

main71551-30A10iGRS182,183,UZS18#..A,C,ROY,ROYG200312-200812

main71551-30A10iGRS180,181..ROY,ROYEX200509-200802

main71551-30A10iGRS180,181..ROY,ROYEX200509-200802

main71551-30A10iGRS182,183200509-200802

main71551-30A20iGRS180,181..ATH200312-200802

main71551-30A30iGRS181..ATH200509-200802

main71551-30A30iGRS184200509-200802

main71551-30A30iGRS184200509-200802

main71551-30A30iGRS182..ATH200312-200509

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-30740-A1iGRS180,182,183..ROY200312-200703

IVORY,TRIM0#

sub71705-30741

main71705-30740-A1iGRS180,181..ROYEX200509-200703

sub71705-30741

main71705-30740-A1iGRS180,181..ROYEX200509-200703

sub71705-30741

main71705-30740-B1iGRS18#..ATH,ROY,ROYG200312-200509

sub71705-30741

main71705-30740-B1iGRS18#..ATH,ROY,ROYG200312-200509

sub71705-30741

main71705-30740-B1iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub71705-30741

main71705-30740-B2iGRS180,181..ROYEX200509-200703

GRAY,TRIM1#

sub71705-30741

main71705-30740-B2iGRS18#..ATH,ROY200509-200703

sub71705-30741

main71705-30740-B2iGRS18#..ATH,ROY200509-200703

sub71705-30741

main71705-30740-C1iGRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C200312-200703

BLACK,TRIM2#

sub71705-30741

main71705-30741-A1iGRS181..ROYEX200704-200802

main71705-30741-A1iGRS180,181..ROYEX200704-200802

main71705-30741-A1iGRS180,181..ROYEX200704-200802

IVORY,TRIM0#

main71705-30741-A1iGRS180,181..ROYEX200704-200802

main71705-30741-B2iGRS18#..ATH,ROY200704-200802

main71705-30741-B2iGRS18#..ATH,ROY200704-200802

main71705-30741-B2iGRS18#..ATH,ROY200704-200802

main71705-30741-B2iGRS18#..ATH,ROY200704-200802

GRAY,TRIM1#

main71705-30741-C1iGRS180,181,184..ATH200704-200802

BLACK,TRIM2#

main71705-30741-C1iGRS181..ATH200704-200802

main71705-30750-A1iGRS181..ROYEX200408-200703

NEW IVORY,TRIM0#

sub71705-30751

main71705-30750-A1iGRS183200312-200509

sub71705-30751

main71705-30750-A1iGRS183200312-200509

NEW IVORY,TRIM01

sub71705-30751

main71705-30750-A1iGRS180,181..ROYEX200509-200703

sub71705-30751

main71705-30750-A1iGRS180,181..ROYEX200509-200703

sub71705-30751

main71705-30750-A1iGRS183200408-200509

sub71705-30751

main71705-30750-B1iGRS183200408-200509

GRAY,TRIM1#

sub71705-30751

main71705-30750-B1iGRS183200408-200509

sub71705-30751

main71705-30750-B1iGRS183200312-200509

GRAY,TRIM12

sub71705-30751

main71705-30750-B1iGRS180..ROYEX200312-200509

sub71705-30751

main71705-30750-B2iGRS183200509-200703

sub71705-30751

main71705-30750-B2iGRS183200509-200703

sub71705-30751

main71705-30750-B2iGRS183200509-200703

GRAY,TRIM1#

sub71705-30751

main71705-30751-A1iGRS183200704-200802

IVORY,TRIM0#

main71705-30751-A1iGRS180,181..ROYEX200704-200802

main71705-30751-A1iGRS183200704-200802

main71705-30751-B2iGRS180,181..ROYEX200704-200802

main71705-30751-B2iGRS180,181..ROYEX200704-200802

main71705-30751-B2iGRS180,181..ROYEX200704-200802

GRAY,TRIM1#

main71705-30780-A0iGRS180..ROY200509-200703

IVORY,TRIM0#

sub71705-30781

main71705-30780-A0iGRS180..ROY200509-200703

sub71705-30781

main71705-30780-A0iGRS180..ROY200509-200703

sub71705-30781

main71705-30780-A0iGRS180..ROY200509-200703

sub71705-30781

main71705-30780-A0iGRS180..ROY200509-200703

sub71705-30781

main71705-30780-A0iGRS180..ROY200509-200703

sub71705-30781

main71705-30780-B0iGRS183200509-200703

sub71705-30781

main71705-30780-B0iGRS183200509-200703

sub71705-30781

main71705-30780-B0iGRS183200509-200703

sub71705-30781

main71705-30780-B0iGRS183200509-200703

GRAY,TRIM1#

sub71705-30781

main71705-30780-B0iGRS182..ROYG200509-200703

sub71705-30781

main71705-30780-B0iGRS182..ROYG200509-200703

sub71705-30781

main71705-30780-C0iUZS18#200606-200703

BLACK,TRIM2#

sub71705-30781

main71705-30781-A0iGRS183200704-200802

main71705-30781-A0iGRS182..ROYG200704-200812

IVORY,TRIM0#

main71705-30781-A0iGRS182..ROYG200704-200802

main71705-30781-A0iGRS182..ROYG200704-200802

main71705-30781-A0iGRS182..ROYG200704-200802

main71705-30781-A0iGRS182..ROYG200704-200802

main71705-30781-A0iGRS182..ROYG200704-200802

main71705-30781-B0iGRS180..ROY200704-200802

main71705-30781-B0iGRS182..ROYG200704-200802

main71705-30781-B0iGRS182..ROYG200704-200802

main71705-30781-B0iGRS182..ROYG200704-200802

main71705-30781-B0iGRS183200704-200802

GRAY,TRIM1#

main71705-30781-B0iGRS183200704-200802

main71705-30781-B0iGRS183200704-200802

main71705-30781-C0iUZS18#200704-200812

BLACK,TRIM2#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-30450-A0iGRS180,182,183..ROY,ROYG200312-200802

IVORY,TRIM0#

sub71811-30450

main71811-30450-A0iGRS180,181..ROYEX200509-200802

sub71811-30450

main71811-30450-A0iGRS180,181..ROYEX200509-200802

sub71811-30450

main71811-30450-B0iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub71811-30450

main71811-30450-B0iGRS180,181..ROYEX200312-200509

sub71811-30450

main71811-30450-B0iGRS180,181..ROYEX200312-200509

sub71811-30450

main71811-30450-B1iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

sub71811-30450

main71811-30450-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub71811-30450

main71811-30450-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub71811-30450

main71811-30450-C0iGRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C200312-200802

BLACK,TRIM2#

sub71811-30450

main71811-30460-A0iGRS183200312-200802

IVORY,TRIM0#

sub71811-30460

main71811-30460-A0iGRS183200312-200509

sub71811-30460

main71811-30460-A0iGRS183200312-200509

sub71811-30460

main71811-30460-A0iGRS180,181..ROYEX200509-200802

sub71811-30460

main71811-30460-A0iGRS180,181..ROYEX200509-200802

sub71811-30460

main71811-30460-B0iGRS183200312-200509

sub71811-30460

main71811-30460-B0iGRS183200312-200509

sub71811-30460

main71811-30460-B0iGRS183200312-200509

GRAY,TRIM1#

sub71811-30460

main71811-30460-B1iGRS180,181..ROYEX200509-200802

sub71811-30460

main71811-30460-B1iGRS183200509-200802

GRAY,TRIM1#

sub71811-30460

main71811-30460-B1iGRS183200509-200802

sub71811-30460

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-30100-A0iGRS180,181..ROYEX200312-200802

IVORY,TRIM0#

sub71861-30100

main71861-30100-A0iGRS183200509-200802

sub71861-30100

main71861-30100-A0iGRS183200509-200802

sub71861-30100

main71861-30100-A0iGRS183200312-200509

sub71861-30100

main71861-30100-A0iGRS183200312-200509

sub71861-30100

main71861-30100-B0iGRS180,181..ROYEX200312-200509

sub71861-30100

main71861-30100-B0iGRS180,181..ROYEX200312-200509

sub71861-30100

main71861-30100-B0iGRS183200312-200509

GRAY,TRIM1#

sub71861-30100

main71861-30100-B1iGRS183200509-200802

sub71861-30100

main71861-30100-B1iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

sub71861-30100

main71861-30100-B1iGRS180,181..ROYEX200509-200802

sub71861-30100

main71861-60110-A1iGRS180,182,183..ROY,ROYG200509-200802

sub71861-60110

main71861-60110-A1iGRS180,182,183..ROY,ROYG200509-200802

sub71861-60110

main71861-60110-A1iGRS180,182,183..ROY,ROYG200312-200802

IVORY,TRIM0#

sub71861-60110

main71861-60110-B4iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub71861-60110

main71861-60110-B4iGRS18#..ATH,ROY,ROYG200312-200509

sub71861-60110

main71861-60110-B4iGRS18#..ATH,ROY,ROYG200312-200509

sub71861-60110

main71861-60110-B5iGRS18#..ATH,ROY,ROYG200509-200802

sub71861-60110

main71861-60110-B5iGRS18#..ATH,ROY,ROYG200509-200802

sub71861-60110

main71861-60110-B5iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

sub71861-60110

main71861-60110-C0iGRS180,181,184..ATH200312-200802

BLACK,TRIM2#

sub71861-60110

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-30120-A0iUZS18#200312-200802

IVORY,TRIM0#

main71867-30120-A0iGRS180,182,183..ROY,ROYG200509-200802

main71867-30120-A0iGRS180,182,183..ROY,ROYG200509-200802

main71867-30120-B0iGRS18#..ATH,ROY,ROYG200312-200509

main71867-30120-B0iGRS18#..ATH,ROY,ROYG200312-200509

GRAY,TRIM1#

main71867-30120-B0iGRS18#..ATH,ROY,ROYG200312-200509

main71867-30120-B1iGRS18#..ATH,ROY,ROYG200509-200802

main71867-30120-B1iGRS18#..ATH,ROY,ROYG200509-200802

main71867-30120-B1iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

main71867-30120-C0iGRS180,181,184..ATH200312-200802

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-48010iGRS183200509-200802

main71873-48010iGRS180,181..ROYEX200312-200509

main71873-48010iGRS180,181..ROYEX200312-200509

main71873-48010iGRS180,181..ROYEX200509-200802

main71873-48020iUZS18#200312-200606

main71873-48020iGRS180,181..ROYEX200509-200802

main71873-48020iGRS180,181..ROYEX200509-200802

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-48010iGRS183200312-200509

main71874-48010iGRS180,181..ROYEX200312-200509

main71874-48010iGRS180,181..ROYEX200509-200802

main71874-48010iGRS180,181..ROYEX200509-200802

main71874-48020iUZS18#200312-200606

main71874-48020iGRS18#..ATH,ROY,ROYG200509-200802

main71874-48020iGRS18#..ATH,ROY,ROYG200509-200802

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-30160-A0iGRS180,181..ROYEX200312-200802

IVORY,TRIM0#

sub71875-30160

main71875-30160-A0iGRS183200509-200802

sub71875-30160

main71875-30160-A0iGRS183200509-200802

sub71875-30160

main71875-30160-A0iGRS180,181..ROYEX200312-200509

sub71875-30160

main71875-30160-A0iGRS183200312-200509

sub71875-30160

main71875-30160-B0iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub71875-30160

main71875-30160-B0iGRS180,181..ROYEX200312-200509

sub71875-30160

main71875-30160-B0iGRS180,181..ROYEX200312-200509

sub71875-30160

main71875-30160-B1iGRS183200509-200802

sub71875-30160

main71875-30160-B1iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

sub71875-30160

main71875-30160-B1iGRS180,181..ROYEX200509-200802

sub71875-30160

main71875-60150-A1iGRS180,182,183..ROY,ROYG200509-200802

sub71875-60150

main71875-60150-A1iGRS180,182,183..ROY,ROYG200509-200802

sub71875-60150

main71875-60150-A1iGRS180,182,183..ROY,ROYG200312-200802

IVORY,TRIM0#

sub71875-60150

main71875-60150-B4iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub71875-60150

main71875-60150-B4iGRS18#..ATH,ROY,ROYG200312-200509

sub71875-60150

main71875-60150-B4iGRS18#..ATH,ROY,ROYG200312-200509

sub71875-60150

main71875-60150-B5iGRS18#..ATH,ROY,ROYG200509-200802

GRAY,TRIM1#

sub71875-60150

main71875-60150-B5iGRS18#..ATH,ROY,ROYG200509-200802

sub71875-60150

main71875-60150-B5iGRS18#..ATH,ROY,ROYG200509-200802

sub71875-60150

main71875-60150-C0iGRS180,181,184..ATH200312-200802

BLACK,TRIM2#

sub71875-60150

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-58050iGRS180,181..ROYEX200509-200802

main71875-58050iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200606

main71875-58050iGRS18#..ATH,ROY,ROYG200509-200802

main71875-58060iGRS180,181..ROYEX200509-200802

main71875-58060iGRS183200509-200802

main71875-58060iGRS183200312-200509

main71875-58060iGRS181..ROYEX200408-200509

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-58050iUZS18#200312-200606

main71876-58050iGRS18#..ATH,ROY,ROYG200509-200802

main71876-58050iGRS18#..ATH,ROY,ROYG200509-200802

main71876-58060iGRS183200509-200802

main71876-58060iGRS183200509-200802

main71876-58060iGRS180..ROYEX200312-200509

main71876-58060iGRS181..ROYEX200408-200509

71910AHEADREST ASSY, FRONT SEAT

main71910-30A10-A0iUZS18#200406-200606

sub71910-30A11

main71910-30A10-A0iUZS18#200406-200606

IVORY,TRIM0#

sub71910-30A11

main71910-30A10-E1iUZS18#..C200406-200606

MAHOGANY BROWN/BLACK,TRIM2#

sub71910-30A11

main71910-30A10-E1iUZS18#..C200406-200606

sub71910-30A11

main71910-30A30-A1iGRS180,182,183..ROY,ROYG200312-200703

IVORY,TRIM0#

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS180,182,183..ROY,ROYG200312-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS180,182,183..ROY,ROYG200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS180,182,183..ROY,ROYG200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS182,183..ROY200312-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS182,183..ROY200312-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS182,183..ROY200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS182,183..ROY200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS182,183..ROY200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-A1iGRS182,183..ROY200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-B0iGRS180,182,183..ROY,ROYG200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-B0iGRS182,183..ROY200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-B0iGRS182,183..ROY200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-B0iGRS182,183..ROY200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-B0iGRS182,183..ROY200312-200509

GRAY,TRIM1#

sub71910-30A32

sub71910-30A31

main71910-30A30-B0iGRS182,183..ROY200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-B0iGRS182,183..ROY200312-200509

sub71910-30A32

sub71910-30A31

main71910-30A30-B1iGRS180,182,183..ROY,ROYG200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-B1iGRS180,182,183..ROY,ROYG200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-B1iGRS180,182,183..ROY,ROYG200509-200703

GRAY,TRIM1#

sub71910-30A32

sub71910-30A31

main71910-30A30-B1iGRS180,182,183..ROY,ROYG200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-B1iGRS180,182,183..ROY,ROYG200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-B1iGRS180,181..ROYEX200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A30-B1iGRS180,181..ROYEX200509-200703

sub71910-30A32

sub71910-30A31

main71910-30A31-A1iGRS180..ROY200704-200802

sub71910-30K50

main71910-30A31-A1iGRS182,183..ROY200704-200802

sub71910-30K50

main71910-30A31-A1iGRS182,183..ROY200704-200802

sub71910-30K50

main71910-30A31-A1iGRS182,183..ROY200704-200802

sub71910-30K50

main71910-30A31-A1iGRS182,183..ROY200704-200802

IVORY,TRIM0#

sub71910-30K50

main71910-30A31-A1iGRS182,183..ROY200704-200802

sub71910-30K50

main71910-30A31-A1iGRS182,183..ROY200704-200802

sub71910-30K50

main71910-30A31-A1iGRS182,183..ROY200704-200802

sub71910-30K50

main71910-30A31-B1iGRS181..ROYEX200704-200802

sub71910-30K50

main71910-30A31-B1iGRS182..ROYG200704-200802

sub71910-30K50

main71910-30A31-B1iGRS182..ROYG200704-200802

sub71910-30K50

main71910-30A31-B1iGRS182..ROYG200704-200802

sub71910-30K50

main71910-30A31-B1iGRS182..ROYG200704-200802

sub71910-30K50

main71910-30A31-B1iGRS182..ROYG200704-200802

GRAY,TRIM1#

sub71910-30K50

main71910-30A31-B1iGRS182..ROYG200704-200802

sub71910-30K50

main71910-30A31-B1iGRS182..ROYG200704-200802

sub71910-30K50

main71910-30A40-B0iGRS180,181,182..ATH200312-200509

GRAY,TRIM1#

sub71910-30A41

main71910-30A40-C0iGRS180,181,182..ATH200312-200509

BLACK,TRIM2#

sub71910-30A41

main71910-30A50-A0iGRS183200312-200509

sub71910-30A51

main71910-30A50-A0iGRS183200312-200703

IVORY,TRIM0#

sub71910-30A51

main71910-30A50-A0iGRS183200312-200509

sub71910-30A51

main71910-30A50-A0iGRS183200509-200703

sub71910-30A51

main71910-30A50-A0iGRS183200509-200703

sub71910-30A51

main71910-30A50-B0iGRS183200312-200509

GRAY,TRIM1#

sub71910-30A51

main71910-30A50-B0iGRS183200312-200509

sub71910-30A51

main71910-30A50-B0iGRS180,181..ROYEX200312-200509

sub71910-30A51

main71910-30A50-B1iGRS183200509-200703

sub71910-30A51

main71910-30A50-B1iGRS183200509-200703

sub71910-30A51

main71910-30A50-B1iGRS180,181..ROYEX200509-200703

GRAY,TRIM1#

sub71910-30A51

main71910-30A51-A0iGRS183200704-200802

IVORY,TRIM0#

sub71910-30A52

main71910-30A51-A0iGRS180,181..ROYEX200704-200802

sub71910-30A52

main71910-30A51-A0iGRS180,181..ROYEX200704-200802

sub71910-30A52

main71910-30A51-B1iGRS183200704-200802

sub71910-30A52

main71910-30A51-B1iGRS183200704-200802

sub71910-30A52

main71910-30A51-B1iGRS180,181..ROYEX200704-200802

GRAY,TRIM1#

sub71910-30A52

main71910-30B00-B0iGRS180,181,184..ATH200509-200703

GRAY,TRIM1#

sub71910-30B01

main71910-30B00-C1iGRS180,181,184..ATH200509-200703

BLACK,TRIM2#

sub71910-30B01

main71910-30B01-B0iGRS180,181,184..ATH200704-200802

GRAY,TRIM1#

sub71910-30B02

main71910-30B01-C1iGRS180,181,184..ATH200704-200802

BLACK,TRIM2#

sub71910-30B02

main71910-30B10-A0iUZS18#..C200606-200703

sub71910-30B11

main71910-30B10-A0iUZS18#..C200606-200703

IVORY,TRIM0#

sub71910-30B11

main71910-30B10-E0iUZS18#..C200606-200703

sub71910-30B11

main71910-30B10-E0iUZS18#..C200606-200703

MAHOGANY BROWN,TRIM2#

sub71910-30B11

main71910-30B11-A0iUZS18#..C200704

sub71910-30B12

main71910-30B11-A0iUZS18#..C200704

IVORY,TRIM0#

sub71910-30B12

main71910-30B11-E0iUZS18#..C200704

MAHOGANY BROWN,TRIM2#

sub71910-30B12

main71910-30B11-E0iUZS18#..C200704

sub71910-30B12

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-A1iGRS180..ROY200705-200802

sub71930-44020

main71930-44020-A1iUZS18#200705-200802

sub71930-44020

main71930-44020-A1iUZS18#200705

sub71930-44020

main71930-44020-A1iGRS180,181,182,183..ROY,ROYEX,ROYG200705-200802

sub71930-44020

main71930-44020-A1iGRS180,181,182,183..ROY,ROYEX,ROYG200705-200802

sub71930-44020

main71930-44020-A1iGRS180,181,182,183..ROY,ROYEX,ROYG200705-200802

sub71930-44020

main71930-44020-B2iGRS180..ROY200705-200802

sub71930-44020

main71930-44020-B2iGRS182,183..ROY200705-200802

sub71930-44020

main71930-44020-B2iGRS180..ROY200705-200802

sub71930-44020

main71930-44020-B2iGRS180..ROY200705-200802

sub71930-44020

main71930-44020-B2iGRS180..ROY200705-200802

sub71930-44020

main71930-44020-C0iUZS18#200705

sub71930-44020

main71930-44020-C0iUZS18#..C200705-200802

sub71930-44020

main71930-47010-A2iGRS180..ROY200509-200705

sub71930-47010

sub71930-44020

main71930-47010-A2iGRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG200312-200705

sub71930-47010

sub71930-44020

main71930-47010-A2iGRS182,183..ROY200509-200705

sub71930-47010

sub71930-44020

main71930-47010-A2iGRS182,183..ROY200509-200705

sub71930-47010

sub71930-44020

main71930-47010-A2iGRS182,183..ROY200509-200705

sub71930-47010

sub71930-44020

main71930-47010-A2iUZS18#..C200606-200705

sub71930-47010

sub71930-44020

main71930-47010-B9iGRS182,183..ROY200312-200509

sub71930-47010

sub71930-44020

main71930-47010-B9iGRS182,183..ROY200312-200509

sub71930-47010

sub71930-44020

main71930-47010-B9iGRS180..ROY200312-200509

sub71930-47010

sub71930-44020

main71930-47010-C0iGRS180,181,184..ATH200312-200705

sub71930-47010

sub71930-44020

main71930-47010-C0iUZS18#200606-200705

sub71930-47010

sub71930-44020

main71930-47010-P1iGRS182,183..ROY200509-200705

sub71930-47010

sub71930-44020

main71930-47010-P1iGRS182,183..ROY200509-200705

sub71930-47010

sub71930-44020

main71930-47010-P1iGRS182,183..ROY200509-200705

sub71930-47010

sub71930-44020

main71930-47010-P1iGRS182,183..ROY200509-200705

sub71930-47010

sub71930-44020

main71930-47010-P1iGRS182..ROYG200509-200705

sub71930-47010

sub71930-44020

main71931-47010-A6iGRS182..ROYG200509-200802

sub71931-47010

sub71931-42020

main71931-47010-A6iUZS18#..C200606

sub71931-47010

sub71931-42020

main71931-47010-A6iUZS18#..C200312-200802

sub71931-47010

sub71931-42020

main71931-47010-A6iGRS182..ROYG200509-200802

sub71931-47010

sub71931-42020

main71931-47010-A6iGRS182..ROYG200509-200802

sub71931-47010

sub71931-42020

main71931-47010-A6iGRS182..ROYG200509-200802

sub71931-47010

sub71931-42020

main71931-47010-A6iGRS180,183..ROY,ROYEX200312-200509

sub71931-47010

sub71931-42020

main71931-47010-A6iGRS180,183..ROY,ROYEX200312-200509

sub71931-47010

sub71931-42020

main71931-47010-A6iGRS180,183..ROY,ROYEX200312-200509

sub71931-47010

sub71931-42020

main71931-47010-C0iGRS180,181,184..ATH200406-200802

sub71931-47010

sub71931-42020

main71931-47010-C0iGRS181,UZS18#..A,ATH,C200406-200606

sub71931-47010

sub71931-42020

main71931-47010-C0iUZS18#200606

sub71931-47010

sub71931-42020

main71931-47010-C0iGRS180,182..ATH200312-200509

sub71931-47010

sub71931-42020

main71931-47010-P2iGRS180..ROY200312-200509

sub71931-47010

sub71931-42020

main71931-47010-P2iGRS180..ROY200312-200509

sub71931-47010

sub71931-42020

main71931-47010-P2iGRS180..ROY200312-200509

sub71931-47010

sub71931-42020

main71931-47010-P2iGRS180..ROY200312-200509

sub71931-47010

sub71931-42020

main71931-47010-P2iGRS180..ROY200312-200509

sub71931-47010

sub71931-42020

main71931-47010-P4iGRS182..ROYG200509-200802

sub71931-47010

sub71931-42020

main71931-47010-P4iGRS182,183..ROY200509-200802

sub71931-47010

sub71931-42020

main71931-47010-P4iGRS182,183..ROY200509-200802

sub71931-47010

sub71931-42020

main71931-47010-P4iGRS182,183..ROY200509-200802

sub71931-47010

sub71931-42020

main71931-47010-P4iGRS182,183..ROY200509-200802

sub71931-47010

sub71931-42020

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-30090-A0iGRS180,182,183..ROY,ROYG200509-200802

sub72123-30090

main72123-30090-A0iGRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG200312-200802

IVORY,TRIM0#

sub72123-30090

main72123-30090-A0iGRS180,182,183..ROY,ROYG200509-200802

sub72123-30090

main72123-30090-B0iGRS18#..ATH,ROY,ROYG200312-200509

GRAY,TRIM1#

sub72123-30090

main72123-30090-B0iGRS18#..ATH,ROY,ROYG200312-200509

sub72123-30090

main72123-30090-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub72123-30090

main72123-30090-B1iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

sub72123-30090

main72123-30090-B1iGRS180,181..ROYEX200509-200802

sub72123-30090

main72123-30090-C0iGRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C200312-200802

BLACK,TRIM2#

sub72123-30090

main72123-30100-A0iGRS180,181..ROYEX200312-200802

IVORY,TRIM0#

main72123-30100-A0iGRS183200312-200802

main72123-30100-B0iGRS183200312-200509

GRAY,TRIM1#

main72123-30100-B0iGRS183200312-200509

main72123-30100-B1iGRS183200509-200802

GRAY,TRIM1#

main72123-30100-B1iGRS180,181..ROYEX200509-200802

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-30090-A0iGRS180,182,183..ROY,ROYG200509-200802

sub72123-30090

main72123-30090-A0iGRS180,182,183..ROY,ROYG200509-200802

sub72123-30090

main72123-30090-A0iGRS180,181..ROYEX200312-200802

IVORY,TRIM0#

sub72123-30090

main72123-30090-B0iGRS180,181..ROYEX200312-200509

sub72123-30090

main72123-30090-B0iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub72123-30090

main72123-30090-B1iGRS180,181..ROYEX200509-200802

sub72123-30090

main72123-30090-B1iGRS180,181..ROYEX200509-200802

sub72123-30090

main72123-30090-B1iGRS180..ROY200509-200802

GRAY,TRIM1#

sub72123-30090

main72123-30090-C0iGRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C200312-200802

BLACK,TRIM2#

sub72123-30090

main72127-30080-A0iGRS183200312-200802

main72127-30080-A0iGRS180,181..ROYEX200312-200802

IVORY,TRIM0#

main72127-30080-B0iGRS183200312-200509

main72127-30080-B0iGRS183200312-200509

GRAY,TRIM1#

main72127-30080-B1iGRS183200509-200802

GRAY,TRIM1#

main72127-30080-B1iGRS183200509-200802

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-30010iGRS181..ATH200509-200802

main72136-30010iUZS18#200312-200802

main72136-30010iGRS180..ROY200509-200802

main72136-30010iGRS180..ROY200509-200802

main72136-30030iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200802

main72136-30030iGRS180,181..ROYEX200509-200802

main72136-30030iGRS180,181..ROYEX200509-200802

main72136-30040iGRS180,181..ROYEX200312-200802

main72136-30040iGRS182,183,UZS18#200312-200802

main72136-30040iGRS182,183,184200509-200802

main72136-30040iGRS182,183,184200509-200802

main72136-30040iGRS182,183,184200509-200802

main72136-30040iGRS182,183,184200509-200802

main72136-30040iGRS182,183,184200509-200802

main72136-30040iGRS182,183,184200509-200802

72137BCOVER, SEAT TRACK, RH

main72137-30190-A0iGRS180,182,183..ROY,ROYG200509-200802

sub72137-30190

main72137-30190-A0iGRS180,181..ROYEX200312-200802

IVORY,TRIM0#

sub72137-30190

main72137-30190-A0iGRS180,182,183..ROY,ROYG200509-200802

sub72137-30190

main72137-30190-B0iGRS18#..ATH,ROY,ROYG200312-200509

sub72137-30190

main72137-30190-B0iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

sub72137-30190

main72137-30190-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub72137-30190

main72137-30190-B1iGRS18#..ATH,ROY,ROYG200509-200802

GRAY,TRIM1#

sub72137-30190

main72137-30190-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub72137-30190

main72137-30190-C0iUZS18#200312-200802

BLACK,TRIM2#

sub72137-30190

main72137-30200-A0iGRS183200312-200802

main72137-30200-A0iGRS180,181..ROYEX200312-200802

IVORY,TRIM0#

main72137-30200-B0iGRS183200312-200509

main72137-30200-B0iGRS183200312-200509

GRAY,TRIM1#

main72137-30200-B1iGRS183200509-200802

main72137-30200-B1iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-30090-A0iGRS180,181..ROYEX200312-200802

IVORY,TRIM0#

main72157-30090-A0iGRS180,181..ROYEX200509-200802

main72157-30090-A0iGRS180,181..ROYEX200509-200802

main72157-30090-B0iGRS18#..ATH,ROY,ROYG200312-200509

main72157-30090-B0iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

main72157-30090-B1iGRS18#..ATH,ROY,ROYG200509-200802

GRAY,TRIM1#

main72157-30090-B1iGRS18#..ATH,ROY,ROYG200509-200802

main72157-30090-B1iGRS180..ROY200509-200802

main72157-30090-C0iGRS180,181,184..ATH200312-200802

BLACK,TRIM2#

main72157-30100-A0iGRS183200312-200802

IVORY,TRIM0#

main72157-30100-A0iGRS183200312-200802

main72157-30100-B0iGRS183200312-200509

main72157-30100-B0iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

main72157-30100-B1iGRS180,181..ROYEX200509-200802

main72157-30100-B1iGRS183200509-200802

GRAY,TRIM1#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30260iGRS18#200312-200802

73178BCAP, SEAT BELT ANCHOR COVER

main73178-30030-A0iGRS180..ROY200509-200802

sub73178-30030

main73178-30030-A0iGRS180..ROY200312-200802

IVORY,TRIM0#

sub73178-30030

main73178-30030-A0iGRS180..ROY200509-200802

sub73178-30030

main73178-30030-A0iGRS180..ROY200509-200802

sub73178-30030

main73178-30030-B0iGRS18#200312-200509

GRAY,TRIM1#

sub73178-30030

main73178-30030-B1iGRS180..ROY200509-200802

sub73178-30030

main73178-30030-B1iGRS18#200509-200802

GRAY,TRIM1#

sub73178-30030

main73178-30030-C0iGRS180,181,184..ATH200312-200802

BLACK,TRIM2#

sub73178-30030

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-47031iGRS182,183,184200509-200802

main73910-47031iGRS182,183,UZS18#200312-200812

main73910-47031iGRS182,183,184200509-200802

main73910-47031iGRS182,183,184200509-200802

main73910-47031iGRS182,183,184200509-200802

main73910-47031iGRS182,183,184200509-200802

main73910-47031iGRS182,183,184200509-200802

74617CPLUG, ASSIST GRIP

main74617-30060iGRS180,181..ROYEX200509-200802

main74617-30060iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200606

main74617-30060iGRS182,183..ROY200509-200802

main74617-30060iGRS182,183..ROY200509-200802

main74617-30060iGRS182,183..ROY200509-200802

74620AGRIP ASSY, ASSIST, REAR

main74620-30080-A0iGRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG200312-200802

IVORY,TRIM0#

main74620-30080-A0iGRS182,183..ROY200509-200802

main74620-30080-A0iGRS182,183..ROY200509-200802

main74620-30080-A0iGRS182,183..ROY200509-200802

main74620-30080-A0iGRS182,183..ROY200509-200802

main74620-30080-B0iGRS180,181..ROYEX200312-200509

main74620-30080-B0iGRS180,181..ROYEX200312-200509

main74620-30080-B0iGRS180,181..ROYEX200312-200509

main74620-30080-B0iGRS182,183..ROY200312-200509

main74620-30080-B0iGRS180,181..ROYEX200312-200509

main74620-30080-B0iGRS180,181..ROYEX200312-200509

main74620-30080-B0iGRS180,181..ROYEX200312-200509

GRAY,TRIM1#

main74620-30080-B0iGRS180,181..ROYEX200312-200509

main74620-30080-B1iGRS182,183..ROY200509-200802

main74620-30080-B1iGRS182,183..ROY200509-200802

main74620-30080-B1iGRS182,183..ROY200509-200802

GRAY,TRIM1#

main74620-30080-B1iGRS182,183..ROY200509-200802

main74620-30080-B1iGRS182,183..ROY200509-200802

main74620-30080-C0iGRS180,181,184..ATH200312-200802

BLACK,TRIM2#

74671CSUPPORT, ASSIST GRIP

main74671-30020-A0iGRS182,183..ROY200509-200802

main74671-30020-A0iUZS18#200312-200802

IVORY,TRIM0#

main74671-30020-A0iGRS180..ROY200509-200802

main74671-30020-A0iGRS180..ROY200509-200802

main74671-30020-A0iGRS180..ROY200509-200802

main74671-30020-B0iGRS180,181..ROYEX200312-200509

main74671-30020-B0iGRS182,183..ROY200312-200509

main74671-30020-B0iGRS182,183..ROY200312-200509

main74671-30020-B0iGRS182,183..ROY200312-200509

GRAY,TRIM1#

main74671-30020-B0iGRS182,183..ROY200312-200509

main74671-30020-B1iGRS180,181..ROYEX200509-200802

main74671-30020-B1iGRS180,181..ROYEX200509-200802

main74671-30020-B1iGRS180,181..ROYEX200509-200802

main74671-30020-B1iGRS180,181..ROYEX200509-200802

GRAY,TRIM1#

main74671-30020-B1iGRS180,181..ROYEX200509-200802

main74671-30020-C0iGRS180,181,184..ATH200312-200802

BLACK,TRIM2#

8121

8202

8401

8421

85821JMOTOR ASSY, POWER SEAT RECLINING, RH

main85801-58020iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200812

main85801-58020iGRS18#..ATH,ROY,ROYG200509-200802

main85801-58020iGRS18#..ATH,ROY,ROYG200509-200802

85821KMOTOR ASSY, POWER SEAT TILT, RH

main85801-58040iUZS18#200312-200812

main85801-58040iGRS180,181..ROYEX200509-200802

main85801-58040iGRS180,181..ROYEX200509-200802

85821LMOTOR ASSY, POWER SEAT LIFTER, RH

main85801-58030iGRS180,181..ROYEX200509-200802

main85801-58030iUZS18#200312-200812

main85801-58030iGRS18#..ATH,ROY,ROYG200509-200802

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

9008416012

main90084-16012

9011005011

main90110-05011

9011005012

main90110-05012

9011005013

main90110-05013

9011910926

main90119-10926

9011910927

main90119-10927

9014860038

main90148-60038

9014880059

main90148-80059

9014880060

main90148-80060

9014880061

main90148-80061

9014880062

main90148-80062

9015940159

main90159-40159

9015960005

main90159-60005

9016740044

main90167-40044

9018305048

main90183-05048

9038910041

main90389-10041

9356054012

main93560-54012

9417060600

main94170-60600

9418560600

main94185-60600

56 parts on this diagram · 12 diagrams in section
