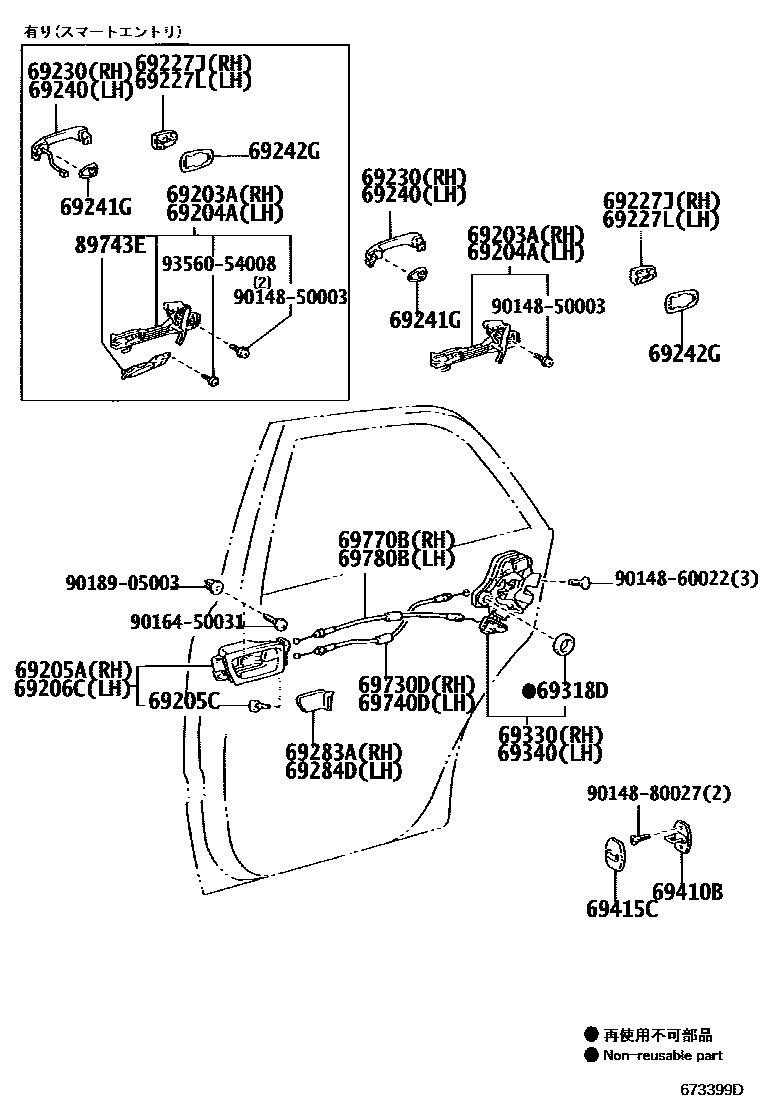

REAR DOOR LOCK & HANDLE

0001 1 0003 1

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-30010iGRS180..ROY200312-200802

main69203-30010iGRS180,181..ROYEX200312-200802

main69203-30020iGRS18#..ATH,ROY,ROYG200312-200606

main69203-30020iGRS181..ROYEX200408-200509

main69203-30040iGRS181..ROYEX200509-200802

main69203-30040iGRS181..ROYEX200704-200802

main69203-30040iUZS18#200606

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-30010iGRS180,181..ROYEX200312-200802

main69204-30010iGRS180,181..ROYEX200312-200802

main69204-30020iGRS18#..ATH,ROY,ROYG200312-200606

main69204-30020iGRS181..ROYEX200408-200509

main69204-30040iGRS181..ROYEX200704-200802

main69204-30040iGRS18#..ATH,ROY,ROYG200509-200802

main69204-30040iUZS18#200606

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-30170-A0iGRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG200312-200812

IVORY,TRIM0#

main69205-30170-B0iGRS18#200312-200509

GRAY,TRIM1#

main69205-30170-B1iGRS18#200509-200802

GRAY,TRIM1#

main69205-30170-C0iUZS18#200312-200812

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iGRS18#200312-200802

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-30170-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200812

IVORY,TRIM0#

main69206-30170-B0iGRS18#200312-200509

GRAY,TRIM1#

main69206-30170-B1iGRS18#200509-200802

GRAY,TRIM1#

main69206-30170-C0iUZS18#200312-200812

BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69207-30040-A0iGRS18#..ATH,ROY,ROYG200312-200802

SUPER WHITE 2,040

sub69207-30040

main69207-30040-A0iGRS181..ROYEX200408-200802

sub69207-30040

main69207-30040-A1iGRS181..ROYEX200312-200802

WHITE PEARL CS.,062

sub69207-30040

main69207-30040-A1iGRS181..ROYEX200704-200802

sub69207-30040

main69207-30040-A1iGRS181..ROYEX200408-200802

sub69207-30040

main69207-30040-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69207-30040

main69207-30040-B0iGRS18#..ATH,ROY,ROYG200312-200606

SILVER ME.,1C0

sub69207-30040

main69207-30040-B0iGRS181..ROYEX200408-200509

sub69207-30040

main69207-30040-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub69207-30040

main69207-30040-B1iGRS18#..ATH,ROY,ROYG200509-200802

PREMIUM SILVER PEARL,1F3

sub69207-30040

main69207-30040-B1iGRS18#..ATH,ROY,ROYG200312-200606

SATIN PEARL MC.,1F3

sub69207-30040

main69207-30040-B1iGRS181..ROYEX200408-200509

sub69207-30040

main69207-30040-B1iGRS181..ROYEX200704-200802

sub69207-30040

main69207-30040-B2iGRS181..ROYEX200509-200802

SILVER ME.,1F7

sub69207-30040

main69207-30040-B2iGRS181..ROYEX200509-200802

sub69207-30040

main69207-30040-B2iGRS180,181,182..ATH200501-200509

sub69207-30040

main69207-30040-B2iGRS181..ROYEX200704-200802

sub69207-30040

main69207-30040-B7iGRS181..ROYEX200509-200802

sub69207-30040

main69207-30040-B7iGRS18#..ATH,ROY,ROYG200509-200802

QUARTZ GRAY PM.,1G4

sub69207-30040

main69207-30040-B8iUZS18#200606

GRAY ME.,1F9

sub69207-30040

main69207-30040-C0iGRS18#..ATH,ROY,ROYG200408-200802

sub69207-30040

main69207-30040-C0iGRS18#..ATH,ROY,ROYG200312-200802

BLACK,202

sub69207-30040

main69207-30040-D0iGRS18#..ATH,ROY,ROYG200408-200802

sub69207-30040

main69207-30040-D0iGRS18#..ATH,ROY,ROYG200312-200802

BLACKISH RED MC.,3R0

sub69207-30040

main69207-30040-D0iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

sub69207-30040

main69207-30040-D3iGRS18#..ATH,ROY,ROYG200509-200704

sub69207-30040

main69207-30040-D3iGRS181..ROYEX200509-200704

GINGER RED M.M.,3R6

sub69207-30040

main69207-30040-G0iUZS18#200406-200606

OLIVE M.M.,6T7

sub69207-30040

main69207-30040-J0iGRS181..ROYEX200408-200509

sub69207-30040

main69207-30040-J0iUZS18#200312-200606

DARK BLUE MC.,8P8

sub69207-30040

main69207-30040-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

sub69207-30040

main69207-30040-J2iGRS181..ROYEX200509-200802

DK.BLUE MC.,8S6

sub69207-30040

main69207-30040-J2iGRS181..ROYEX200509-200802

sub69207-30040

main69227-30070iGRS183200312-200802

main69227-30070iGRS183200312-200802

main69227-30070iGRS183200312-200802

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69207-30040-A0iGRS181..ROYEX200408-200802

sub69207-30040

main69207-30040-A0iGRS18#..ATH,ROY,ROYG200312-200802

SUPER WHITE 2,040

sub69207-30040

main69207-30040-A1iGRS181..ROYEX200408-200802

sub69207-30040

main69207-30040-A1iUZS18#200312-200802

WHITE PEARL CS.,062

sub69207-30040

main69207-30040-A1iGRS181..ROYEX200704-200802

sub69207-30040

main69207-30040-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69207-30040

main69207-30040-B0iGRS18#..ATH,ROY,ROYG200312-200606

SILVER ME.,1C0

sub69207-30040

main69207-30040-B0iGRS181..ROYEX200408-200509

sub69207-30040

main69207-30040-B1iUZS18#200509-200802

PREMIUM SILVER PEARL,1F3

sub69207-30040

main69207-30040-B1iGRS18#..ATH,ROY,ROYG200312-200606

SATIN PEARL MC.,1F3

sub69207-30040

main69207-30040-B1iGRS181..ROYEX200704-200802

sub69207-30040

main69207-30040-B1iGRS181..ROYEX200408-200509

sub69207-30040

main69207-30040-B1iGRS181..ROYEX200509-200802

sub69207-30040

main69207-30040-B2iGRS181..ROYEX200509-200802

SILVER ME.,1F7

sub69207-30040

main69207-30040-B2iGRS181..ROYEX200509-200802

sub69207-30040

main69207-30040-B2iGRS181..ROYEX200704-200802

sub69207-30040

main69207-30040-B2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69207-30040

main69207-30040-B7iGRS181..ROYEX200509-200802

sub69207-30040

main69207-30040-B7iGRS18#..ATH,ROY,ROYG200509-200802

QUARTZ GRAY PM.,1G4

sub69207-30040

main69207-30040-B8iUZS18#200606

GRAY ME.,1F9

sub69207-30040

main69207-30040-C0iGRS18#..ATH,ROY,ROYG200408-200802

sub69207-30040

main69207-30040-C0iGRS181..ROYEX200312-200802

BLACK,202

sub69207-30040

main69207-30040-D0iGRS181..ROYEX200312-200802

BLACKISH RED MC.,3R0

sub69207-30040

main69207-30040-D0iGRS181..ROYEX200408-200802

sub69207-30040

main69207-30040-D0iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

sub69207-30040

main69207-30040-D3iGRS18#..ATH,ROY,ROYG200509-200704

sub69207-30040

main69207-30040-D3iGRS181..ROYEX200509-200704

GINGER RED M.M.,3R6

sub69207-30040

main69207-30040-G0iUZS18#200406-200606

OLIVE M.M.,6T7

sub69207-30040

main69207-30040-J0iUZS18#200312-200606

DARK BLUE MC.,8P8

sub69207-30040

main69207-30040-J0iGRS181..ROYEX200408-200509

sub69207-30040

main69207-30040-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

sub69207-30040

main69207-30040-J2iGRS18#..ATH,ROY,ROYG200509-200802

sub69207-30040

main69207-30040-J2iGRS181..ROYEX200509-200802

DK.BLUE MC.,8S6

sub69207-30040

main69227-30070iGRS180,181..ROYEX200312-200802

main69227-30070iGRS183200312-200802

main69227-30070iGRS183200312-200802

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-30290-A0iGRS180,182,183..ROY,ROYG200312-200509

SUPER WHITE 2,040

sub69210-30290

main69210-30290-A0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-A1iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-A1iGRS18#..ATH,ROY,ROYG200312-200606

WHITE PEARL CS.,062

sub69210-30290

main69210-30290-A4iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69210-30290

main69210-30290-B0iGRS18#..ATH,ROY,ROYG200312-200606

SILVER ME.,1C0

sub69210-30290

main69210-30290-B0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-B1iGRS18#..ATH,ROY,ROYG200312-200606

SATIN PEARL MC.,1F3

sub69210-30290

main69210-30290-B1iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-B2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69210-30290

main69210-30290-C0iUZS18#200312-200606

BLACK,202

sub69210-30290

main69210-30290-C0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-D0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-D0iUZS18#200312-200606

BLACKISH RED MC.,3R0

sub69210-30290

main69210-30290-G0iUZS18#200406-200606

OLIVE M.M.,6T7

sub69210-30290

main69210-30290-J0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-J0iGRS180,182,183..ROY,ROYG200312-200606

DARK BLUE MC.,8P8

sub69210-30290

main69210-30290-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

sub69210-30290

main69210-30310-A0iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-A0iGRS180,182,183..ROY,ROYG200509-200802

SUPER WHITE 2,040

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS181..ROYEX200509-200802

WHITE PEARL CS.,062

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS181..ROYEX200509-200802

PREMIUM SILVER PEARL,1F3

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS181..ROYEX200509-200802

SILVER ME.,1F7

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS181..ROYEX200509-200802

QUARTZ GRAY PM.,1G4

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B6iUZS18#200606

GRAY ME.,1F9

sub69210-30310

sub69210-30290

main69210-30310-C0iUZS18#200509-200802

BLACK,202

sub69210-30310

sub69210-30290

main69210-30310-C0iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-D0iGRS181..ROYEX200509-200704

GINGER RED M.M.,3R6

sub69210-30310

sub69210-30290

main69210-30310-D0iGRS18#..ATH,ROY,ROYG200509-200704

sub69210-30310

sub69210-30290

main69210-30310-D2iUZS18#200606-200802

BLACKISH RED MC.,3R0

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS18#..ATH,ROY,ROYG200704-200802

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS180,182,183..ROY,ROYG200509-200802

DK.BLUE MC.,8S6

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS180,182,183..ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-J4iUZS18#200606

DARK BLUE MC.,8P8

sub69210-30310

sub69210-30290

main69210-58010iGRS180,181..ROYEX200312-200802

main69210-58010iGRS180,181..ROYEX200312-200802

main69210-58010iGRS183200312-200802

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-30290-A0iGRS180,182,183..ROY,ROYG200312-200509

SUPER WHITE 2,040

sub69210-30290

main69210-30290-A0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-A1iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-A1iGRS18#..ATH,ROY,ROYG200312-200606

WHITE PEARL CS.,062

sub69210-30290

main69210-30290-A4iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69210-30290

main69210-30290-B0iGRS18#..ATH,ROY,ROYG200312-200606

SILVER ME.,1C0

sub69210-30290

main69210-30290-B0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-B1iGRS18#..ATH,ROY,ROYG200312-200606

SATIN PEARL MC.,1F3

sub69210-30290

main69210-30290-B1iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-B2iGRS180,181,182..ATH200501-200509

sub69210-30290

main69210-30290-C0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-C0iUZS18#200312-200606

BLACK,202

sub69210-30290

main69210-30290-D0iUZS18#200312-200606

BLACKISH RED MC.,3R0

sub69210-30290

main69210-30290-D0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-G0iUZS18#200406-200606

OLIVE M.M.,6T7

sub69210-30290

main69210-30290-J0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-J0iUZS18#200312-200606

DARK BLUE MC.,8P8

sub69210-30290

main69210-30290-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

sub69210-30290

main69210-30310-A0iGRS180,182,183..ROY,ROYG200509-200802

SUPER WHITE 2,040

sub69210-30310

sub69210-30290

main69210-30310-A0iGRS180,182,183..ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-A0iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS18#..ATH,ROY,ROYG200509-200802

WHITE PEARL CS.,062

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS18#..ATH,ROY,ROYG200509-200802

PREMIUM SILVER PEARL,1F3

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS181..ROYEX200509-200802

SILVER ME.,1F7

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS18#..ATH,ROY,ROYG200509-200802

QUARTZ GRAY PM.,1G4

sub69210-30310

sub69210-30290

main69210-30310-B6iUZS18#200606

GRAY ME.,1F9

sub69210-30310

sub69210-30290

main69210-30310-C0iGRS181..ROYEX200509-200802

BLACK,202

sub69210-30310

sub69210-30290

main69210-30310-C0iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-C0iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-D0iGRS18#..ATH,ROY,ROYG200509-200704

GINGER RED M.M.,3R6

sub69210-30310

sub69210-30290

main69210-30310-D0iGRS181..ROYEX200509-200704

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS18#..ATH,ROY,ROYG200606-200802

BLACKISH RED MC.,3R0

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS180,182,183..ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS180,182,183..ROY,ROYG200509-200802

DK.BLUE MC.,8S6

sub69210-30310

sub69210-30290

main69210-30310-J4iUZS18#200606

DARK BLUE MC.,8P8

sub69210-30310

sub69210-30290

main69210-58010iGRS180,181..ROYEX200312-200802

main69210-58010iGRS183200312-200802

main69210-58010iGRS183200312-200802

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-28060iGRS18#200312-200802

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-60030iGRS18#200312-200802

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-33020-A1iUZS18#200312-200802

IVORY,TRIM0#

sub69283-33020

main69283-33020-B3iGRS18#200312-200509

GRAY,TRIM1#

sub69283-33020

main69283-33020-B4iGRS18#200509-200802

GRAY,TRIM1#

sub69283-33020

main69283-33020-C0iUZS18#200312-200802

BLACK,TRIM2#

sub69283-33020

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-33020-A1iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200802

IVORY,TRIM0#

sub69284-33020

main69284-33020-B3iGRS18#200312-200509

GRAY,TRIM1#

sub69284-33020

main69284-33020-B4iGRS18#200509-200802

GRAY,TRIM1#

sub69284-33020

main69284-33020-C0iUZS18#200312-200802

BLACK,TRIM2#

sub69284-33020

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRS18#200312-200802

69330LOCK ASSY, REAR DOOR, RH

main69050-30480iUZS18#200312-200802

69340LOCK ASSY, REAR DOOR, LH

main69060-30530iUZS18#200312-200802

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33020iGRS18#200312-200802

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-33010iGRS18#200312-200802

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-30140iGRS18#200312-200802

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-30140iUZS18#200312-200802

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-30270iUZS18#200312-200802

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-30270iUZS18#200312-200802

89743EBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-30130iGRS18#..ATH,ROY,ROYG200312-200606

main89743-30130iGRS181..ROYEX200408-200509

main89743-68010iGRS18#..ATH,ROY,ROYG200312-200606

main89743-68010iGRS181..ROYEX200408-200509

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9016450031

main90164-50031

9018905003

main90189-05003

9356054008

main93560-54008

29 parts on this diagram · 2 diagrams in section
