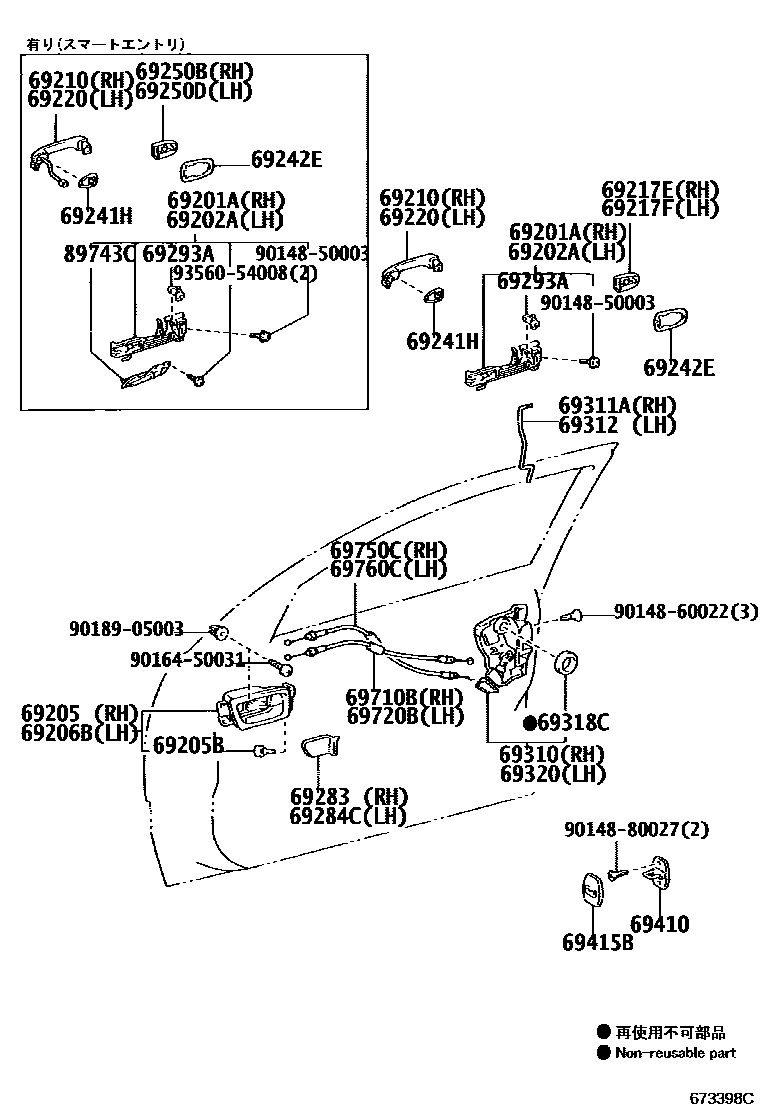

FRONT DOOR LOCK & HANDLE

0001 1 0003 1

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30020iGRS180,181..ROYEX200312-200802

main69201-30020iGRS180..ROY200312-200802

main69201-30030iGRS18#..ATH,ROY,ROYG200312-200606

main69201-30030iGRS181..ROYEX200408-200509

main69201-30060iGRS181..ROYEX200509-200802

main69201-30060iGRS181..ROYEX200704-200802

main69201-30060iUZS18#200606

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30020iGRS180,181..ROYEX200312-200802

main69202-30020iGRS180,181..ROYEX200312-200802

main69202-30030iGRS18#..ATH,ROY,ROYG200312-200606

main69202-30030iGRS181..ROYEX200408-200509

main69202-30050iGRS18#..ATH,ROY,ROYG200509-200802

main69202-30050iGRS181..ROYEX200704-200802

main69202-30050iUZS18#200606

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30170-A0iGRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG200312-200812

IVORY,TRIM0#

main69205-30170-B0iGRS18#200312-200509

GRAY,TRIM1#

main69205-30170-B1iGRS18#200509-200802

GRAY,TRIM1#

main69205-30170-C0iGRS180,181,184..ATH200312-200812

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iUZS18#200312-200802

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30170-A0iUZS18#200312-200812

IVORY,TRIM0#

main69206-30170-B0iGRS18#200312-200509

GRAY,TRIM1#

main69206-30170-B1iGRS18#200509-200802

GRAY,TRIM1#

main69206-30170-C0iGRS180,181,184..ATH200312-200812

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30290-A0iGRS180,182,183..ROY,ROYG200312-200509

SUPER WHITE 2,040

sub69210-30290

main69210-30290-A0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-A1iGRS18#..ATH,ROY,ROYG200312-200606

WHITE PEARL CS.,062

sub69210-30290

main69210-30290-A1iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-A4iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69210-30290

main69210-30290-B0iUZS18#200312-200606

SILVER ME.,1C0

sub69210-30290

main69210-30290-B0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-B1iUZS18#200312-200606

SATIN PEARL MC.,1F3

sub69210-30290

main69210-30290-B1iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-B2iGRS180,181,182..ATH200501-200509

sub69210-30290

main69210-30290-C0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-C0iUZS18#200312-200606

BLACK,202

sub69210-30290

main69210-30290-D0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-D0iGRS180,182,183..ROY,ROYG200312-200606

BLACKISH RED MC.,3R0

sub69210-30290

main69210-30290-G0iUZS18#200406-200606

OLIVE M.M.,6T7

sub69210-30290

main69210-30290-J0iGRS180,182,183..ROY,ROYG200312-200606

DARK BLUE MC.,8P8

sub69210-30290

main69210-30290-J0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

sub69210-30290

main69210-30310-A0iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-A0iGRS181..ROYEX200509-200802

SUPER WHITE 2,040

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS181..ROYEX200509-200802

WHITE PEARL CS.,062

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS18#..ATH,ROY,ROYG200509-200802

PREMIUM SILVER PEARL,1F3

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS18#..ATH,ROY,ROYG200509-200802

SILVER ME.,1F7

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS18#..ATH,ROY,ROYG200509-200802

QUARTZ GRAY PM.,1G4

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B6iUZS18#200606

GRAY ME.,1F9

sub69210-30310

sub69210-30290

main69210-30310-C0iGRS18#..ATH,ROY,ROYG200509-200802

BLACK,202

sub69210-30310

sub69210-30290

main69210-30310-C0iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-D0iGRS181..ROYEX200509-200704

sub69210-30310

sub69210-30290

main69210-30310-D0iGRS18#..ATH,ROY,ROYG200509-200704

GINGER RED M.M.,3R6

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181..ROYEX200606-200802

BLACKISH RED MC.,3R0

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS18#..ATH,ROY,ROYG200704-200802

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS180,182,183..ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS180,182,183..ROY,ROYG200509-200802

DK.BLUE MC.,8S6

sub69210-30310

sub69210-30290

main69210-30310-J4iUZS18#200606

DARK BLUE MC.,8P8

sub69210-30310

sub69210-30290

main69210-58010iGRS180..ROY200312-200802

main69210-58010iGRS183200312-200802

main69210-58010iGRS183200312-200802

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-58010iGRS180,181..ROYEX200312-200802

main69217-58010iGRS180,181..ROYEX200312-200802

main69217-58010iGRS180,181..ROYEX200312-200802

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-30040iGRS180,181..ROYEX200312-200802

main69217-30040iGRS180,181..ROYEX200312-200802

main69217-30040iGRS180..ROY200312-200802

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-30290-A0iGRS180,182,183..ROY,ROYG200312-200509

SUPER WHITE 2,040

sub69210-30290

main69210-30290-A0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-A1iUZS18#200312-200606

WHITE PEARL CS.,062

sub69210-30290

main69210-30290-A1iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-A4iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69210-30290

main69210-30290-B0iUZS18#200312-200606

SILVER ME.,1C0

sub69210-30290

main69210-30290-B0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-B1iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-B1iUZS18#200312-200606

SATIN PEARL MC.,1F3

sub69210-30290

main69210-30290-B2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69210-30290

main69210-30290-C0iGRS18#..ATH,ROY,ROYG200312-200606

BLACK,202

sub69210-30290

main69210-30290-C0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-D0iUZS18#200312-200606

BLACKISH RED MC.,3R0

sub69210-30290

main69210-30290-D0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-G0iUZS18#200406-200606

OLIVE M.M.,6T7

sub69210-30290

main69210-30290-J0iGRS181..ROYEX200408-200509

sub69210-30290

main69210-30290-J0iGRS180,182,183..ROY,ROYG200312-200606

DARK BLUE MC.,8P8

sub69210-30290

main69210-30290-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

sub69210-30290

main69210-30310-A0iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-A0iGRS180,182,183..ROY,ROYG200509-200802

SUPER WHITE 2,040

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS18#..ATH,ROY,ROYG200509-200802

WHITE PEARL CS.,062

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-A1iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B0iGRS181..ROYEX200509-200802

PREMIUM SILVER PEARL,1F3

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS181..ROYEX200509-200802

SILVER ME.,1F7

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS18#..ATH,ROY,ROYG200509-200802

QUARTZ GRAY PM.,1G4

sub69210-30310

sub69210-30290

main69210-30310-B2iGRS181..ROYEX200509-200802

sub69210-30310

sub69210-30290

main69210-30310-B6iUZS18#200606

GRAY ME.,1F9

sub69210-30310

sub69210-30290

main69210-30310-C0iGRS18#..ATH,ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-C0iUZS18#200509-200802

BLACK,202

sub69210-30310

sub69210-30290

main69210-30310-D0iGRS181..ROYEX200509-200704

sub69210-30310

sub69210-30290

main69210-30310-D0iGRS18#..ATH,ROY,ROYG200509-200704

GINGER RED M.M.,3R6

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181..ROYEX200606-200802

BLACKISH RED MC.,3R0

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181..ROYEX200704-200802

sub69210-30310

sub69210-30290

main69210-30310-D2iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS180,182,183..ROY,ROYG200509-200802

DK.BLUE MC.,8S6

sub69210-30310

sub69210-30290

main69210-30310-J0iGRS180,182,183..ROY,ROYG200509-200802

sub69210-30310

sub69210-30290

main69210-30310-J4iUZS18#200606

DARK BLUE MC.,8P8

sub69210-30310

sub69210-30290

main69210-58010iGRS180,181..ROYEX200312-200802

main69210-58010iGRS183200312-200802

main69210-58010iGRS183200312-200802

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-28060iUZS18#200312-200802

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-60030iGRS18#200312-200802

69250BCOVER ASSY, DOOR OUTSIDE HANDLE

main69250-30010-A0iGRS18#..ATH,ROY,ROYG200408-200802

sub69250-30010

main69250-30010-A0iGRS180,182,183..ROY,ROYG200312-200802

SUPER WHITE 2,040

sub69250-30010

main69250-30010-A1iGRS18#..ATH,ROY,ROYG200408-200802

sub69250-30010

main69250-30010-A1iGRS18#..ATH,ROY,ROYG200312-200802

WHITE PEARL CS.,062

sub69250-30010

main69250-30010-A1iGRS181..ROYEX200704-200802

sub69250-30010

main69250-30010-A5iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69250-30010

main69250-30010-B0iUZS18#200312-200606

SILVER ME.,1C0

sub69250-30010

main69250-30010-B0iGRS181..ROYEX200408-200509

sub69250-30010

main69250-30010-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub69250-30010

main69250-30010-B1iGRS18#..ATH,ROY,ROYG200509-200802

PREMIUM SILVER PEARL,1F3

sub69250-30010

main69250-30010-B1iGRS181..ROYEX200408-200509

sub69250-30010

main69250-30010-B1iGRS18#..ATH,ROY,ROYG200312-200606

SATIN PEARL MC.,1F3

sub69250-30010

main69250-30010-B1iGRS181..ROYEX200704-200802

sub69250-30010

main69250-30010-B2iGRS18#..ATH,ROY,ROYG200509-200802

sub69250-30010

main69250-30010-B2iGRS180,181,182..ATH200501-200509

sub69250-30010

main69250-30010-B2iGRS18#..ATH,ROY,ROYG200509-200802

SILVER ME.,1F7

sub69250-30010

main69250-30010-B2iGRS181..ROYEX200704-200802

sub69250-30010

main69250-30010-B8iGRS181..ROYEX200509-200802

sub69250-30010

main69250-30010-B8iGRS18#..ATH,ROY,ROYG200509-200802

QUARTZ GRAY PM.,1G4

sub69250-30010

main69250-30010-B9iUZS18#200606

GRAY ME.,1F9

sub69250-30010

main69250-30010-C0iGRS18#..ATH,ROY,ROYG200312-200802

BLACK,202

sub69250-30010

main69250-30010-C0iGRS181..ROYEX200408-200802

sub69250-30010

main69250-30010-D0iGRS181..ROYEX200312-200802

BLACKISH RED MC.,3R0

sub69250-30010

main69250-30010-D0iGRS181..ROYEX200408-200802

sub69250-30010

main69250-30010-D0iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

sub69250-30010

main69250-30010-D3iGRS181..ROYEX200509-200704

sub69250-30010

main69250-30010-D3iGRS18#..ATH,ROY,ROYG200509-200704

GINGER RED M.M.,3R6

sub69250-30010

main69250-30010-G0iUZS18#200406-200606

OLIVE M.M.,6T7

sub69250-30010

main69250-30010-J0iUZS18#200312-200606

DARK BLUE MC.,8P8

sub69250-30010

main69250-30010-J0iGRS181..ROYEX200408-200509

sub69250-30010

main69250-30010-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

sub69250-30010

main69250-30010-J2iGRS181..ROYEX200509-200802

sub69250-30010

main69250-30010-J2iGRS18#..ATH,ROY,ROYG200509-200802

DK.BLUE MC.,8S6

sub69250-30010

69250DCOVER ASSY, DOOR OUTSIDE HANDLE, LH

main69250-30020-A0iGRS18#..ATH,ROY,ROYG200408-200802

sub69250-30020

main69250-30020-A0iGRS180,182,183..ROY,ROYG200312-200802

SUPER WHITE 2,040

sub69250-30020

main69250-30020-A1iGRS181..ROYEX200408-200802

sub69250-30020

main69250-30020-A1iGRS181..ROYEX200312-200802

WHITE PEARL CS.,062

sub69250-30020

main69250-30020-A1iGRS181..ROYEX200704-200802

sub69250-30020

main69250-30020-A4iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69250-30020

main69250-30020-B0iUZS18#200312-200606

SILVER ME.,1C0

sub69250-30020

main69250-30020-B0iGRS181..ROYEX200408-200509

sub69250-30020

main69250-30020-B1iGRS181..ROYEX200509-200802

PREMIUM SILVER PEARL,1F3

sub69250-30020

main69250-30020-B1iGRS18#..ATH,ROY,ROYG200312-200606

SATIN PEARL MC.,1F3

sub69250-30020

main69250-30020-B1iGRS181..ROYEX200408-200509

sub69250-30020

main69250-30020-B1iGRS181..ROYEX200704-200802

sub69250-30020

main69250-30020-B1iGRS18#..ATH,ROY,ROYG200509-200802

sub69250-30020

main69250-30020-B2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

sub69250-30020

main69250-30020-B2iUZS18#200509-200802

SILVER ME.,1F7

sub69250-30020

main69250-30020-B2iGRS18#..ATH,ROY,ROYG200509-200802

sub69250-30020

main69250-30020-B2iGRS181..ROYEX200704-200802

sub69250-30020

main69250-30020-B7iGRS181..ROYEX200509-200802

sub69250-30020

main69250-30020-B7iGRS18#..ATH,ROY,ROYG200509-200802

QUARTZ GRAY PM.,1G4

sub69250-30020

main69250-30020-B8iUZS18#200606

GRAY ME.,1F9

sub69250-30020

main69250-30020-C0iGRS18#..ATH,ROY,ROYG200408-200802

sub69250-30020

main69250-30020-C0iGRS181..ROYEX200312-200802

BLACK,202

sub69250-30020

main69250-30020-D0iGRS18#..ATH,ROY,ROYG200312-200802

BLACKISH RED MC.,3R0

sub69250-30020

main69250-30020-D0iGRS181..ROYEX200408-200802

sub69250-30020

main69250-30020-D0iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

sub69250-30020

main69250-30020-D3iGRS181..ROYEX200509-200704

GINGER RED M.M.,3R6

sub69250-30020

main69250-30020-D3iGRS181..ROYEX200509-200704

sub69250-30020

main69250-30020-G0iUZS18#200406-200606

OLIVE M.M.,6T7

sub69250-30020

main69250-30020-J0iUZS18#200312-200606

DARK BLUE MC.,8P8

sub69250-30020

main69250-30020-J0iGRS181..ROYEX200408-200509

sub69250-30020

main69250-30020-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

sub69250-30020

main69250-30020-J2iGRS18#..ATH,ROY,ROYG200509-200802

DK.BLUE MC.,8S6

sub69250-30020

main69250-30020-J2iGRS181..ROYEX200509-200802

sub69250-30020

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-33020-A1iUZS18#200312-200802

IVORY,TRIM0#

sub69283-33020

main69283-33020-B3iGRS18#200312-200509

GRAY,TRIM1#

sub69283-33020

main69283-33020-B4iGRS18#200509-200802

GRAY,TRIM1#

sub69283-33020

main69283-33020-C0iUZS18#200312-200802

BLACK,TRIM2#

sub69283-33020

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-33020-A1iUZS18#200312-200802

IVORY,TRIM0#

sub69284-33020

main69284-33020-B3iGRS18#200312-200509

GRAY,TRIM1#

sub69284-33020

main69284-33020-B4iGRS18#200509-200802

GRAY,TRIM1#

sub69284-33020

main69284-33020-C0iUZS18#200312-200802

BLACK,TRIM2#

sub69284-33020

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iUZS18#200312-200802

main69293-12040iUZS18#200312-200802

69310LOCK ASSY, FRONT DOOR, RH

main69030-3A130iGRS18#200312-200802

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-30110iUZS18#200312-200802

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-30110iGRS18#200312-200802

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRS18#200312-200802

69320LOCK ASSY, FRONT DOOR, LH

main69040-30A00iGRS18#200312-200802

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33020iGRS18#200312-200802

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-33010iUZS18#200312-200802

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-30190iUZS18#200312-200802

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-30190iGRS18#200312-200802

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-30150iUZS18#200312-200802

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-30150iUZS18#200312-200802

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-30130iUZS18#200312-200606

main89743-30130iGRS181..ROYEX200408-200509

main89743-68010iUZS18#200312-200606

main89743-68010iGRS181..ROYEX200408-200509

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9016450031

main90164-50031

9018905003

main90189-05003

9356054008

main93560-54008

34 parts on this diagram · 2 diagrams in section
