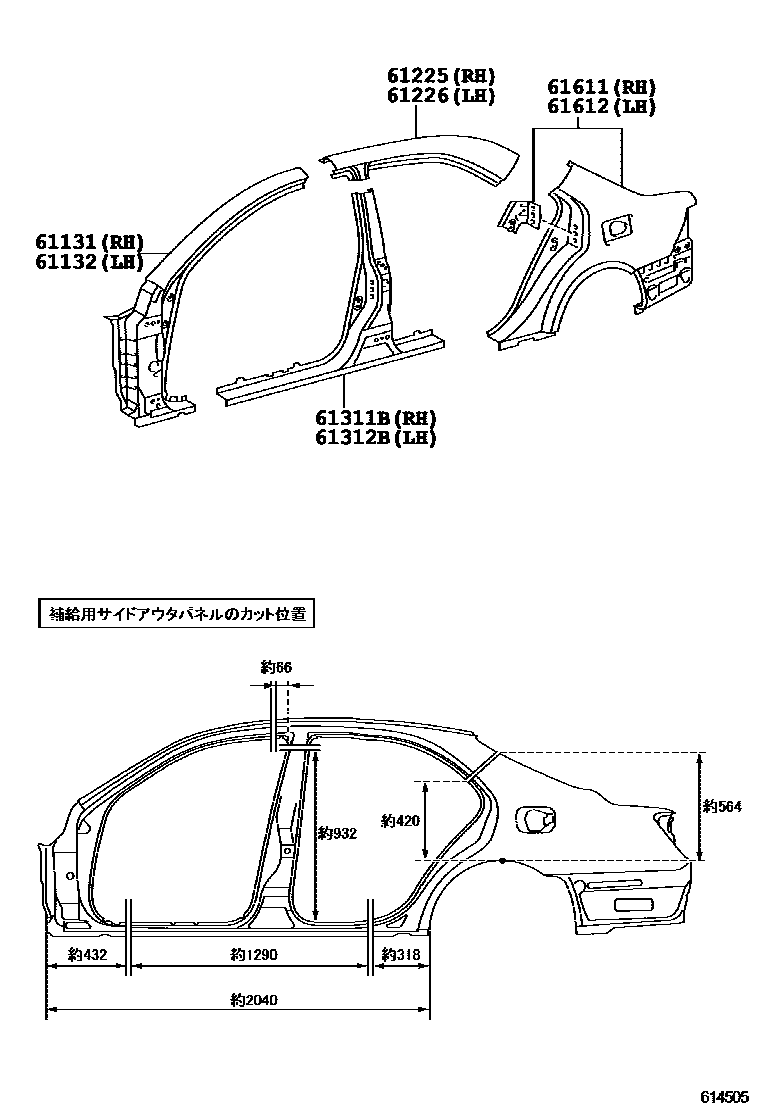

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-30250iGRS18#200312-200802

main61131-30280iUZS18#200406-200606

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-30290iGRS18#200312-200802

main61132-30300iUZS18#200406-200606

61225CHANNEL, ROOF DRIP, CENTER RH

main61225-30010iGRS18#200312-200501

sub61225-30011

main61225-30011iGRS18#200502-200802

main61225-30020iUZS18#200406-200501

sub61225-30021

main61225-30021iUZS18#200502-200606

61226CHANNEL, ROOF DRIP, CENTER LH

main61226-30010iGRS18#200312-200501

sub61226-30011

main61226-30011iGRS18#200502-200802

main61226-30020iUZS18#200406-200501

sub61226-30021

main61226-30021iUZS18#200502-200606

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30240iGRS18#200312-200802

main61311-30250iUZS18#200406-200606

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30330iGRS18#200312-200802

main61312-30340iUZS18#200406-200606

61611PANEL, QUARTER, RH

main61611-30860iGRS18#200312-200501

sub61611-30861

main61611-30861iGRS18#200502-200802

main61611-30870iUZS18#200406-200501

sub61611-30871

main61611-30871iUZS18#200502-200606

61612PANEL, QUARTER, LH

main61612-30A00iGRS18#200312-200501

sub61612-30A01

main61612-30A01iGRS18#200502-200802

main61612-30A10iUZS18#200406-200501

sub61612-30A11

main61612-30A11iUZS18#200502-200606

8 parts on this diagram · 3 diagrams in section
