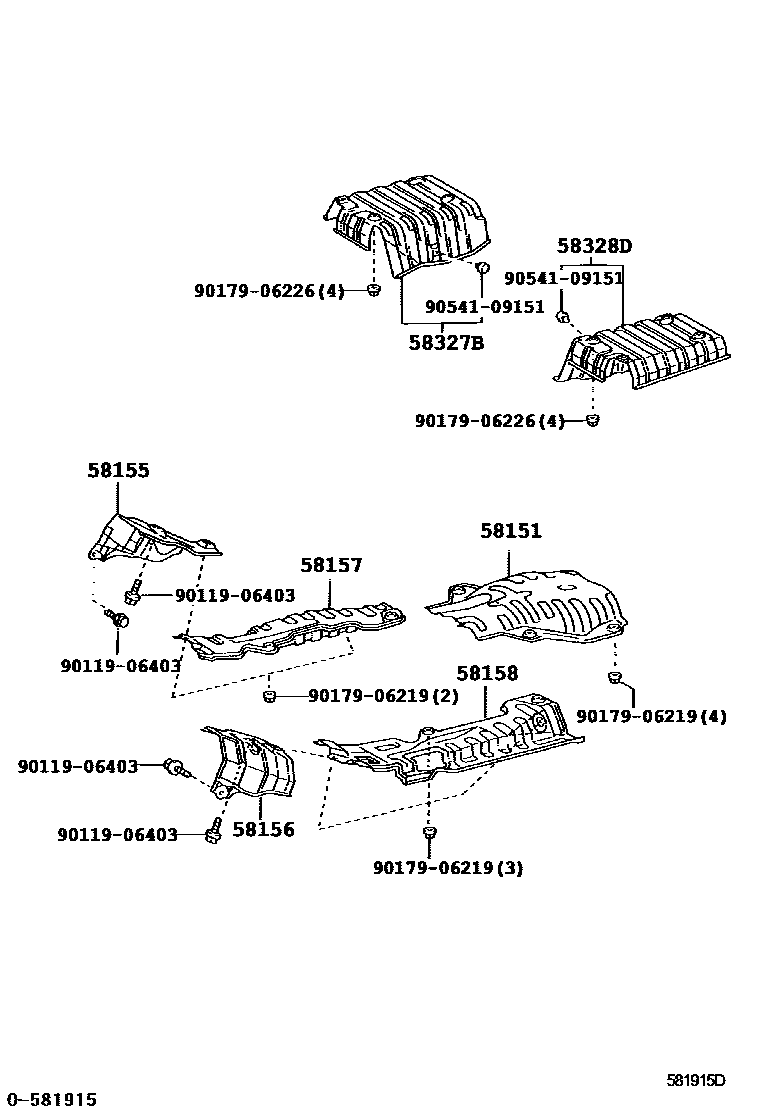

FLOOR INSULATOR

0001 1 0003 1 0005 1 0007 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30130iUZS186200312-200606

main58151-30140iGRS181,183,UZS187200312-200510

main58151-30160iGRS180,182,184200509-200802

main58151-30170iGRS181,183200509-200510

sub58151-30171

main58151-30171iGRS181,183200511-200802

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040iGRS18#200312-200802

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGRS180,182200312-200802

main58156-30090iUZS187200312-200802

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30070iGRS18#,UZS18#200312-200411

sub58157-30071

main58157-30071iUZS18#200412-200802

sub58157-30072

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30060iGRS180,182,UZS186200312-200411

sub58158-30061

main58158-30061iGRS180,182200412-200802

sub58158-30062

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30050iGRS18#200312-200405

sub58327-30051

main58327-30051iGRS18#,UZS18#200406-200409

sub58327-30052

main58327-30052iGRS180,181..5FC;GRS182,183,UZS18#200409-200802

main58327-30053iUZS18#200801

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30030iGRS18#200312-200405

sub58328-30031

main58328-30031iGRS18#,UZS18#200406-200409

sub58328-30032

main58328-30032iGRS18#,UZS18#200409-200501

sub58328-30033

main58328-30033iGRS180,181..5FC;GRS182,183,UZS18#200502-200802

main58328-30034iUZS18#200801

9011906403

main90119-06403

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

11 parts on this diagram · 4 diagrams in section
