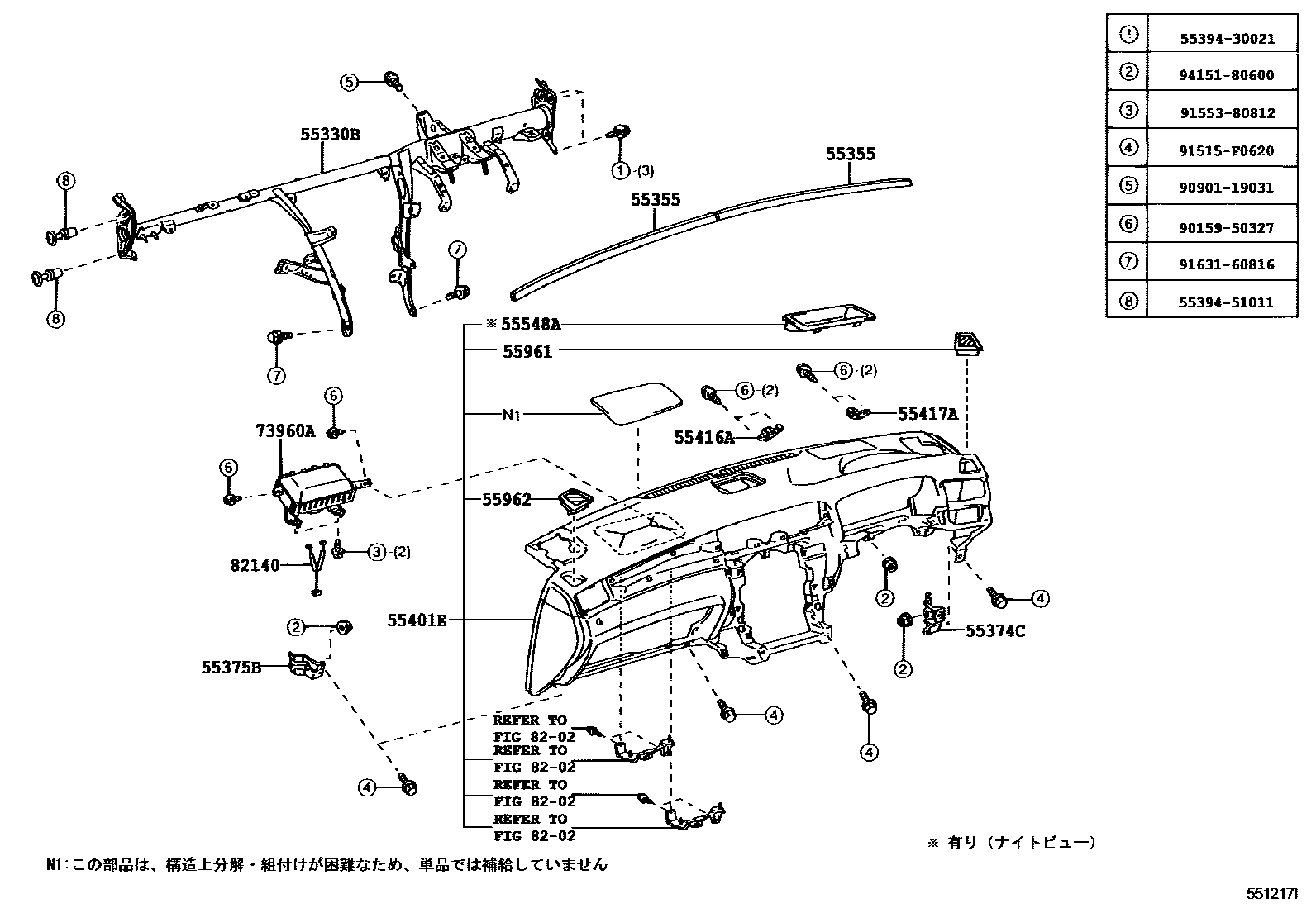

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1���������� 0005 1��������� 0006 1����� 0007 1����������

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30310iUZS186200312-200812

main55330-30320iUZS187200312-200812

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30060iGRS18#200312-200802

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-30250iUZS18#200312-200802

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-30140iUZS18#200312-200802

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30660-C1iGRS18#200312-200509

BLACK & GRAY,TRIM1#

sub55401-30661

main55401-30660-C2iGRS180,181,182..ATH200312-200802

BLACK,TRIM2#

sub55401-30661

main55401-30660-C3iGRS18#200509-200802

BLACK,TRIM1#

sub55401-30661

main55401-30660-E1iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200802

ORCHID BROWN,TRIM0#

sub55401-30661

main55401-30690-C1iGRS183200312-200509

sub55401-30691

main55401-30690-C1iGRS182..ROYG200312-200509

sub55401-30691

main55401-30690-C2iGRS184200509-200802

sub55401-30691

main55401-30690-C2iUZS18#200406-200808

BLACK,TRIM2#

sub55401-30691

main55401-30690-C3iGRS184200509-200802

sub55401-30691

main55401-30690-C3iGRS182,183200509-200802

sub55401-30691

main55401-30690-E1iGRS182,183200509-200802

sub55401-30691

main55401-30690-E1iGRS182..ROYG200312-200509

sub55401-30691

main55401-30690-E1iUZS18#200406-200808

ORCHID BROWN,TRIM0#

sub55401-30691

main55401-30690-E1iGRS183200312-200509

sub55401-30691

main55401-30691-C2iUZS18#200809

BLACK,TRIM2#

main55401-30691-E1iUZS18#200809

ORCHID BROWN,TRIM0#

55416ARETAINER, METER HOOD, NO.1

main55416-30150iUZS18#200312-200802

55417ARETAINER, METER HOOD, NO.2

main55417-30070iGRS18#200312-200802

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-30150-C1iGRS183200312-200509

main55548-30150-C1iGRS183200312-200509

main55548-30150-C1iUZS18#200406-200606

BLACK,TRIM2#

main55548-30150-C1iGRS184200509-200802

main55548-30150-C1iGRS184200509-200802

main55548-30150-E1iGRS183200312-200509

main55548-30150-E1iGRS182,183200509-200802

main55548-30150-E1iUZS18#200406-200606

ORCHID BROWN,TRIM0#

main55548-30150-E1iGRS183200312-200509

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30140-C0iGRS18#..ROY,ROYEX,ROYG200312-200802

BLACK,TRIM1#,2#

main55961-30140-C0iGRS18#..ROY,ROYEX,ROYG200312-200802

BLACK,TRIM1#

main55961-30140-C0iUZS18#200406-200606

BLACK,TRIM2#

main55961-30140-E0iUZS18#200312-200802

ORCHID BROWN,TRIM0#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30120-C0iGRS180,181,184..ATH200312-200802

BLACK,TRIM1#

main55962-30120-C0iGRS18#..ROY,ROYEX,ROYG200312-200802

BLACK,TRIM1#,2#

main55962-30120-C0iUZS18#200406-200606

BLACK,TRIM2#

main55962-30120-E0iUZS18#200312-200802

ORCHID BROWN,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30070iGRS18#200312-200802

8202

82140WIRE ASSY, INSTRUMENT PANEL

main82140-30020iUZS18#200312-200802

5539430021BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-30021

5539451011BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-51011

9015950327

main90159-50327

9090119031

main90901-19031

91515F0620

main91515-F0620

9155380812

main91553-80812

9163160816

main91631-60816

9415180600

main94151-80600

21 parts on this diagram · 7 diagrams in section
