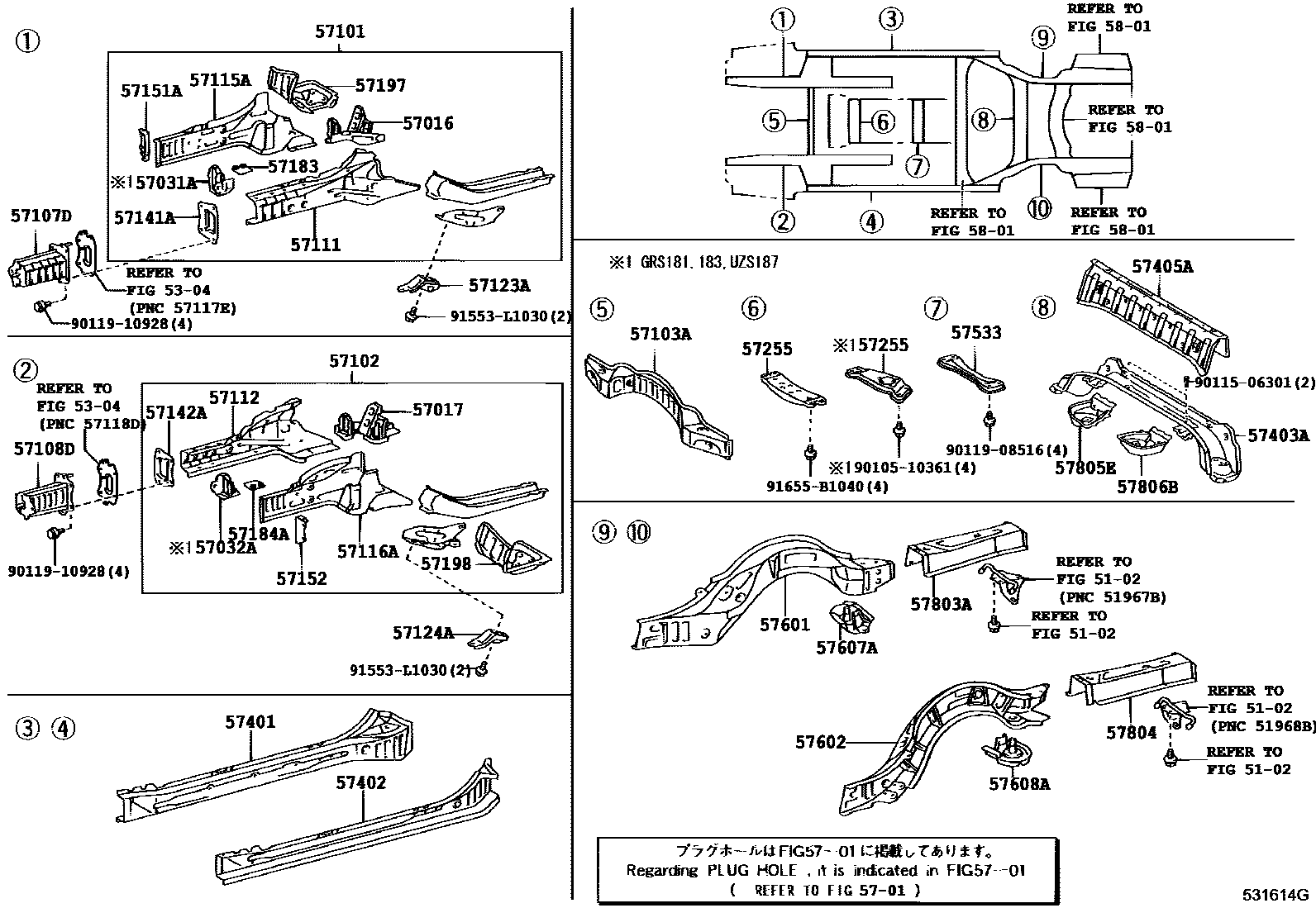

FLOOR SIDE MEMBER

5102

5304

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iUZS186200312-200606

main57016-30050iGRS181,183200312-200409

main57016-30051iUZS187200606

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iGRS180,182200503-200504

main57017-30050iGRS181,183200312-200409

main57017-30051iGRS181,183200505-200509

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-30010iGRS181,183200503-200509

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-30010iGRS181,183200312-200409

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30160iUZS186200312-200408

sub90333-30002

main57101-30162iUZS186200408-200503

main57101-30163iUZS186200509-200606

main57101-30170iUZS187200312-200408

sub90333-30002

main57101-30172iUZS187200408-200412

main57101-30173iGRS181,183200411-200503

main57101-30174iUZS187200509-200606

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30140iUZS186200312-200408

main57102-30141iGRS180,182200410-200503

main57102-30142iGRS180,182200503-200504

main57102-30143iGRS180,182,184200509-200802

main57102-30150iUZS187200312-200408

main57102-30151iUZS187200408-200412

main57102-30152iGRS181,183200411-200503

main57102-30153iGRS181,183200503-200504

main57102-30154iUZS187200606

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30020iGRS18#,UZS18#200312-200412

main57103-30021iGRS18#,UZS18#200412-200509

sub57103-30022

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-30060iGRS18#200312-200405

main57107-30061iGRS18#,UZS18#200406-200509

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-30080iGRS18#,UZS18#200312-200509

sub57108-30081

57111MEMBER, FRONT SIDE, RH

main57111-30080iGRS180,182200312-200410

sub90333-30002

main57111-30082iUZS186200408-200606

main57111-30090iGRS181,183200312-200410

sub90333-30002

main57111-30092iGRS181,183200509-200802

57112MEMBER, FRONT SIDE, LH

main57112-30080iUZS186200312-200408

main57112-30081iUZS186200408-200503

main57112-30082iGRS180,182,184200509-200802

main57112-30100iGRS181,183,UZS187200312-200503

main57112-30101iGRS181,183200503-200504

main57112-30102iUZS187200503-200606

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iGRS18#200312-200409

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iGRS18#200503-200504

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30010iGRS180,182,UZS186200312-200509

main57305-30020iUZS187200606

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30010iGRS180,182,UZS186200312-200509

main57306-30020iGRS181,183200509-200802

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iGRS18#200509-200802

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGRS180,182200410-200502

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGRS18#200312-200409

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGRS18#200312-200409

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30020iGRS18#200312-200409

main57183-30030iGRS18#,UZS18#200503-200509

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iGRS180,182200410-200503

57197BOX, TORQUE, FRONT RH

main57197-30040iGRS181,183200410-200411

57198BOX, TORQUE, FRONT LH

main57198-30040iUZS18#200312-200408

main57198-30041iGRS18#200509-200802

57255MEMBER, ENGINE REAR MOUNTING

main57209-30030iUZS187200606

main57255-30080iGRS180,182200312-200509

main57255-30130iUZS186200606

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-30100iGRS18#,UZS18#200312-200410

main57401-30101iGRS18#,UZS18#200410-200509

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-30090iGRS18#,UZS18#200312-200410

main57402-30091iUZS18#200606

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57430-30010iGRS18#,UZS18#200312-200408

sub90950-01948

main57430-30011iUZS18#200509-200606

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-30040iGRS18#,UZS18#200312-200411

main57405-30041iGRS18#,UZS18#200411-200412

main57405-30050iGRS18#,UZS18#200505-200509

57533BRACE, FRONT FLOOR, CENTER

main57533-30030iUZS186200606-200801

main57533-30040iGRS181,183200509-200802

main57533-30050iUZS186200802

main57533-30060iUZS187200802

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30915iGRS18#200312-200406

main57601-30917iUZS18#200606

sub57601-30922

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30926iGRS18#200312-200406

main57602-30928iGRS18#,UZS18#200406-200509

sub57602-30934

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-30070iGRS18#200312-200404

main57607-53020iGRS18#200509-200802

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-30080iUZS18#200312-200407

main57608-53030iGRS18#200507-200509

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30020iGRS18#200312-200404

main57803-30021iGRS18#,UZS18#200408-200509

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30030iGRS18#200405-200407

main57804-30031iUZS18#200509-200606

main57804-30032iGRS18#200701-200802

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-30060iUZS18#200509-200606

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30050iGRS18#,UZS18#200312-200407

5801

9010510361

main90105-10361

9011506301

main90115-06301

9011908516

main90119-08516

9011910928

main90119-10928

91553L1030

main91553-L1030

91655B1040

main91655-B1040

47 parts on this diagram · 1 diagram in section
