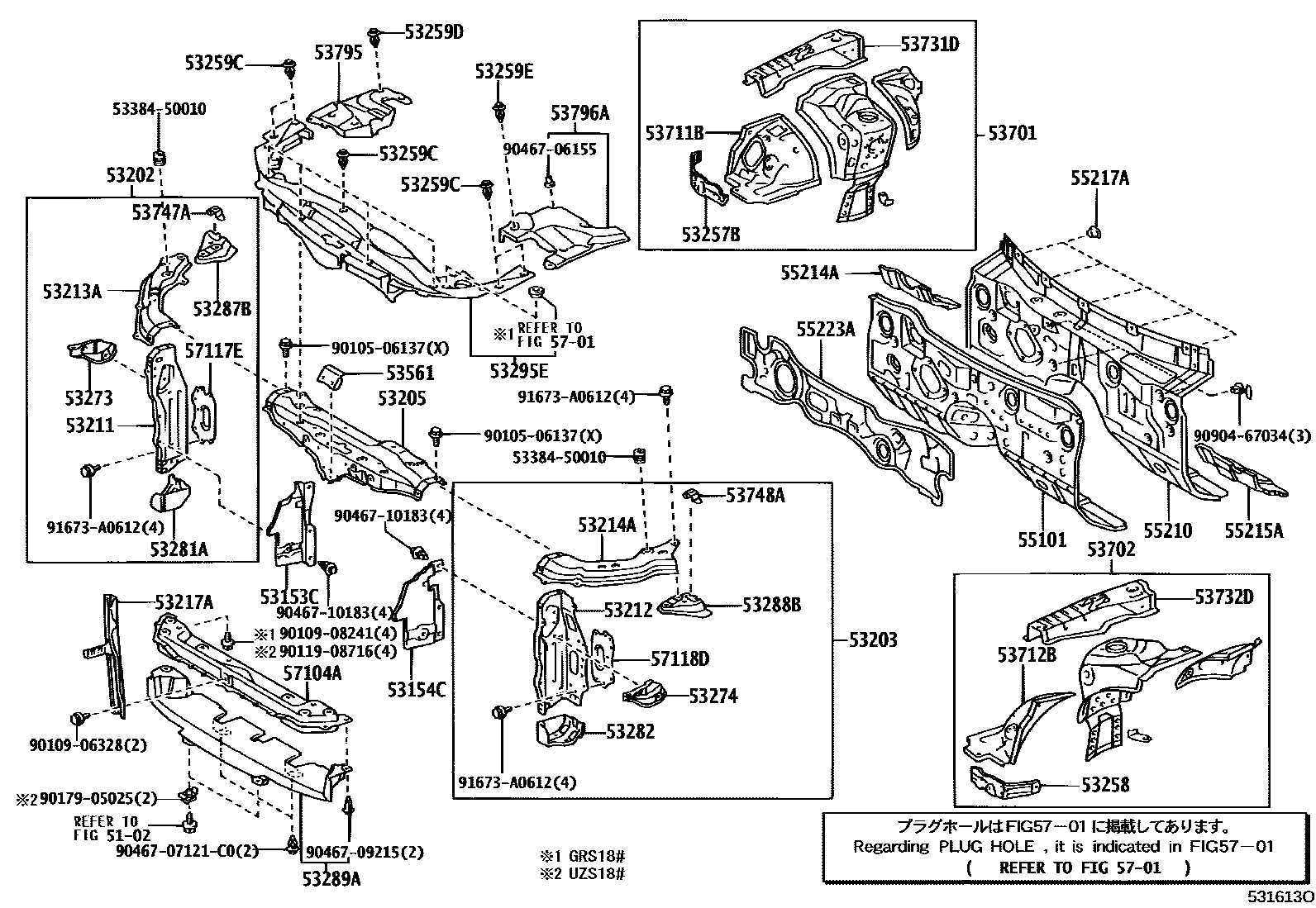

FRONT FENDER APRON & DASH PANEL
5102
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53259DCLIP, RADIATOR SUPPORT TO FRAME SEAL, NO.2
53259ECLIP, RADIATOR SUPPORT TO FRAME SEAL, NO.3
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53281AREINFORCEMENT, FRONT BODY MOUNTING, RH
53282REINFORCEMENT, FRONT BODY MOUNTING, LH
53561GUIDE, HOOD AUXILIARY CATCH HOOK
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
sub53712-24060
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53795COVER, HEADLAMP WIRE HARNESS HOLE, RH
53796ACOVER, ENGINE ROOM SIDE, LH
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55217ARETAINER, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57117ERETAINER, FRONT BUMPER ARM, RH
57118DRETAINER, FRONT BUMPER ARM, LH
5338450010BAR, HOOD SILENCER SUPPORT
main53384-50010
9010506137
main90105-06137
9010906328
main90109-06328
9010908241
main90109-08241
9011908716
main90119-08716
9017905025
main90179-05025
9046706155
main90467-06155
9046707121C0
main90467-07121C0
9046709215
main90467-09215
9046710183
main90467-10183
9090467034
main90904-67034
91673A0612
main91673-A0612
57 parts on this diagram · 1 diagram in section
