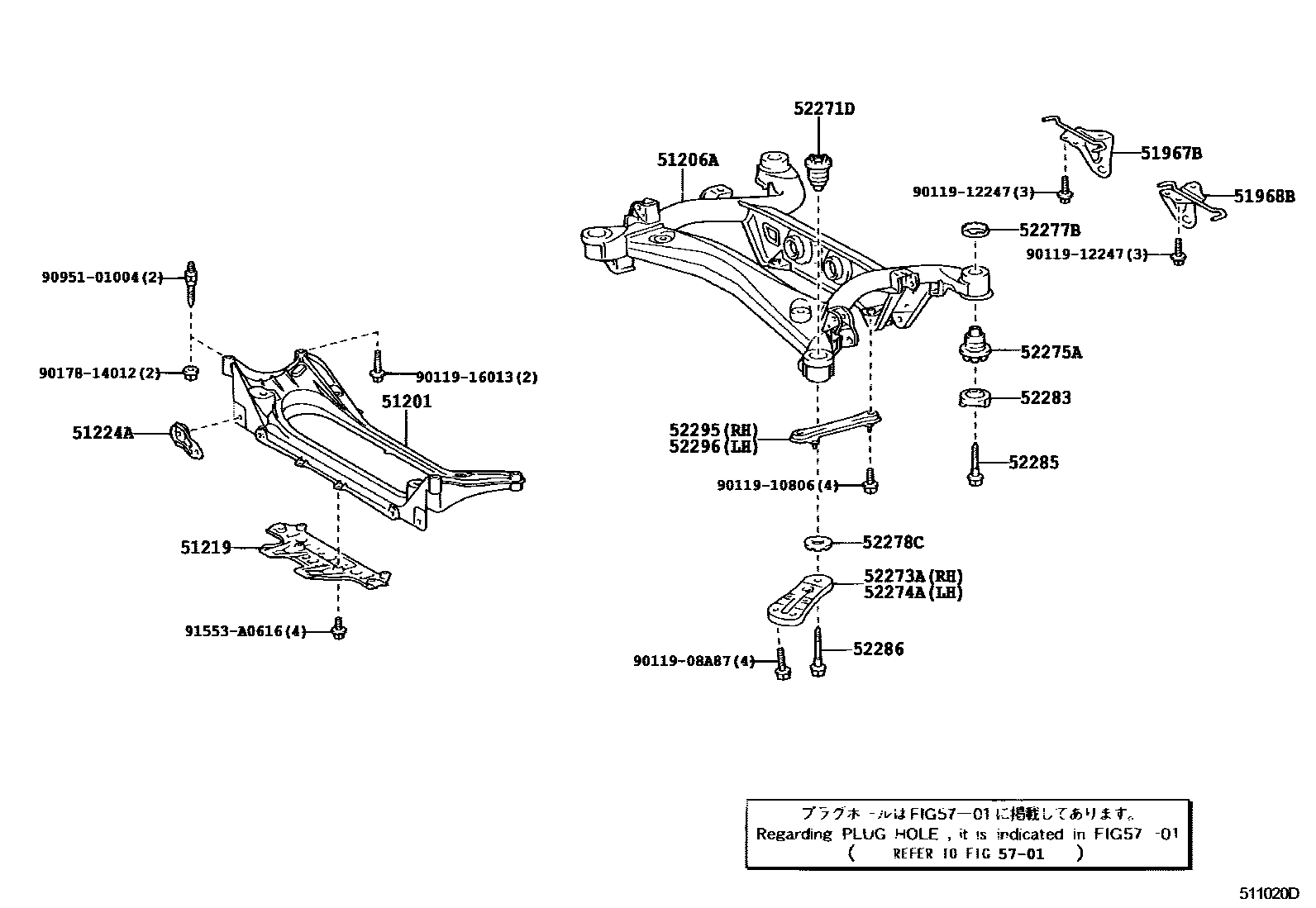

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1���� ���- 0004 1���� ���� 0005 1���� ���� 0006 1���� ���- 0007 1���� ���� 0008 1���� ����

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iGRS180,182200312-200802

sub51201-30140

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30080iGRS180,181,182,183200312-200802

sub51206-30081

main51206-30090iUZS18#200406-200509

sub51206-30100

main51206-30100iUZS18#200509-200812

sub51206-30101

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30030iGRS180,182,UZS186200312-200504

sub51219-30031

main51219-30031iUZS186200505-200802

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030iGRS180,182200312-200802

51967BHOOK, TRANSPORT, REAR RH

main51967-30050iGRS180,181..5FC;GRS182,183,UZS18#200312-200812

51968BHOOK, TRANSPORT, REAR LH

main51968-30060iGRS18#200312-200812

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30100iGRS18#..ROY,ROYEX,ROYG200312-200708

sub52271-30120

main52271-30110iGRS180,181,184..ATH200312-200802

main52271-30120iGRS180,181,182,183..ROY,ROYEX,ROYG200709-200802

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-30080iGRS180,181,182..ATH200312-200802

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-30080iGRS180,181,182..ATH200312-200802

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30110iGRS18#..ROY,ROYEX,ROYG200312-200802

main52275-30120iGRS180,181,182..ATH200312-200802

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060iUZS18#200312-200802

sub52277-30070

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050iGRS180,181,182..ATH200312-200802

sub52278-30080

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060iGRS180,181,182..ATH200312-200802

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iGRS180,181,182..ATH200312-200802

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010iGRS180,181,182..ATH200312-200508

main52286-53020iGRS180,181,182..ATH200508-200802

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iGRS180,181,182..ATH200312-200802

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iGRS180,181,182..ATH200312-200802

5701

9011908A87

main90119-08A87

9011910806

main90119-10806

9011912247

main90119-12247

9011916013

main90119-16013

9017814012

main90178-14012

9095101004

main90951-01004

91553A0616

main91553-A0616

25 parts on this diagram · 8 diagrams in section
