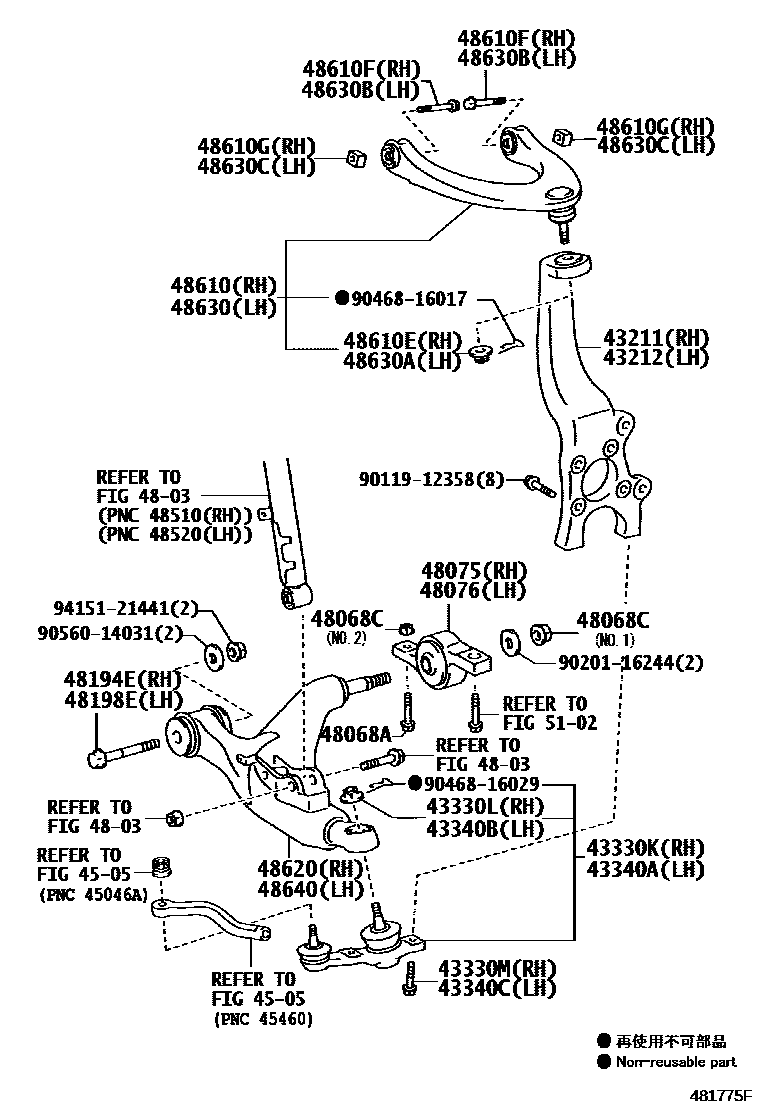

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-30010iGRS180..5FC;GRS182,UZS186200312-200812

main43201-30021iUZS187200312-200812

43212KNUCKLE, STEERING, LH

main43202-30020iGRS180..5FC;GRS182,UZS186200312-200812

main43202-30031iUZS187200312-200812

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39625iGRS180,182200312-200802

main43330-39635iGRS181,183200312-200802

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iGRS180,182,184200312-200802

main90171-14014iGRS181,183200312-200802

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main91552-L1455iGRS180,182200312-200802

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39635iGRS181,183200312-200802

main43340-39505iGRS180,182,184200312-200802

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iGRS180,182200312-200802

main90171-14014iUZS187200312-200802

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main91552-L1455iUZS186200312-200802

4505

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main91552-L1265iGRS180,182200312-200802

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main94151-21240iGRS180,182200312-200802

main94151-21601iUZS187200312-200802

48075BRACKET SUB-ASSY, LWR ARM, NO,1

main48075-30020iUZS18#200312-200609

main48075-30020iGRS18#200312-200509

main48075-30030iGRS18#200606-200802

48076BRACKET SUB-ASSY, LWR ARM, NO.2

main48076-30020iGRS18#200312-200509

main48076-30020iUZS18#200312-200609

main48076-30030iUZS18#200606-200802

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main90105-14166iUZS186200312-200802

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main90105-14166iGRS180,182,184200312-200802

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39125iGRS180,182200312-200802

main48610-39135iUZS187200312-200802

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12012iUZS18#200312-200802

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main91672-G1070iGRS18#200312-200802

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10012iGRS18#200312-200802

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-30290iUZS186200312-200802

main48620-30300iGRS181,183200312-200802

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39135iGRS181,183200312-200802

main48630-39085iGRS180,182200312-200802

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12012iUZS18#200312-200802

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main91672-G1070iGRS18#200312-200802

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10012iGRS18#200312-200802

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-30290iGRS180,182200312-200802

main48640-30300iUZS187200312-200802

5102

9011912358

main90119-12358

9020116244

main90201-16244

9046816017

main90468-16017

9046816029

main90468-16029

9056014031

main90560-14031

9415121441

main94151-21441

33 parts on this diagram · 2 diagrams in section
