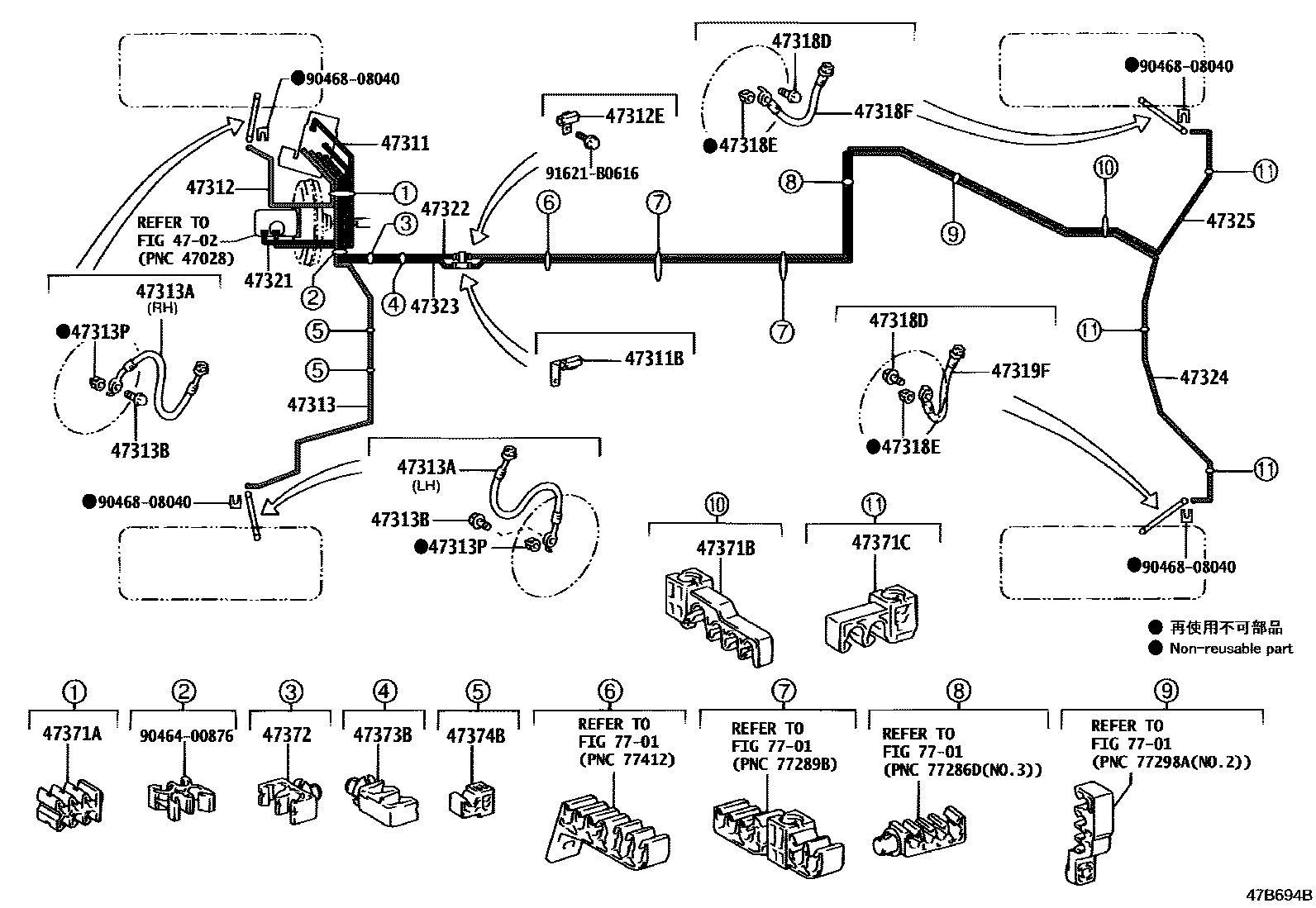

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-30680iGRS18#200312-200802

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10250iGRS18#200312-200802

47312TUBE, FRONT BRAKE, NO.2

main47312-30560iGRS180,182200312-200802

main47312-30570iGRS181,183200312-200802

main47312-30580iUZS186200406-200606

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10144iUZS18#200312-200802

47313TUBE, FRONT BRAKE, NO.3

main47313-30510iGRS180,182,184200312-200802

main47313-30520iGRS181,183200312-200802

main47313-30530iUZS186200406-200704

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D89iUZS186200312-200802

main90947-02E02iGRS181,183200312-200802

main90947-02E03iUZS187200312-200802

main90947-02E06iGRS184200509-200701

sub90947-02F66

main90947-02F66iGRS184200701-200802

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iGRS18#200312-200802

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iUZS18#200312-200802

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iGRS18#200312-200802

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iGRS18#200312-200802

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02D88iGRS18#200312-200701

sub90947-02F67

main90947-02F67iGRS18#200701-200802

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02D88iUZS18#200312-200701

sub90947-02F67

main90947-02F67iUZS18#200701-200802

47321TUBE, REAR BRAKE, NO.1

main47321-30390iUZS187200312-200802

47322TUBE, REAR BRAKE, NO.2

main47322-30330iUZS187200312-200802

main47322-30340iUZS186200406-200606

47323TUBE, REAR BRAKE, NO.3

main47323-30290iGRS18#200312-200802

main47323-30300iUZS186200406-200606

sub47323-30350

47324TUBE, REAR BRAKE, NO.4

main47324-30310iGRS18#200312-200802

47325TUBE, REAR BRAKE, NO.5

main47325-30090iGRS18#200312-200802

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01C51iGRS18#200312-200802

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D09iGRS18#200312-200812

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D11iGRS180,181..5FC;GRS182,183,UZS18#200312-200812

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D12iUZS18#200312-200802

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D13iGRS18#200312-200802

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D10iUZS18#200312-200704

sub90949-01D20

main90949-01D20iUZS18#200705-200802

7701

9046400876

main90464-00876

9046808040

main90468-08040

91621B0616

main91621-B0616

28 parts on this diagram · 5 diagrams in section
