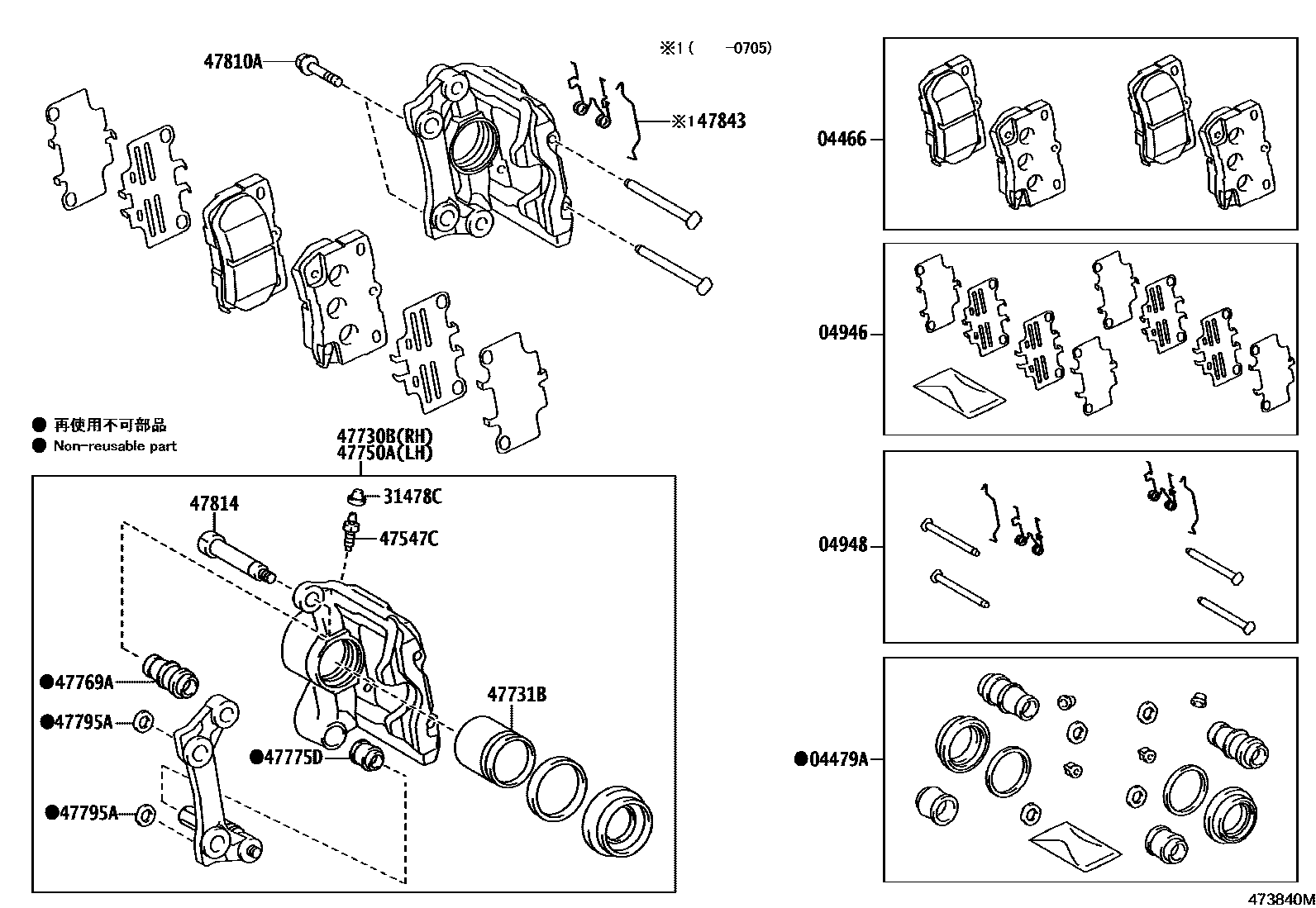

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30210iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

main04466-30230iGRS18#200509-200802

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30340iGRS18#..ROY,ROYEX,ROYG200312-200511

sub04479-30550

main04479-30360iGRS180,181,184..ATH200312-200511

sub04479-30540

main04479-30440iUZS18#200511-200707

sub04479-30520

main04479-30450iGRS180,181,182,183..ROY,ROYEX,ROYG200511-200709

sub04479-30510

main04479-30510iGRS180,181,182,183..ROY,ROYEX,ROYG200709-200802

sub04479-53070

main04479-30520iGRS180,181,184..ATH200707-200802

sub04479-30570

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30110iGRS18#200312-200802

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iUZS18#200511-200705

sub04948-30210

main04948-30090iGRS18#..ROY,ROYEX,ROYG200312-200511

sub04948-30140

main04948-30100iGRS180,181,184..ATH200312-200511

sub04948-22090

main04948-30140iGRS180,181,182,183..ROY,ROYEX,ROYG200511-200705

sub04948-30220

main04948-30210iUZS18#200705-200802

main04948-30220iGRS180,181,182,183..ROY,ROYEX,ROYG200705-200802

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iUZS18#200312-200802

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGRS18#200312-200802

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-30300iGRS18#..ROY,ROYEX,ROYG200312-200511

sub47830-30301

main47830-30301iGRS180,181,182,183..ROY,ROYEX,ROYG200511-200802

main47830-30310iGRS180,181,184..ATH200312-200511

sub47830-30311

main47830-30311iGRS180,181,184..ATH200511-200802

47731BPISTON, REAR DISC BRAKE

main47831-30300iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200802

main47831-30310iGRS180,181,184..ATH200312-200802

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30300iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200511

sub47850-30301

main47850-30301iGRS180,181,182,183..ROY,ROYEX,ROYG200511-200802

main47850-30310iGRS180,181,184..ATH200312-200511

sub47850-30311

main47850-30311iUZS18#200511-200802

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iUZS18#200312-200802

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30341iGRS18#200312-200812

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRS18#200312-200802

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRS18#200312-200802

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRS18#200312-200802

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300iUZS18#200312-200705

15 parts on this diagram · 1 diagram in section
