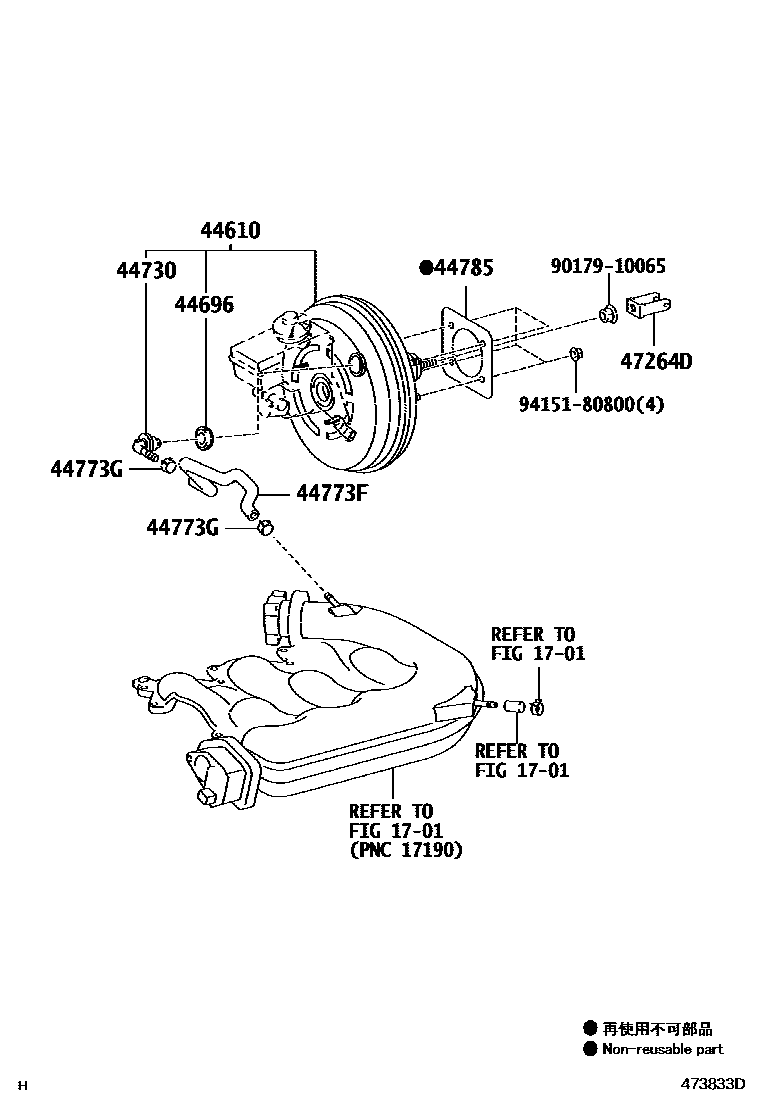

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-22A20iGRS180,181,182,183200509-200802

sub44610-22A21

main44610-30A00iGRS18#200312-200509

sub44610-30A01

main44610-30A10iUZS187200406-200812

sub44610-30A11

main44610-30A80iGRS184200509-200802

sub44610-30A81

44696GROMMET, CHECK VALVE

main90480-24439iUZS187200312-200812

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iUZS187200312-200812

main44730-22150iGRS18#200509-200802

44773FHOSE, UNION TO CHECK VALVE

main44773-22540iGRS180,181,182,183200509-200802

main44773-30550iGRS18#200312-200509

main44773-30560iUZS187200406-200606

main44773-30580iGRS184200509-200802

main44773-30600iGRS184200509-200802

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iUZS187200406-200606

main90467-16014iGRS18#200312-200802

main96133-41500iUZS187200406-200606

44785GASKET, BRAKE BOOSTER

main44785-47010iGRS18#200312-200802

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGRS18#200312-200802

9017910065

main90179-10065

9415180800

main94151-80800

10 parts on this diagram · 4 diagrams in section
