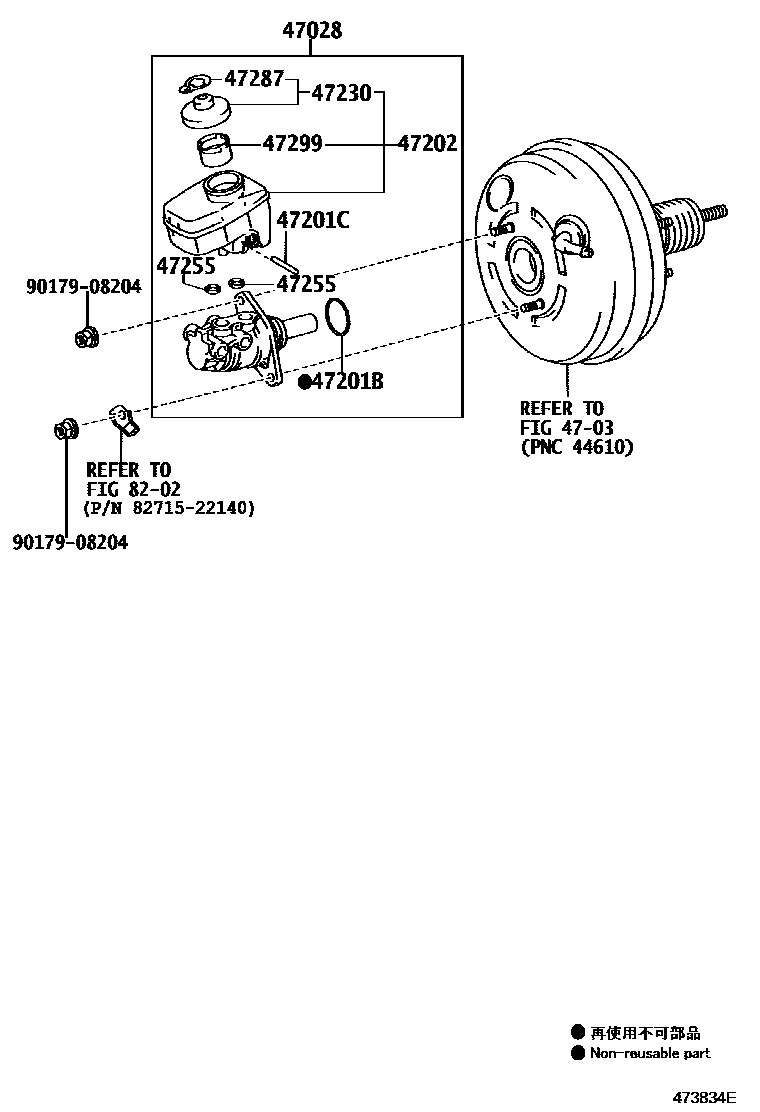

BRAKE MASTER CYLINDER

0001 1 0002 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-30010iGRS180,181..5FC;GRS182,183,UZS187200312-200812

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30760iUZS186200406-200606

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGRS18#200312-200802

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iUZS187200312-200802

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30170iGRS18#200312-200802

main47220-30190iUZS186200406-200606

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGRS18#200312-200802

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iUZS186200406-200606

main90029-48001iUZS187200312-200802

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iUZS187200312-200802

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRS18#200312-200802

main47299-30190iUZS186200406-200606

8202

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
