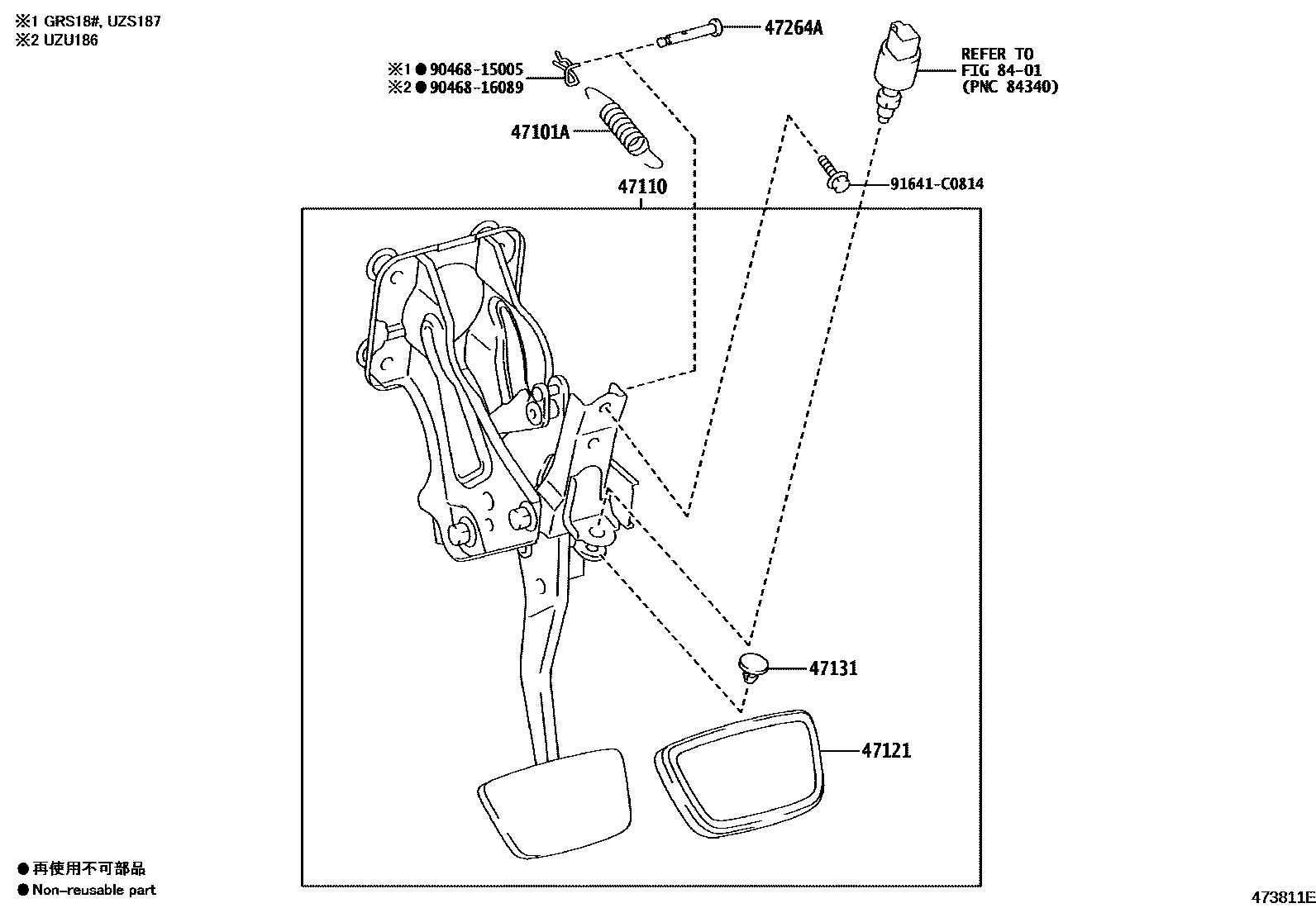

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iUZS186200406-200606

main90507-13009iGRS18#200312-200802

main90905-07007iUZS186200606

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30400iGRS180,181..5FC;GRS182,183,UZS187200312-200812

sub47110-30401

main47110-30410iUZS186200406-200812

sub47110-30411

47121PAD, BRAKE PEDAL

main47121-50020iGRS18#200312-200802

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGRS180,181..5FC;GRS182,183,UZS18#200312-200802

47264APIN(FOR PUSH ROD)

main90249-06180iUZS187200312-200802

main90249-10199iUZS186200406-200606

8401

9046815005

main90468-15005

9046816089

main90468-16089

91641C0814

main91641-C0814

9 parts on this diagram · 1 diagram in section
