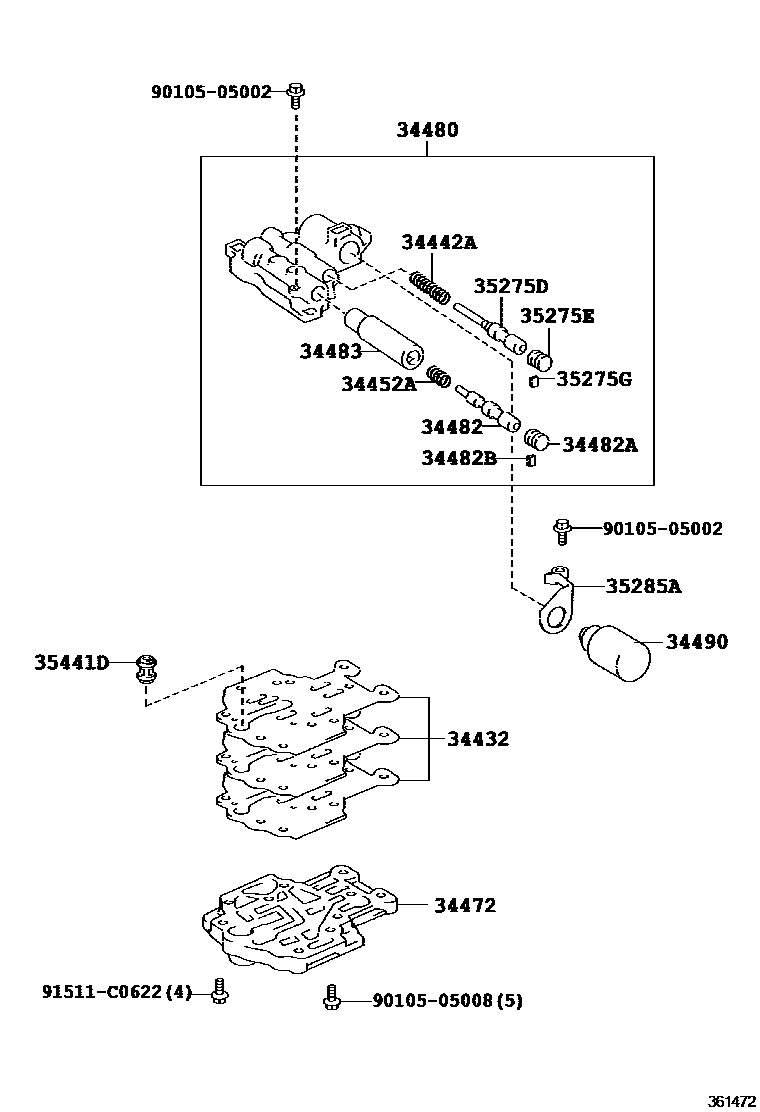

TRANSFER VALVE BODY & VALVE LEVER

34432PLATE, TRANSFER VALVE BODY, UPPER

main34403-30010iUZS187200406-200606

34442ASPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE)

main90501-12143iGRS181,183200312-200509

34452ASPRING (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)

main90501-06079iGRS181,183200312-200509

34472COVER, TRANSFER VALVE BODY

main34472-30010iGRS181,183200312-200509

34480BODY ASSY, TRANSFER UPPER VALVE

main34480-30010iGRS181,183200312-200509

34482VALVE, CENTER DIFFERENTIAL CLUTCH CONTROL

main34482-30010iGRS181,183200312-200509

34482ASPRING(FOR CENTER DIFFERENTIAL CONTROL VALVE)

main90339-04003iGRS181,183200312-200509

34482BSEAT(FOR CENTER DIFFERENTIAL CLUTCH CONTROL VALVE PLUG)

main35493-30030iGRS181,183200509

34483SLEEVE, CENTER DIFFERENTIAL CLUTCH CONTROL VALVE

main34483-30010iUZS187200406-200606

34490SOLENOID ASSY, TRANSFER CONTROL

main34490-30020iGRS181,183200312-200509

35275DVALVE, TRANSFER SOLENOID MODULATOR

main35275-30010iGRS181,183200312-200509

35275EPLUG (FOR TRANSFER SOLENOID MODULATOR VALVE)

main90339-04030iGRS181,183200509

35275GSEAT (FOR TRANSFER SOLENOID MODULATOR VALVE PLUG)

main35493-30110iUZS187200406-200606

35285APLATE, SOLENOID LOCK

main35285-30050iGRS181,183200509

35441DSTRAINER, CENTER DIFFERENTIAL LOCK CLUTCH CONTROL OIL

main35441-12020iGRS181,183200408-200509

main35441-50030iGRS183,UZS187200312-200408

9010505002

main90105-05002

9010505008

main90105-05008

91511C0622

main91511-C0622

18 parts on this diagram · 1 diagram in section
