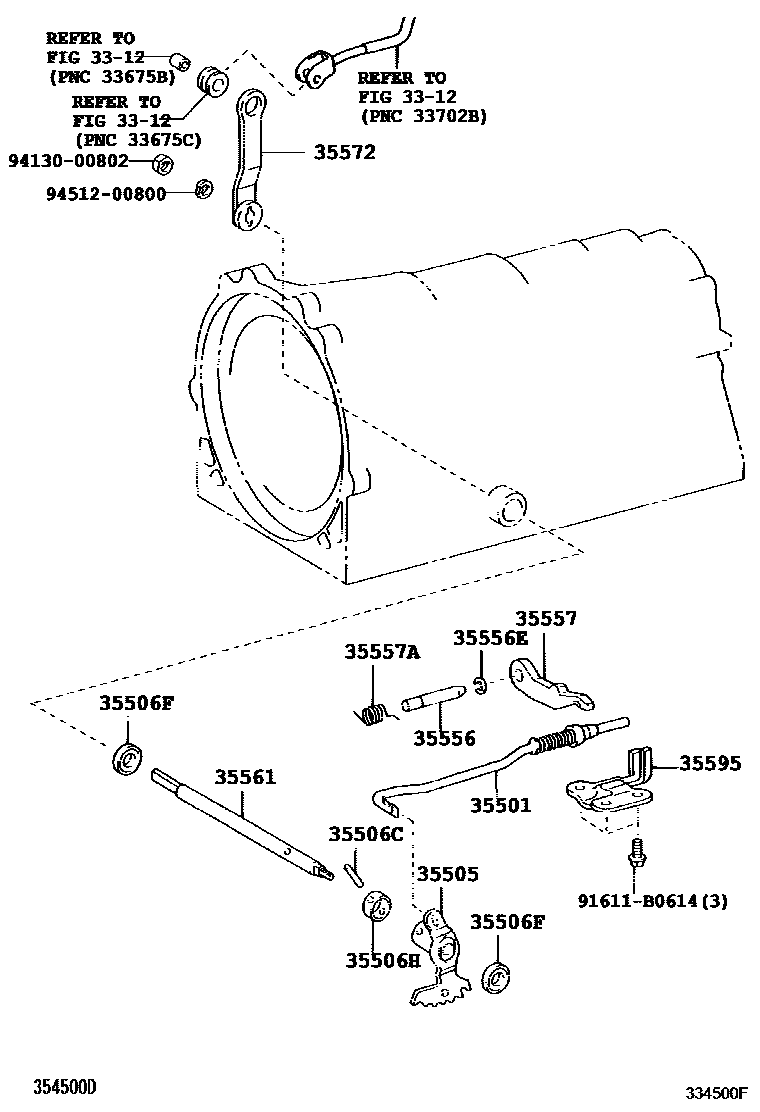

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A750E,A760E,A761E,A960E 0002 1A750H,A760H,A761H

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-22030iGRS180,182200509-200802

main35501-50010iUZS18#200312-200802

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50030iGRS182,183200312-200509

sub35505-53030

main35505-53030iUZS18#200508-200802

main35505-53040iGRS180,182200509-200802

main35505-60050iGRS180,181200312-200802

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRS18#200312-200802

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGRS18#200312-200802

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGRS18#200312-200802

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGRS18#200312-200802

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iUZS18#200312-200802

35557PAWL, PARKING LOCK

main35590-50010iGRS18#200312-200802

sub35590-50030

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03130iUZS18#200312-200802

main90949-03137iGRS180,182200509-200802

35561SHAFT, MANUAL VALVE LEVER

main35561-50020iUZS186200312-200812

main35561-60030iGRS181,183200312-200812

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iGRS180..5FC;GRS182,UZS186200312-200812

35595BRACKET, PARKING LOCK PAWL

main35595-50010iGRS18#200312-200802

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
