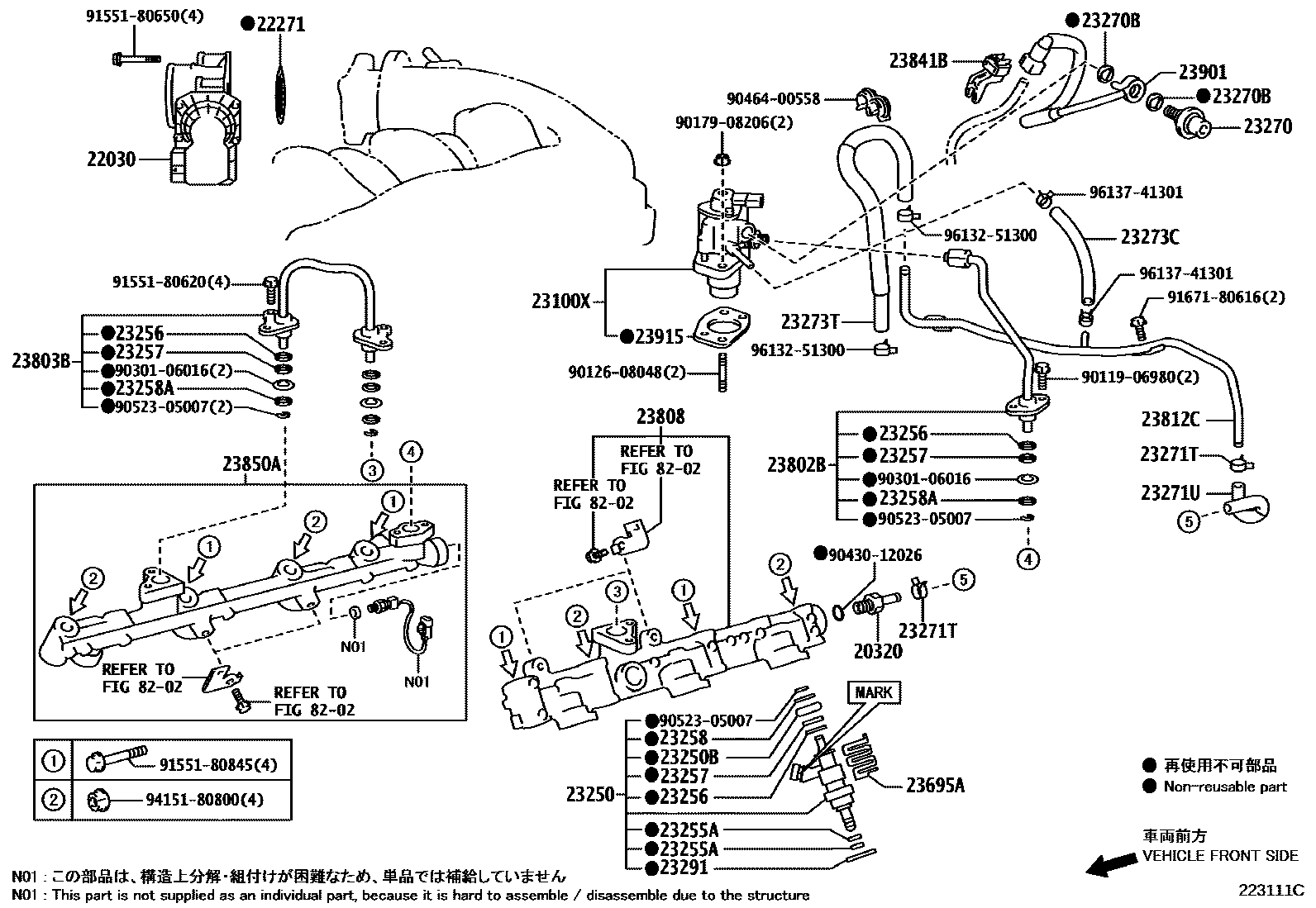

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

20320VALVE ASSY, FUEL RELIEF

main20320-31010i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i3GRFSE,4GRFSE..GRS18#200312-200509

main22030-31040i2GRFSE..GRS184200509-200802

22271GASKET, THROTTLE BODY

main22271-31020i2GRFSE..GRS184200509-200802

main22271-31030i3GRFSE,4GRFSE..GRS18#200312-200509

main22271-50042i3UZFE..UZS18#200406-200606

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39615i3GRFSE,4GRFSE..GRS18#200312-200509

main23100-39617i2GRFSE,3GRFSE,4GRFSE..GRS18#200601-200802

sub23100-39618

23250INJECTOR ASSY, FUEL

main23209-31070×6i2GRFSE..GRS184200509-200802

main23209-39055-A0×6i3GRFSE,4GRFSE..GRS18#200312-200505

MARK BLACK

main23209-39055-B0×6i3GRFSE,4GRFSE..GRS18#200312-200505

MARK BROWN

main23209-39056-A0×6i3GRFSE,4GRFSE..GRS18#200505-200506

MARK BLACK

main23209-39056-B0×6i3GRFSE,4GRFSE..GRS18#200505-200506

MARK BROWN

main23209-39057-A0×6i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

MARK BLACK

main23209-39057-B0×6i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

MARK BROWN

main23209-39105-A0×6i2GRFSE..GRS184200509-200608

main23209-39105-B0×6i2GRFSE..GRS184200509-200608

main23209-39155-A0×6i2GRFSE..GRS184200608-200802

main23209-39155-B0×6i2GRFSE..GRS184200608-200802

main23209-39155-C0×6i2GRFSE..GRS184200608-200802

main23209-39155-D0×6i2GRFSE..GRS184200608-200802

main23209-50030×4i3UZFE..UZS18#200406-200606

main23209-50050×4i3UZFE..UZS18#200406-200606

23250BRING, O(FOR FUEL INJECTOR)

main90301-06013×6i3GRFSE,4GRFSE..GRS18#200312-200506

main90301-06017×6i2GRFSE..GRS184200509-200802

main90301-06018×6i2GRFSE..GRS184200509-200802

main90301-07024×16i3UZFE..UZS18#200406-200502

main90301-07037×8i3UZFE..UZS18#200502-200606

23255ASEAL, FUEL INJECTOR

main23255-31010×12i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010×9i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010×9i3GRFSE,4GRFSE..GRS18#200312-200509

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28010×6i3GRFSE,4GRFSE..GRS18#200312-200505

main23258-28011×6i3GRFSE,4GRFSE..GRS18#200505-200509

23258ARING, FUEL PIPE, NO.3

main23258-28010×3i3GRFSE,4GRFSE..GRS18#200312-200505

main23258-28011×3i3GRFSE,4GRFSE..GRS18#200505-200509

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i3GRFSE,4GRFSE..GRS18#200507-200509

sub23207-31021

main23270-28040i3GRFSE,4GRFSE..GRS18#200312-200507

sub23270-31050

main23270-50010×2i3UZFE..UZS18#200406-200606

sub23270-50011

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081×2i3UZFE..UZS18#200406-200606

main23279-74010×2i3GRFSE,4GRFSE..GRS18#200312-200509

main90430-12026×2i3UZFE..UZS18#200406-200606

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main96137-51501×2i3GRFSE,4GRFSE..GRS18#200312-200509

23271UHOSE, FUEL, NO.1

main23271-31040i3GRFSE,4GRFSE..GRS18#200312-200507

main23271-31060i3GRFSE,4GRFSE..GRS18#200507-200509

23273CHOSE, FUEL, NO.2

main23273-31010i3GRFSE,4GRFSE..GRS18#200312-200507

main23273-31050i3GRFSE,4GRFSE..GRS18#200507-200509

23273THOSE, FUEL, NO.3

main23273-31030i3GRFSE,4GRFSE..GRS18#200312-200411

main23273-31040i3GRFSE,4GRFSE..GRS18#200411-200509

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×8i3UZFE..UZS18#200606

main23291-31011×6i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i3GRFSE,4GRFSE..GRS18#200312-200509

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31040i3GRFSE,4GRFSE..GRS18#200312-200505

main23802-31041i3GRFSE,4GRFSE..GRS18#200505-200506

main23802-31042i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200611

main23802-31043i2GRFSE,3GRFSE,4GRFSE..GRS18#200611-200802

main23802-50080i3UZFE..UZS18#200406-200606

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-31010i3GRFSE,4GRFSE..GRS18#200312-200505

main23803-31011i3GRFSE,4GRFSE..GRS18#200505-200506

main23803-31012i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200611

main23803-31013i2GRFSE,3GRFSE,4GRFSE..GRS18#200611-200802

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-31010i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

main23808-31020i2GRFSE..GRS184200509-200802

sub23808-31070

main23808-50021i3UZFE..UZS18#200406-200606

23812CPIPE, FUEL, NO.2

main23812-31010i3GRFSE,4GRFSE..GRS18#200312-200502

main23812-31020i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

sub23812-31050

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050×2i2GRFSE..GRS184200705-200802

main23841-28010×2i2GRFSE..GRS184200509-200704

23850APIPE ASSY, FUEL DELIVERY W/SENSOR, RH

main23850-31010i2GRFSE..GRS184200509-200802

main23850-31020i3GRFSE,4GRFSE..GRS18#200312-200509

23901TUBE SUB-ASSY, FUEL

main23901-31010i3GRFSE,4GRFSE..GRS18#200312-200507

main23901-31011i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

23915INSULATOR, FUEL PUMP

main23915-46011i3GRFSE,4GRFSE..GRS18#200312-200509

8202

9011906980

main90119-06980

9012608048

main90126-08048

9017908206

main90179-08206

9030106016

main90301-06016

9043012026

main90430-12026

9046400558

main90464-00558

9052305007

main90523-05007

9155180620

main91551-80620

9155180650

main91551-80650

9155180845

main91551-80845

9167180616

main91671-80616

9415180800

main94151-80800

9613251300

main96132-51300

9613741301

main96137-41301

42 parts on this diagram · 3 diagrams in section
