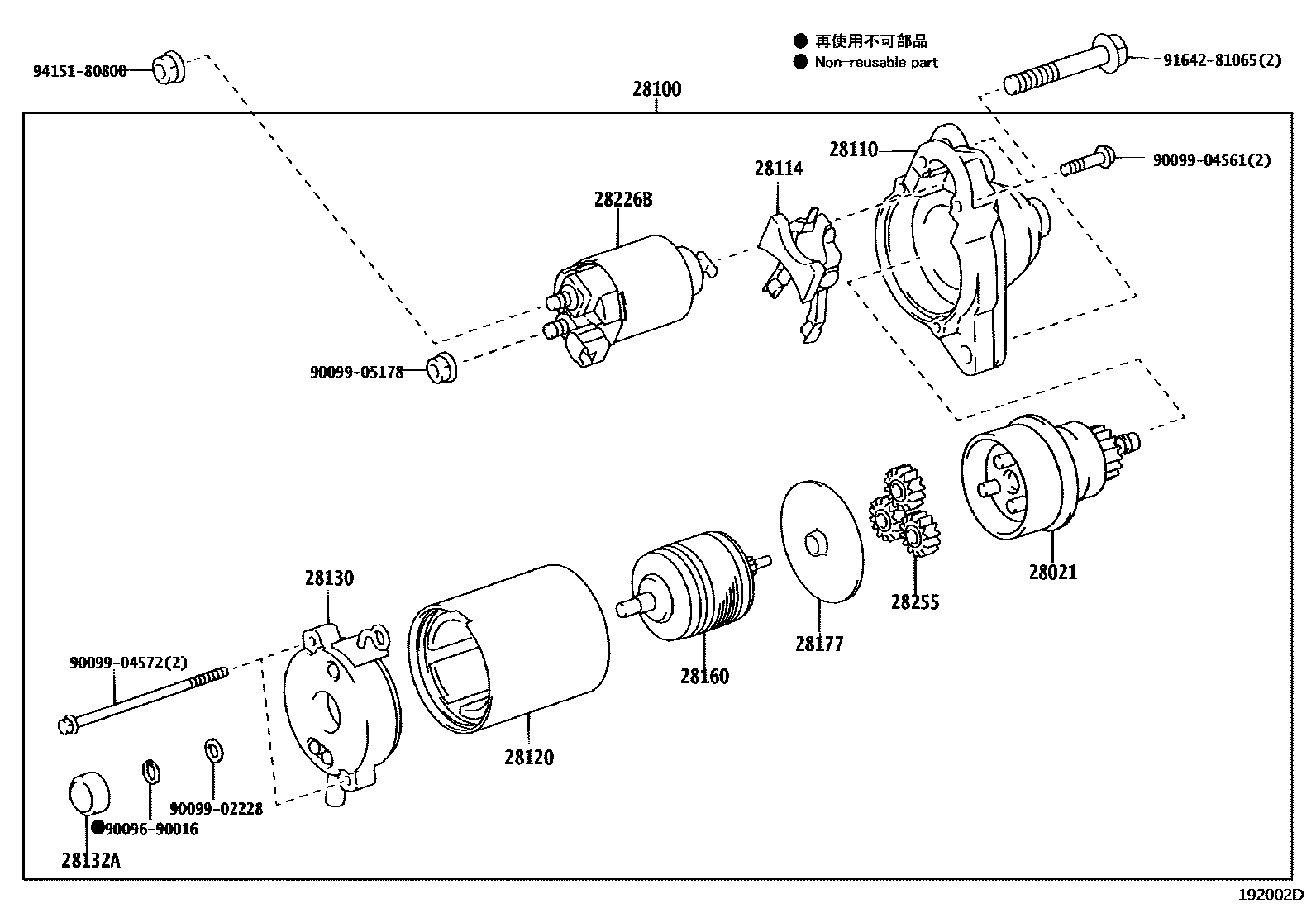

STARTER

0001 112V 1.3KW,1.7KW 0002 112V 1.4KW 0003 112V 1.4KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i3GRFSE,4GRFSE..GRS18#200312-200509

28100STARTER ASSY

main28100-50080i3UZFE..UZS18#200406-200606

sub28100-50081

main28100-31070supersedes 28100-31080i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

sub28100-31071

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i3GRFSE,4GRFSE..GRS18#200312-200509

main28110-50080i3UZFE..UZS18#200406-200606

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i3GRFSE,4GRFSE..GRS18#200312-200509

28120YOKE ASSY, STARTER

main28120-66040i3UZFE..UZS18#200606

main28120-28040supersedes 28120-28050i3GRFSE,4GRFSE..GRS18#200312-200509

sub28120-28060

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-50050i3UZFE..UZS18#200406-200606

main28130-31070supersedes 28130-31060i3GRFSE,4GRFSE..GRS18#200312-200509

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i3GRFSE,4GRFSE..GRS18#200312-200509

28160ARMATURE ASSY, STARTER

main28160-21060i3GRFSE,4GRFSE..GRS18#200312-200509

main28160-74070i3UZFE..UZS18#200406-200606

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i3GRFSE,4GRFSE..GRS18#200312-200509

28226STARTER KIT, BATTERY TERMINAL

main28226-50070i3UZFE..UZS18#200406-200606

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i3GRFSE,4GRFSE..GRS18#200312-200509

28255GEAR, PLANET

main28255-20020×3supersedes 28255-28040i3GRFSE,4GRFSE..GRS18#200312-200509

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9164281065

main91642-81065

9415180800

main94151-80800

19 parts on this diagram · 3 diagrams in section
