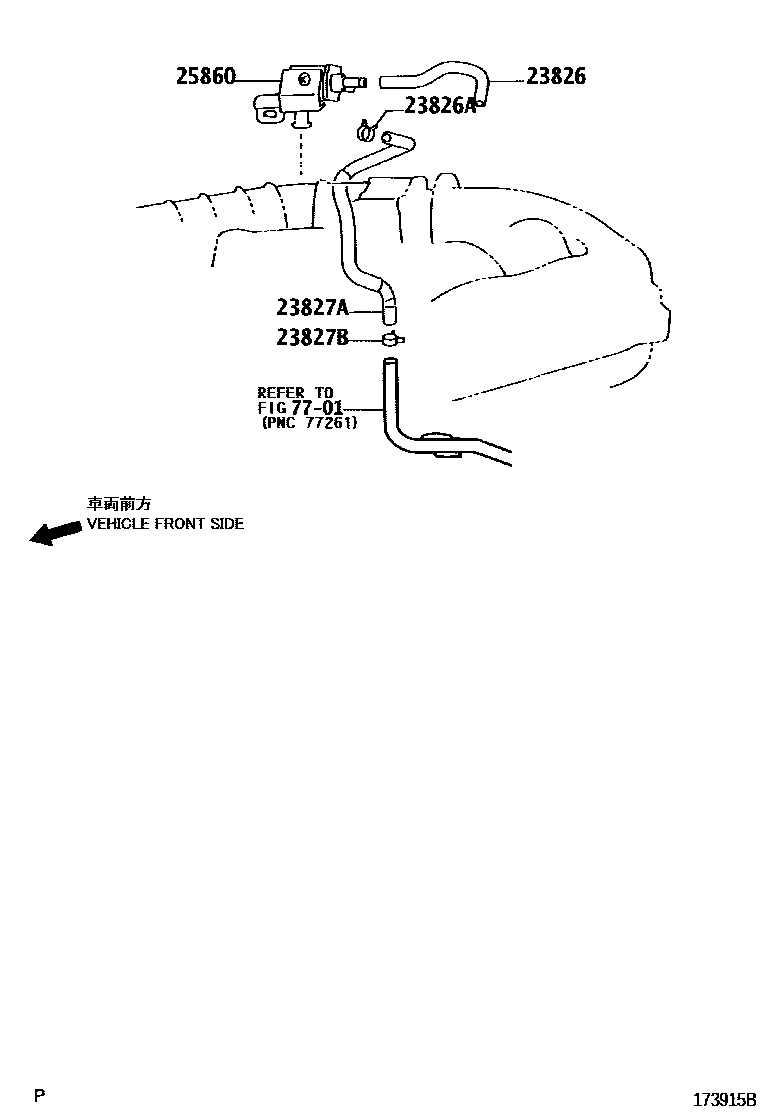

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31020i3GRFSE,4GRFSE..GRS18#200312-200509

main23826-31030i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

main23826-50030i3UZFE..UZS18#200406-200606

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i3GRFSE,4GRFSE..GRS18#200312-200802

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31010i3GRFSE,4GRFSE..GRS18#200312-200411

main23827-31020i2GRFSE..GRS184200509-200802

sub23827-31100

main23827-31041i3GRFSE,4GRFSE..GRS18#200411-200509

main23827-31110i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

main23827-50160i3UZFE..UZS18#200406-200812

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-41500i3GRFSE,4GRFSE..GRS18#200312-200812

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31040i3GRFSE,4GRFSE..GRS18#200312-200509

main25860-31060i2GRFSE..GRS184200509-200802

main25860-50160i3GRFSE,4GRFSE..GRS180,181,182,183200509-200802

7701

6 parts on this diagram · 4 diagrams in section
