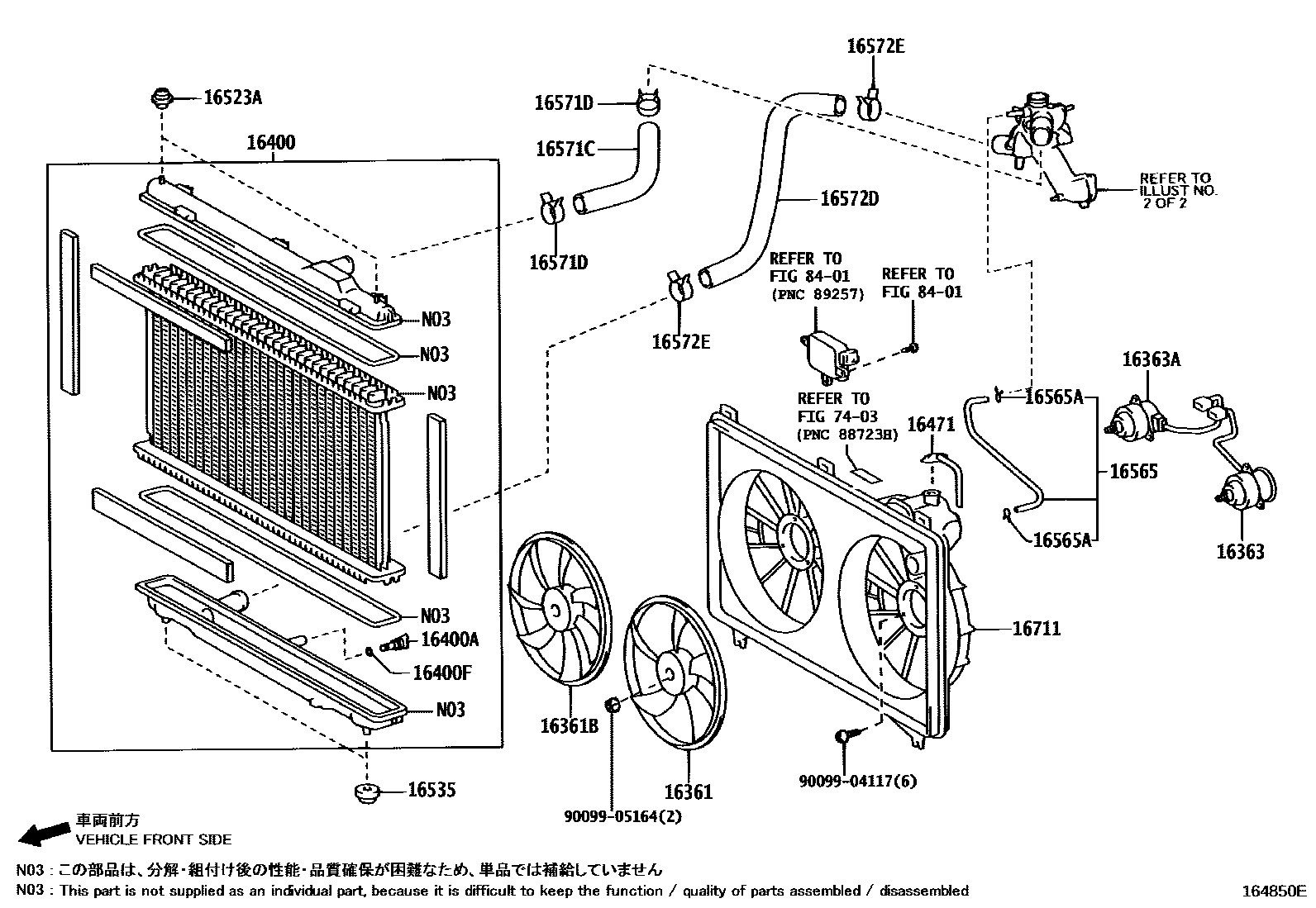

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400FPACKING(FOR RADIATOR DRAIN COCK)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16565HOSE, RESERVE TANK INLET
16565ACLIP
16571HOSE, RADIATOR, INLET
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
sub16572-31380
16572ECLIP, RADIATOR HOSE, NO.2
16711SHROUD, FAN
7403
8401
9009904117
main90099-04117
9009905164
main90099-05164
23 parts on this diagram · 5 diagrams in section
