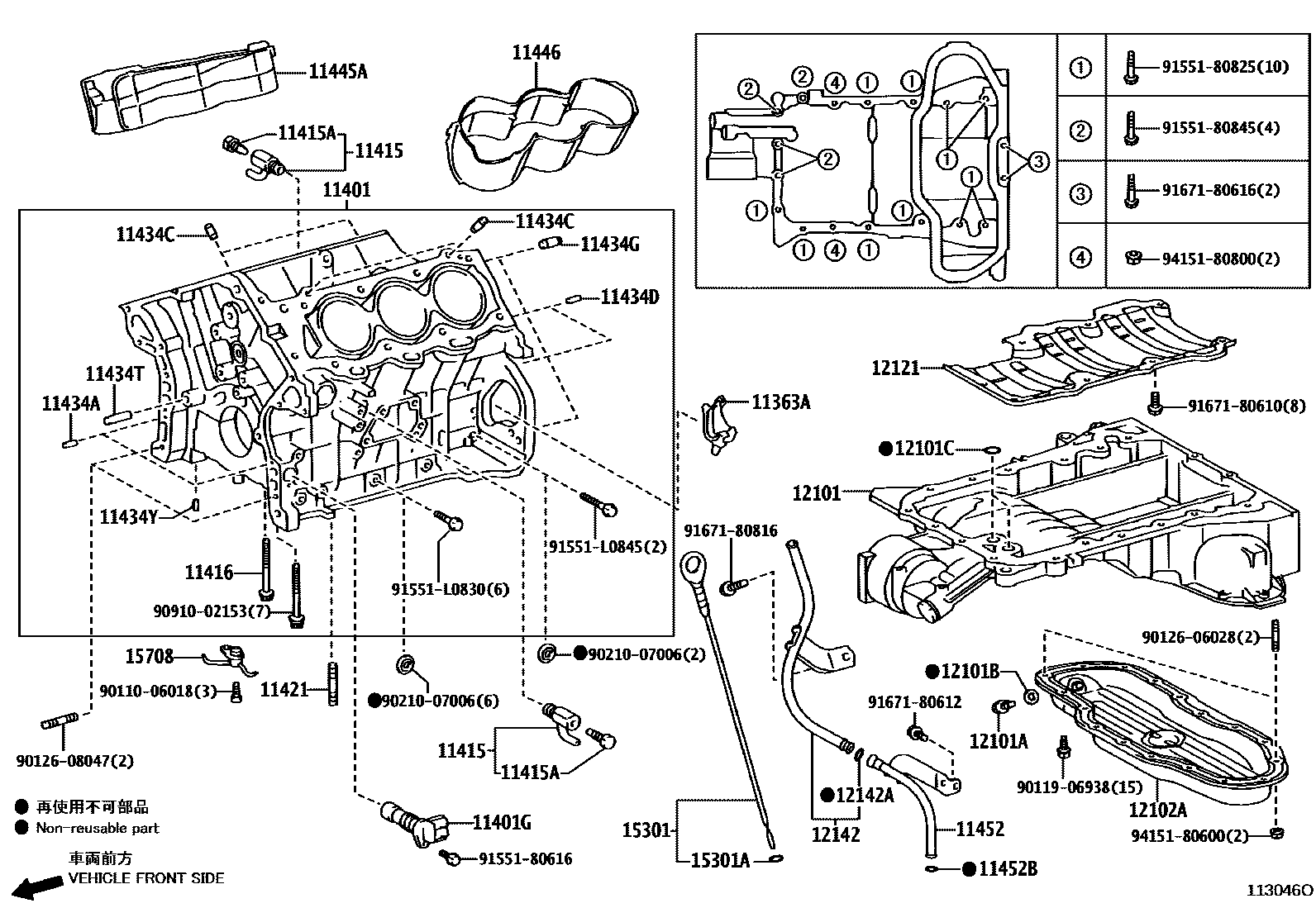

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31010i3GRFSE,4GRFSE..GRS18#200312-200802

sub11363-31030

11401BLOCK SUB-ASSY, CYLINDER

main11401-39775i2GRFSE..GRS184200509-200802

sub11401-39776

main11401-59735i3UZFE..UZS186200606

main11401-59805i3UZFE..UZS187200406-200606

main11401-80703i3UZFE..UZS186200406-200606

sub11401-59735

main11401-80706i3GRFSE..GRS182,183200312-200501

sub11401-80755

main11401-80710i4GRFSE..GRS180,181200312-200501

sub11401-80758

main11401-80755i3GRFSE..GRS182,183200501-200802

sub11401-80816

main11401-80758i4GRFSE..GRS180,181200501-200802

sub11401-80810

11401GSENSOR, CRANK POSITION

main90919-05057i3GRFSE,4GRFSE..GRS18#200312-200802

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i3UZFE..UZS18#200406-200606

main90910-09125i3GRFSE..GRS182,183200312-200503

sub90910-09129

main90910-09129i3GRFSE..GRS182,183200412-200802

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i3GRFSE,4GRFSE..GRS18#200312-200802

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i3GRFSE,4GRFSE..GRS18#200312-200802

11421BOLT, STUD(FOR OIL PAN)

main90116-06098i3UZFE..UZS186200406-200812

main90126-08030i3UZFE..UZS186200406-200812

main90126-08033i3UZFE..UZS187200406-200812

main90126-08039i3UZFE..UZS18#200406-200812

main90126-08051i2GRFSE,3GRFSE,4GRFSE..GRS18#200312-200802

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GRFSE,3GRFSE,4GRFSE..GRS18#200312-200802

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2GRFSE,3GRFSE,4GRFSE..GRS18#200312-200802

main90253-16001i3UZFE..UZS18#200406-200606

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-04097i3GRFSE,4GRFSE..GRS18#200312-200802

main90250-06003i3UZFE..UZS18#200406-200606

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i3GRFSE,4GRFSE..GRS18#200312-200802

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i3GRFSE,4GRFSE..GRS18#200312-200802

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097i3GRFSE,4GRFSE..GRS18#200312-200802

11445ASPACER, CYLINDER BLOCK WATER JACKET, RH

main11445-31010i3GRFSE..GRS182,183200312-200802

main11445-31020i4GRFSE..GRS180,181200312-200802

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-31010i3GRFSE..GRS182,183200312-200802

main11446-31020i4GRFSE..GRS180,181200312-200802

11452GUIDE, OIL LEVEL GAGE

main11452-31040i2GRFSE,3GRFSE,4GRFSE..GRS180,182,184200312-200802

main11452-31050i3GRFSE,4GRFSE..GRS181,183200312-200802

main11452-50170i3UZFE..UZS186200406-200606

main11452-50180i3UZFE..UZS187200406-200606

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFSE,3GRFSE,4GRFSE..GRS18#200312-200802

main96721-19010i3UZFE..UZS18#200406-200606

12101PAN SUB-ASSY, OIL

main12101-31100i3GRFSE,4GRFSE..GRS180,182200312-200509

sub12101-31101

main12101-31101i2GRFSE,3GRFSE,4GRFSE..GRS180,182,184200509-200802

main12101-31110i3GRFSE,4GRFSE..GRS181,183200312-200802

main12101-50030i3UZFE..UZS187200406-200606

main12111-50150i3UZFE..UZS186200406-200410

main12111-50170i3UZFE..UZS186200410-200606

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GRFSE,3GRFSE,4GRFSE..GRS18#200312-200802

main90341-12023i3UZFE..UZS18#200406-200606

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3UZFE..UZS18#200312-200802

12101CRING, O(FOR OIL PAN)

main12151-31010i3GRFSE,4GRFSE..GRS18#200312-200802

12102APAN SUB-ASSY, OIL, NO.2

main12102-31030i2GRFSE,3GRFSE,4GRFSE..GRS180,182,184200312-200802

main12102-31040i3GRFSE,4GRFSE..GRS181,183200312-200802

main12102-50150i3UZFE..UZS186200406-200606

main12102-50160i3UZFE..UZS187200406-200606

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31060i4GRFSE..GRS180,181200312-200802

main12121-31080i2GRFSE,3GRFSE..GRS182,183,184200506-200802

main12121-50200i3UZFE..UZS186200406-200606

main12121-50210i3UZFE..UZS187200406-200606

12142GUIDE, OIL LEVEL GAGE, NO.2

main12142-31010i3GRFSE,4GRFSE..GRS180,182200312-200802

main12142-31020i3GRFSE,4GRFSE..GRS181,183200312-200802

12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)

main96721-19010i3GRFSE,4GRFSE..GRS18#200312-200802

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31070i3GRFSE,4GRFSE..GRS181,183200312-200802

main15301-31080i2GRFSE,3GRFSE,4GRFSE..GRS180,182,184200312-200802

main15301-50130i3UZFE..UZS186200406-200606

main15301-50140i3UZFE..UZS187200406-200606

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i3GRFSE,4GRFSE..GRS18#200312-200802

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31010i3GRFSE,4GRFSE..GRS18#200312-200802

main15708-31040i2GRFSE..GRS184200509-200802

sub15708-31030

9011006018

main90110-06018

9011906938

main90119-06938

9012606028

main90126-06028

9012608047

main90126-08047

9021007006

main90210-07006

9091002153

main90910-02153

9155180616

main91551-80616

9155180825

main91551-80825

9155180845

main91551-80845

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167180610

main91671-80610

9167180612

main91671-80612

9167180616

main91671-80616

9167180816

main91671-80816

9415180600

main94151-80600

9415180800

main94151-80800

45 parts on this diagram · 4 diagrams in section
