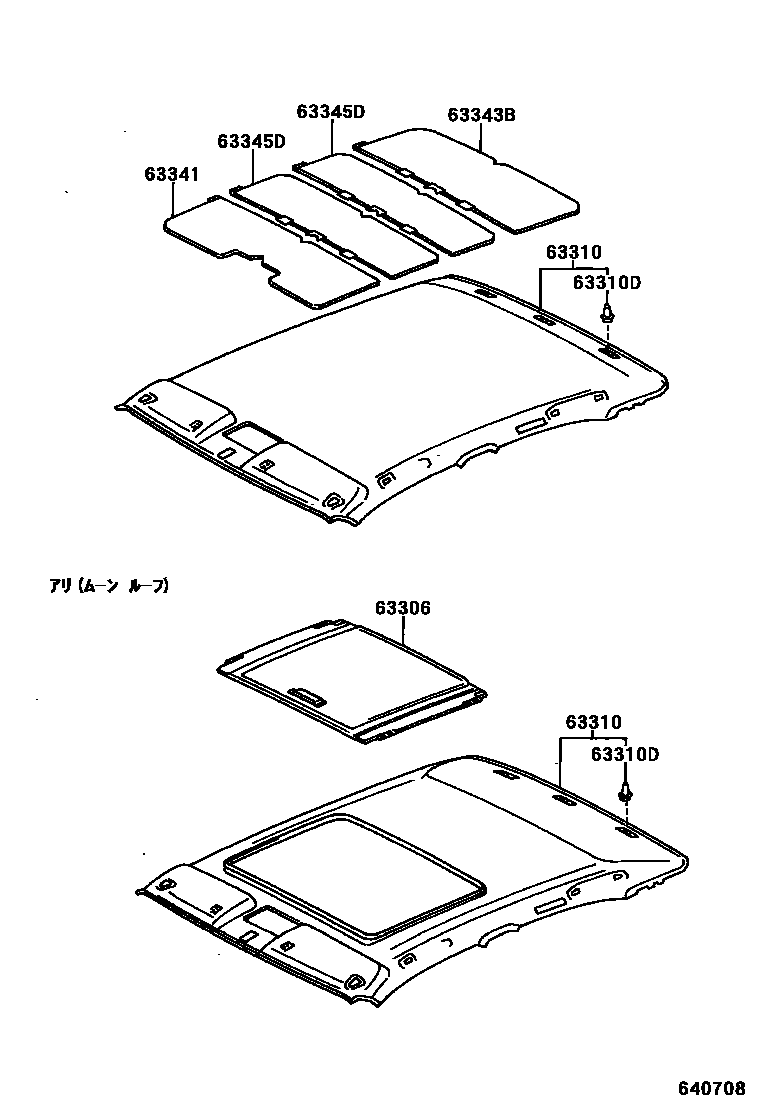

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-30080-A1iGS171,JKS175,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG199909-200309

IVORY,TRIM0#

sub63306-30081

sub63306-30080

main63306-30080-B5iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV199909-200309

MEDIUM CHACOAL,TRIM1#

sub63306-30081

sub63306-30080

main63306-30080-B5iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200108-200309

MEDIUM CHACOAL,TRIM2#

sub63306-30081

sub63306-30080

main63306-30081-A1iGS171,JKS175,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG200309-200706

IVORY,TRIM0#

sub63306-30081

main63306-30081-B5iGS171,JZS171,173,175..ATH,ATHE,ATHG,ATHV200309-200706

MEDIUM CHACOAL,TRIM2#

sub63306-30081

main63306-30081-B5iJKS175,JZS171,175,179..ROY200309-200312

MEDIUM CHACOAL,TRIM1#

sub63306-30081

main63306-30100-A0iJZS177,UZS17#199909-200406

IVORY,TRIM0#

main63306-30100-A0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main63306-30100-B0iJZS177,UZS17#199909-200406

MEDIUM CHARCOAL,TRIM1#

main63306-30100-B0iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),MEDIUM CHARCOAL,TRIM23

63310HEADLINING ASSY, ROOF

main63310-30850-A0iGS171,JZS171,173,175,179..SED199909-200108

main63310-30850-B0iGS171,JZS171,173,175,179..SED199909-200108

main63310-30860-A0iGS171,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)199909-200108

IVORY,TRIM0#

sub63310-30860

main63310-30860-B0iGS171,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)199909-200108

MEDIUM CHACOAL,TRIM1#

sub63310-30860

main63310-30870-A0iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG)199909-200108

main63310-30870-B0iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG)199909-200108

main63310-30880-A0iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY)199909-200108

main63310-30880-B0iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY)199909-200108

main63310-30890-A0iJZS177,UZS17#199909-200108

sub63310-30890

main63310-30890-B0iJZS177,UZS17#199909-200108

sub63310-30890

main63310-31070-A0iJZS171,173,175..WG199912-200108

IVORY,TRIM0#

main63310-31070-B0iJZS171,173,175..WG199912-200108

MEDIUM CHACOAL,TRIM1#

main63310-31080-A0iJZS171,173,175..WG199912-200108

main63310-31080-B0iJZS171,173,175..WG199912-200108

main63310-31090-A0iGS171,JZS171,173,175..WG200108-200706

IVORY,TRIM0#

main63310-31090-B0iGS171,JZS171,173,175..WG200108-200706

MEDIUM CHACOAL,TRIM2#

main63310-31100-A0iGS171,JZS171,173,175..WG200108-200706

main63310-31100-B0iGS171,JZS171,173,175..WG200108-200706

main63310-3A010-A0iJZS177,UZS175..A199909-200108

IVORY,TRIM0#

main63310-3A010-B0iJZS177,UZS175..A199909-200108

MEDIUM CHARCOAL,TRIM1#

main63310-3A020-A0iJZS177,UZS17#199909-200108

main63310-3A020-B0iJZS177,UZS17#199909-200108

main63310-3A030-A0iJZS177,UZS175..A199909-200108

main63310-3A030-B0iJZS177,UZS175..A199909-200108

main63310-3A090-A0iGS171,JZS171,173,175,179..SED200108-200312

main63310-3A090-B0iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

main63310-3A090-B0iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

main63310-3A100-A0iGS171,JKS175,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX)200108-200312

IVORY,TRIM0#

main63310-3A100-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX200108-200312

MEDIUM CHACOAL,TRIM1#

main63310-3A100-B0iGS171,JKS175,JZS171,173,175,179..ROY,ROYEX200108-200312

MEDIUM CHACOAL,TRIM2#

main63310-3A110-A1iJZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG)200108-200312

main63310-3A110-B1iJZS171,175,179..ROY,ROYG200108-200312

main63310-3A110-B1iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

main63310-3A120-A1iJKS175,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY)200108-200312

main63310-3A120-B1iJKS175,JZS171,175,179..ROY200108-200312

main63310-3A120-B1iJZS171,173,175..SED..(ATH,ATHG,ATHV)200108-200312

main63310-3A130-A1iJZS177,UZS17#200108-200406

main63310-3A130-A1iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06

main63310-3A130-B1iJZS177,UZS171,173..C200202-200207

10TH ANNIVERSARY EDITION *(A),MEDIUM CHARCOAL,TRIM23

main63310-3A130-B1iJZS177,UZS17#200108-200406

main63310-3A140-A1iJZS177,UZS175..A200108-200406

IVORY,TRIM0#

main63310-3A140-B1iJZS177,UZS175..A200108-200406

MEDIUM CHARCOAL,TRIM1#

main63310-3A150-A1iJZS177,UZS17#200108-200406

main63310-3A150-A1iJZS177,UZS171,173..C200202-200207

main63310-3A150-B1iJZS177,UZS171,173..C200202-200207

main63310-3A150-B1iJZS177,UZS17#200108-200406

main63310-3A160-A1iJZS177,UZS175..A200108-200406

main63310-3A160-B1iJZS177,UZS175..A200108-200406

63310DCLIP, ROOF HEADLINING

main90467-08186-C0iJZS171,173,175..WG199912-200108

BLACK,TRIM0#,1#

sub90467-08186

main90467-08186-C0iGS171,JZS171,173,175..WG200108

BLACK,TRIM0#,2#

sub90467-08186

main90467-09126iGS171,JZS17#,UZS17#..SED199909-200406

63341PAD, ROOF SILENCER, NO.1

main63341-30190iGS171,JZS17#,UZS17#..SED199909-200406

63343BPAD, ROOF SILENCER, REAR

main63343-30220iGS171,JZS17#,UZS17#..SED199909-200406

63345DPAD, ROOF SILENCER, CENTER

main63345-30120iGS171,JZS171..WG..4FC199912-200312

main63345-30120iGS171,JZS17#,UZS17#..SED199909-200406

6 parts on this diagram · 2 diagrams in section
