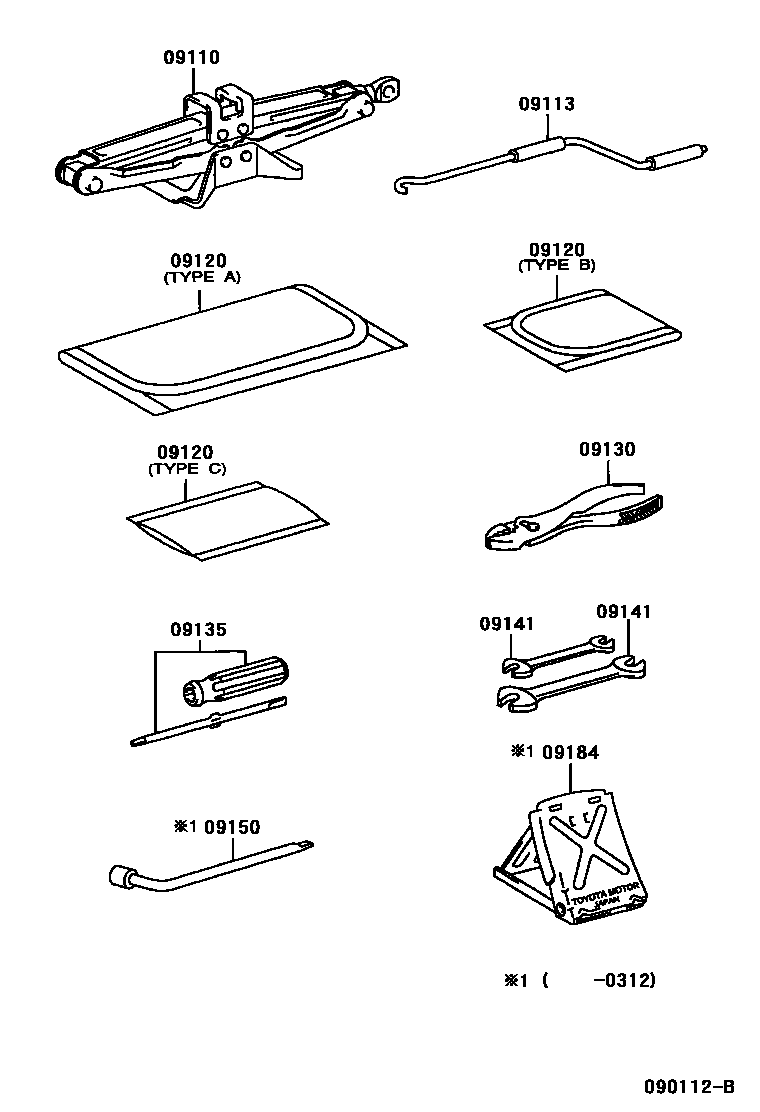

STANDARD TOOL

09110JACK ASSY

main09111-30120iGS171,JZS17#,UZS17#199909-200108

main09111-50050iJZS177,UZS17#200108-200112

main09111-50051iJZS177,UZS17#200112

sub09111-76011

09113HANDLE, JACK

main09113-22020iGS171,JZS17#,UZS17#199909-200108

09120BAG, TOOL

main09120-24010iJZS171..ROY;GS171,JZS175,177,179..SED..(A,ROY,ROYEX)199909-200108

main09120-24020iJZS171,173..WG..ATH;JKS175,JZS171,175,179,UZS171..C,ROY200108

main09120-28040iGS171,JKS175,JZS17#,UZS17#200108

09130PLIERS

main99913-11500iJZS171,173,175..WG..(D4,TWC)200108

09135DRIVER, SCREW

main99915-10700iGS171,JZS17#,UZS17#199909-200108

09141SPANNER

main99914-10810iGS171,JZS17#,UZS17#199909-200108

main99914-11214iGS171,JZS17#,UZS17#199909-200108

09150WRENCH, HUB NUT BOX

main09150-40010iGS171,JZS17#,UZS17#199909-200108

09184STOPPER, WHEEL

main09184-00010iGS171,JKS175,JZS17#,UZS17#200108-200706

8 parts on this diagram · 1 diagram in section
